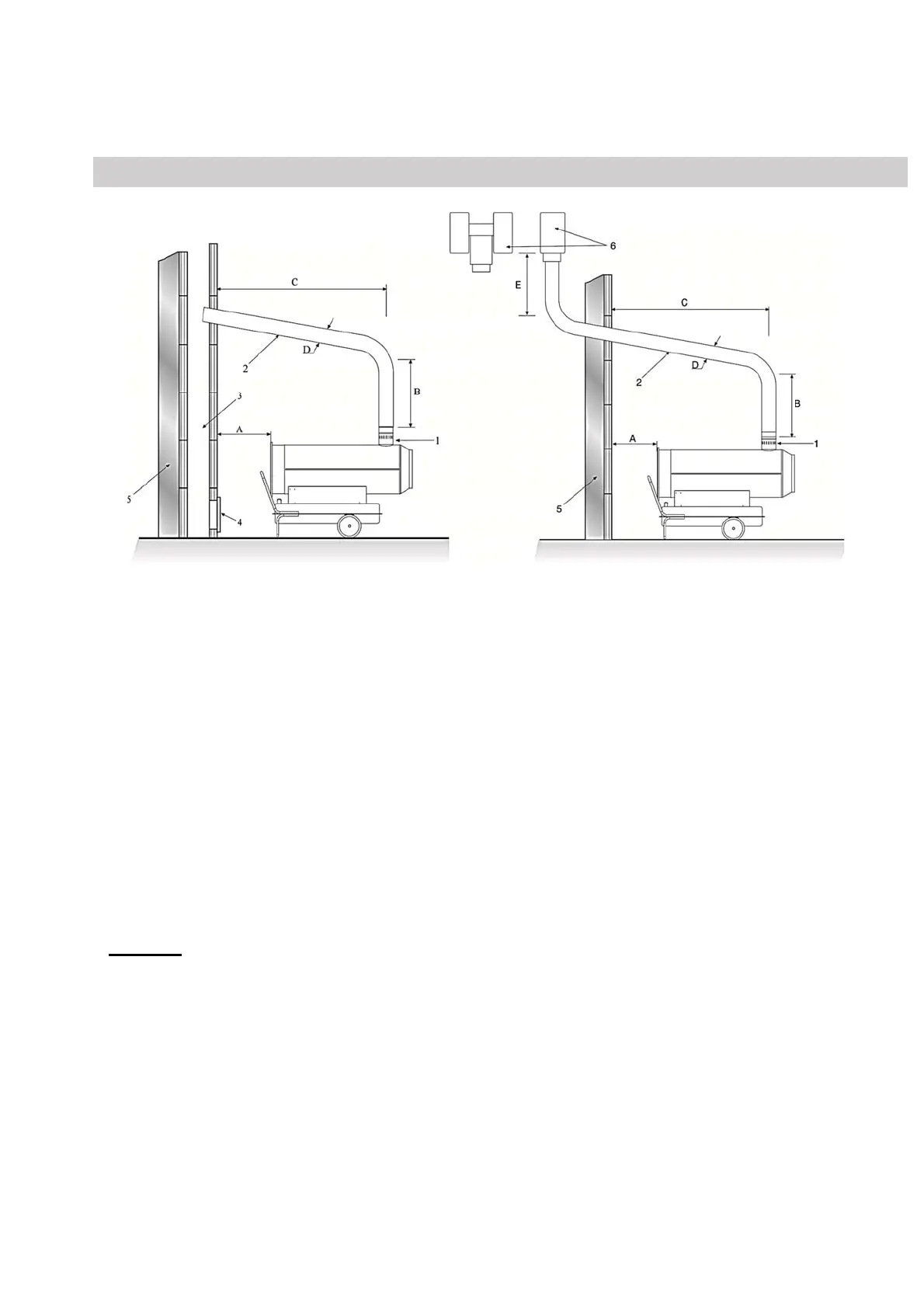

RECOMMENDED CHIMNEY LAY-OUT
DESCRIPTION
A) Minimum 1 m
B) Minimum 1 m
C) As short as possible
D) Greater than or equal to diameter of heater smoke outlet
E) Minimum 1 m
1) Anti-wind device provided with heater
2) Horizontal crossing with 5° minimum upward slope
3) Chimney with minimum internal dimensions 20 x 20 cm
4) Chimney anti-explosion inspection door
5) External buffer wall
6) Chimney draught H shape
N.B. The above recommendations are approximate. The chimney installation must comply with
local regulations.
Attention: the anti-wind device (3) MUST be positioned as shown in the drawings on the
left. Otherwise, the heater may not work or may present serious combustion problems.
