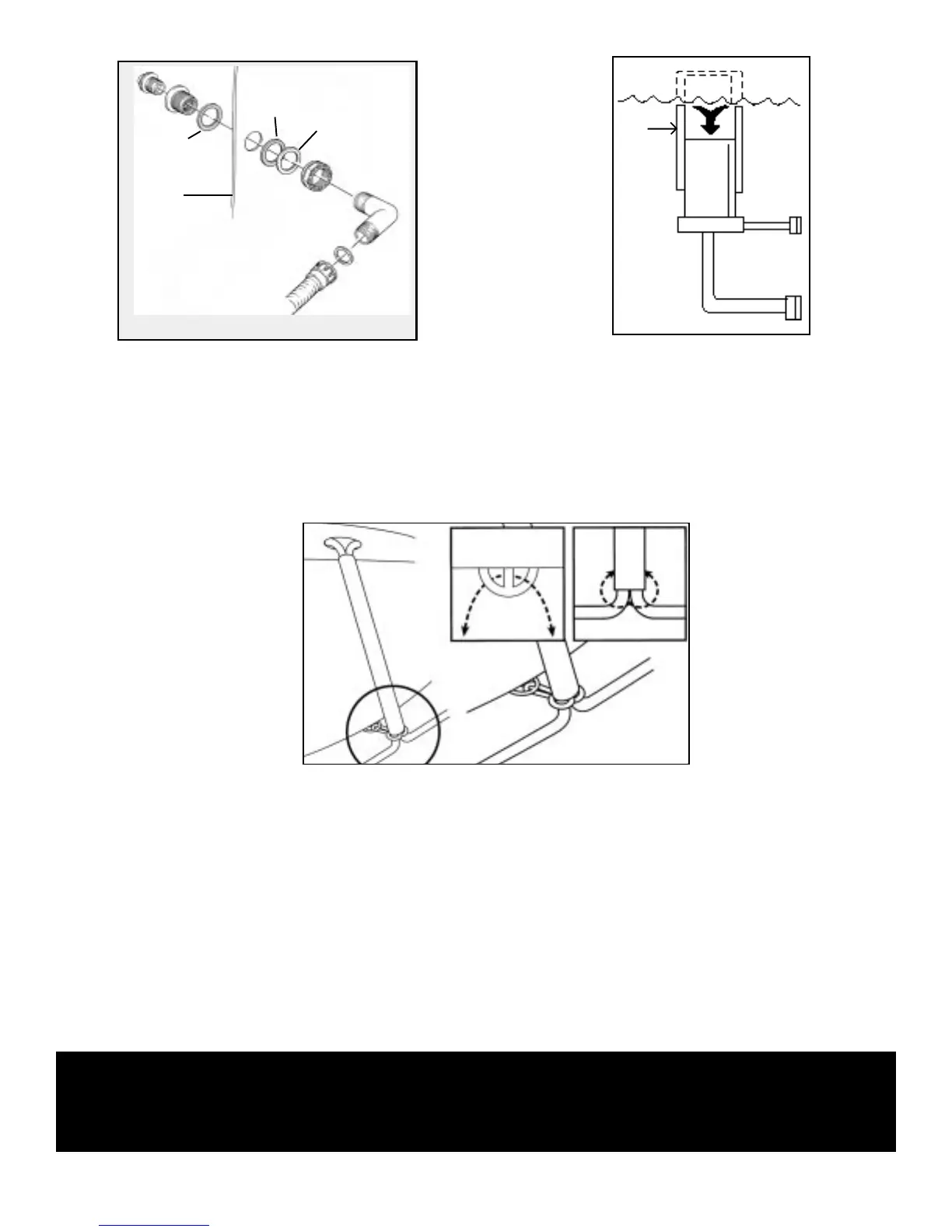

5. Attach the Wall Fittings on the pool (See Figure 5A). Put one Rubber Gasket on the inside of the pool and a
Rubber Gasket and Paper Gasket on the outside. Attach the bottom fitting (on the hose at the bottom of the
skimmer) to the bottom Wall Fitting. Attach the top hose on the Skimmer to the support fitting. Insert the return
Wall Fitting into the pool and screw the return Eyeball Fitting (N) into it. Slide the Floating Skimmer Weir (H)
onto the top of the Skimmer (See Figure 5B).
WARNING: Strong suction! Never lay on or insert
body parts into skimmer while pump is operating.
6. Place one Clear Elastic PVC Hose (D) by each upright Tube (C). Insert Connecting Pin (E) in one end of the
Hose. Thread the Hose through the base attachment on the outside at the bottom of the pool. (See Figure 6)
Thread the Hose between the base Tubes and back around both sides of the Tubes. Connect together with
Connecting Pin, making sure the Hose is on the inside of the Tubes closest to the pool. Check to insure all
wrinkles are removed. (It may be necessary to pull the Elastic Hose to take out a wrinkle.) After pool has been
filled with water, remove the Elastic Hose and save for future use.
