7

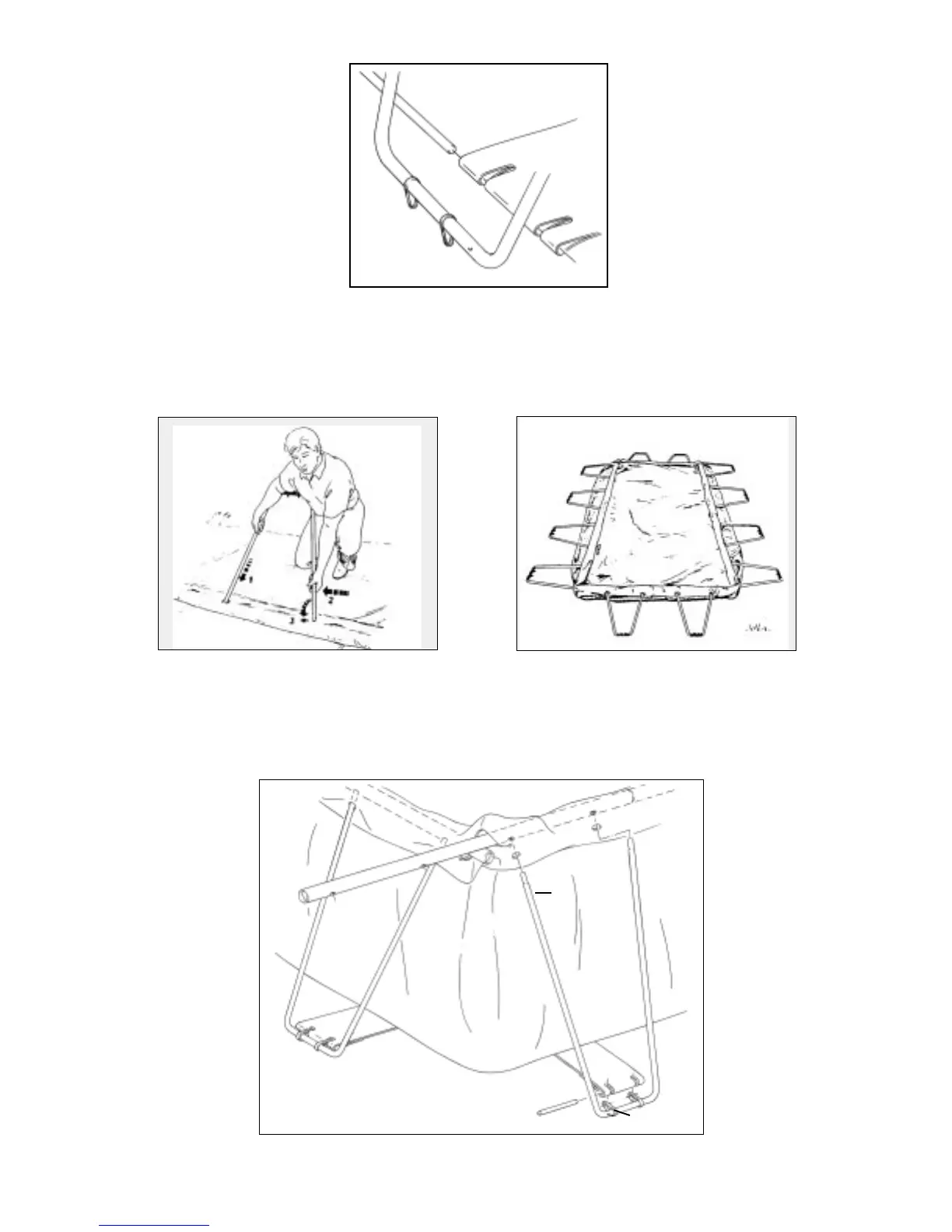

4. Insert the Leg into the Top Rail as in Item 2A, spreading the Leg apart until it slides into the holes. When all the
buttresses are inserted, the pool will look like Item 2B. Finally, connect Leg with Connecting Pin to the pool
buttress strap as in Item 3.
3.
Above is an illustration of the assembly of the Splash SuperPool Legs. Slide the two Stainless Steel Rings onto the
Leg. Continue this process until you have assembled all the Buttress Legs.
Item 2A Item 2B
D
F
Item 3
©
2003-Splash Superpools Ltd.
