Splendide AS66VX - Front Panel & Air Duct; Energy Save Thermostats

Dismantling Instructions
11

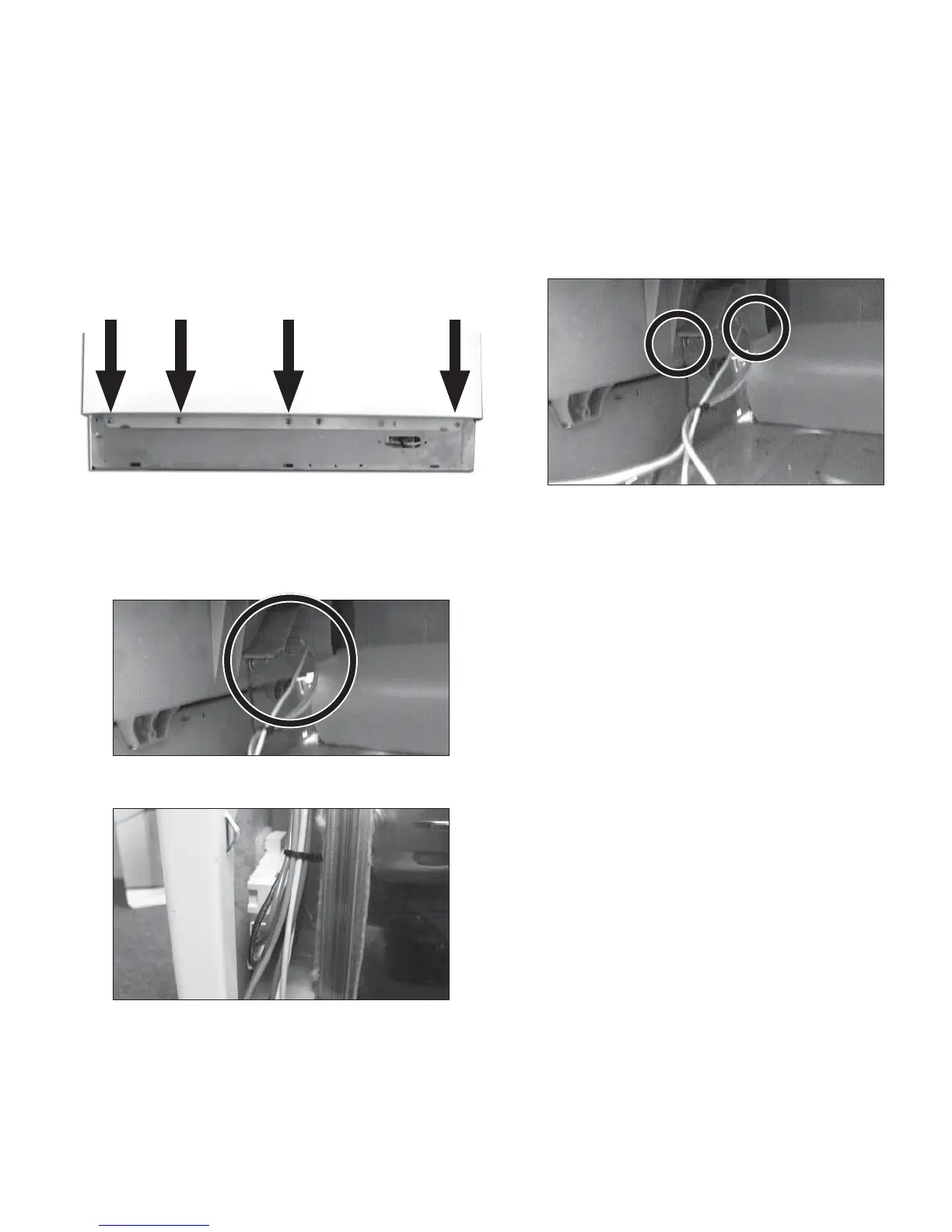

G. FRONT PANEL & AIR DUCT
Remove the top cover as in (A).
Remove the complete control panel as in
(B7).
Remove the lower panel as in (F2).
Remove the 4 screws securing the front
panel to the base panel.
Disconnect the wiring to the air duct
thermostat(s).
Disconnect the wiring to the door switch.
Remove the 2 screws securing the left
side panel to the front panel(refer to side
panel removal).
1.
2.
3.
4.
5.
6.
7.
H. ENERGY SAVE THERMOSTATS
1. Remove the right hand side panel as in (F)
above, or the front panel as in (G)
2. Disconnect the thermostat wiring and re-
move the 2 screws fi xing the thermostat(s)
to the air duct.
