Dismantling Instructions
14

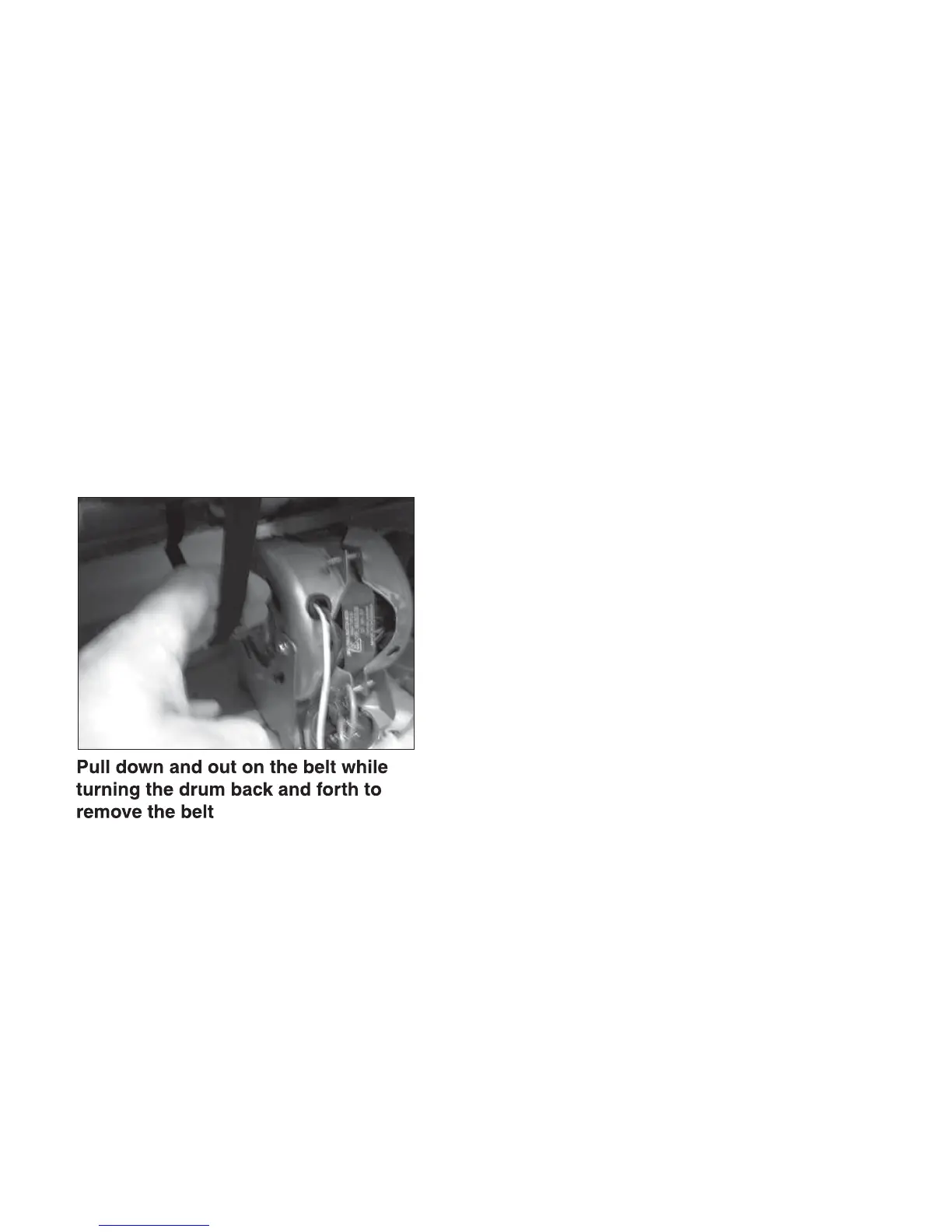

N. DRIVE BELT REMOVAL
(IF NOT BROKEN)
1. Remove the right hand side panel as in (E).
2. Slide the belt off the drum and pass be-
tween the drum front
and the front panel.
DRIVE BELT REPLACEMENT
1. Slide the new belt between the drum front
and the front panel and slide the belt onto
the drum.
2. Stretch the belt onto the motor shaft by
pressing down with both hands.
NOTE: You can pre stretch the belt by
putting both feet in the belt and pulling
up with steady pressure then rotating
the belt while stopping every few inches
to stretch it.
O. CAPACITOR
NOTE: Ensure the capacitor is discharged
completely before proceeding.
1. Remove the right hand side panel as in (F)
2. Note the wiring connections and disconnect
the leads from the capacitor terminals.
3. Carefully lay the unit on its back and
remove the nut securing the capacitor to
the bottom panel.
