Dismantling Instructions
12
I. DOOR SWITCH
1. Remove the top cover as in (A).
2. Remove the right hand side panel as in (F).
3. Disconnect the wiring to the switch.

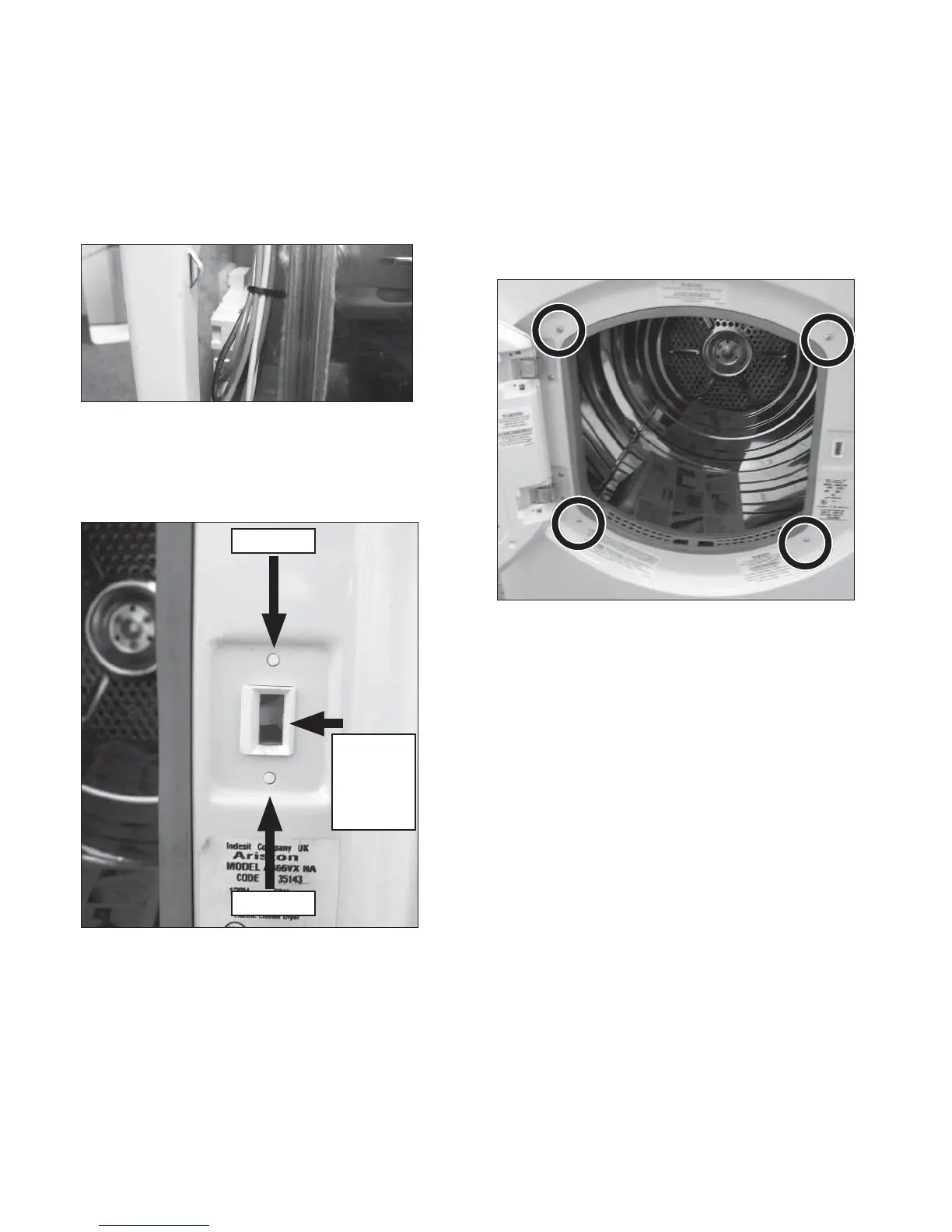

4. Using a screwdriver, push the plastic lugs
on the door switch in gently, while sliding
the switch towards the door seal to disen-
gage it from the front panel.
J. DOOR SEAL
1. Remove the front panel and air duct as in
(G).
2. Remove the 4 screws securing the air duct
to the front panel, and separate the air duct
from the front panel.
3. The door seal can now be removed from
the front panel.
4. Installation is the reverse of removal.
PUSH
PUSH
SLIDE
TOWARDS
SEAL
