7、Installation

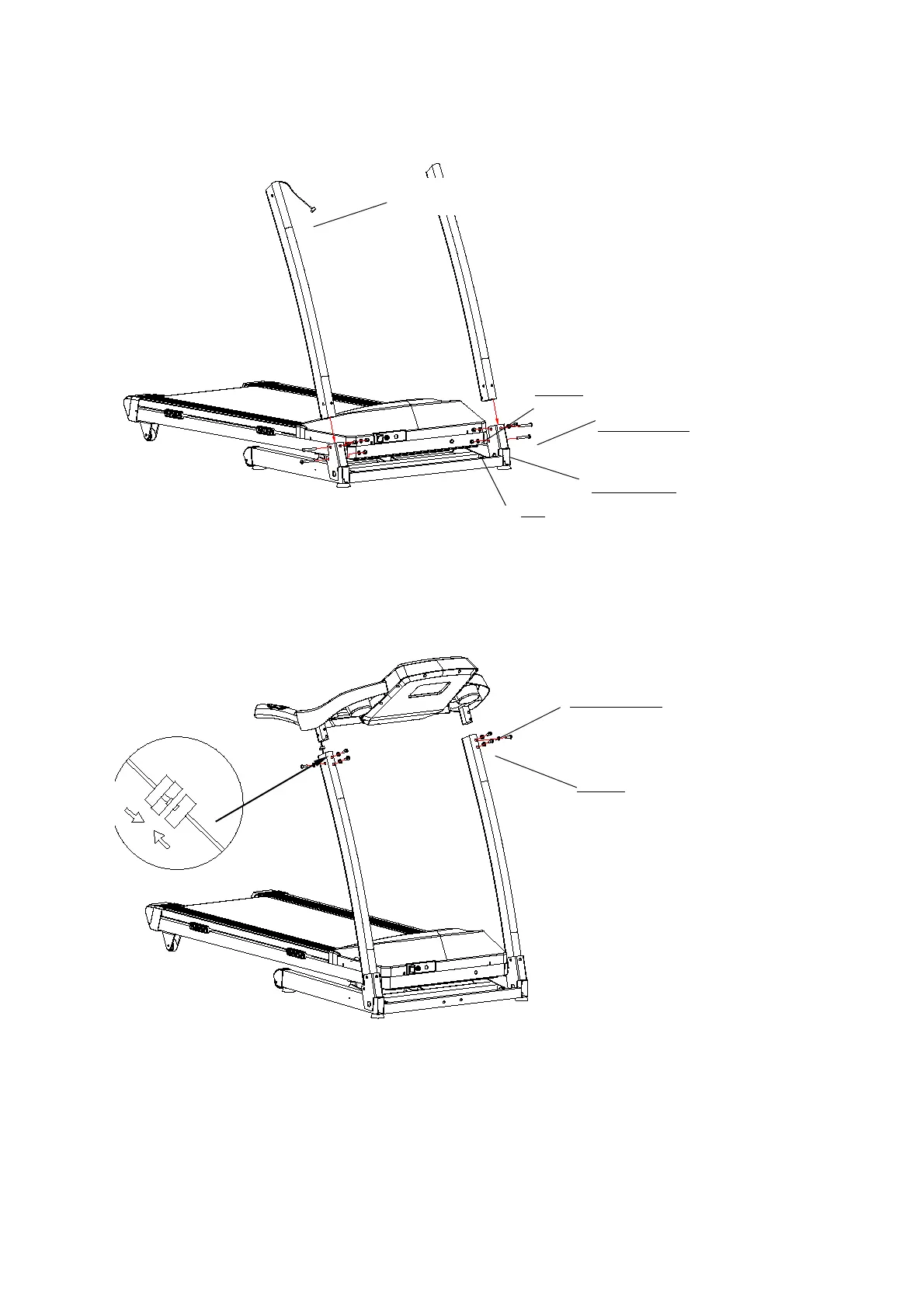

Step 1: Install meter pillars
a) Let the communication line pass through the right meter pillar.
b) Put meter pillars on the base frame. First, use 2 Screw M8*15 and 2 washers; second, use 4 Screw M8*50, 4
washers and 4 nuts to fasten meter pillars. (Don’t tighten screws at first)
Step 2: Install the meter
a) Make sure that communication lines are connected correctly
b) Put the meter on the meter pillars. Use 6 Screw M8*15 and 6 washers to fasten the meter. (Don’t tighten
screws at first)
Screw M8x15
Washer
Screw M8x50
Nut
Screw M8x15
Washer
Communication line
To Next Page
