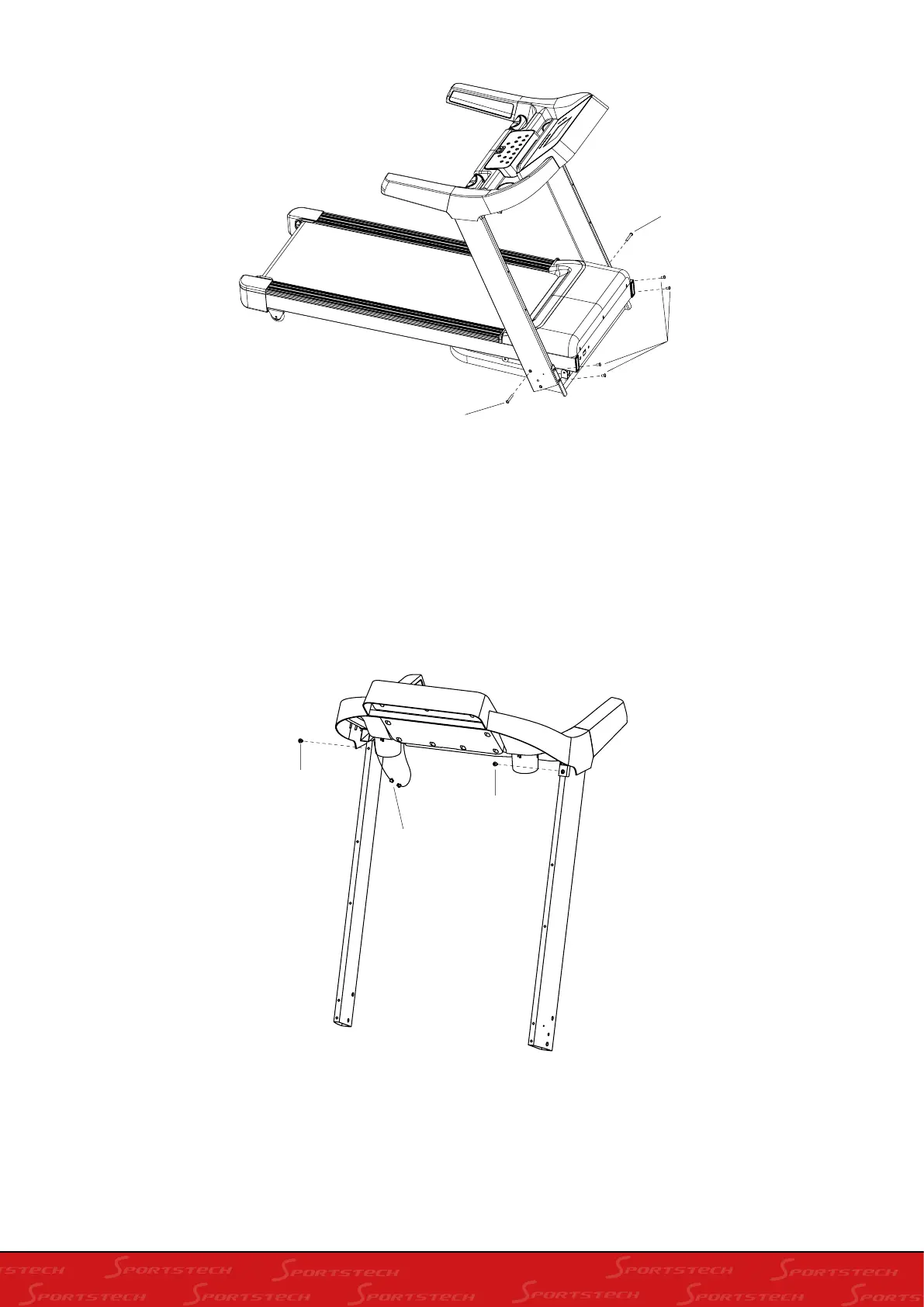

Step 1 Installing the upright frame
Upright and secure the upright frame into the stabilizer with Hex Bolt M8x50mm teeth 12mm (S2)
and Hex Bolt M8x16mm(S3) back sides.
Important: While assembly, it needs two persons to work together. One person holds the computer,
and the second tightens the bolts with the Allen Wrench (S1) provided.
Step 2 Installing the Computer
Connect the Signal Wire from the computer to the Signal Wire from the upright frame first . Then,
secure the computer into the upright frame with two Hex Bolt M8x16mm (S3) back sides. Tighten
the bolts with the Allen Wrench (S1) provided.
