844-E Sprayer Control
Connect Step 1 - Wiring Layout
Determine the best cable routing to the sprayer control components on the sprayer. This may be along the ow line, main frame of the sprayer, or
wherever the cables can be conveniently secured. Avoid any situation where the cables may lay in puddles, or come in contact with extreme heat
sources.
WARNING: System Components should be mounted at least 3 ft / 1 m from areas of excessive vibration (i.e. engines) to avoid high frequency
interference.

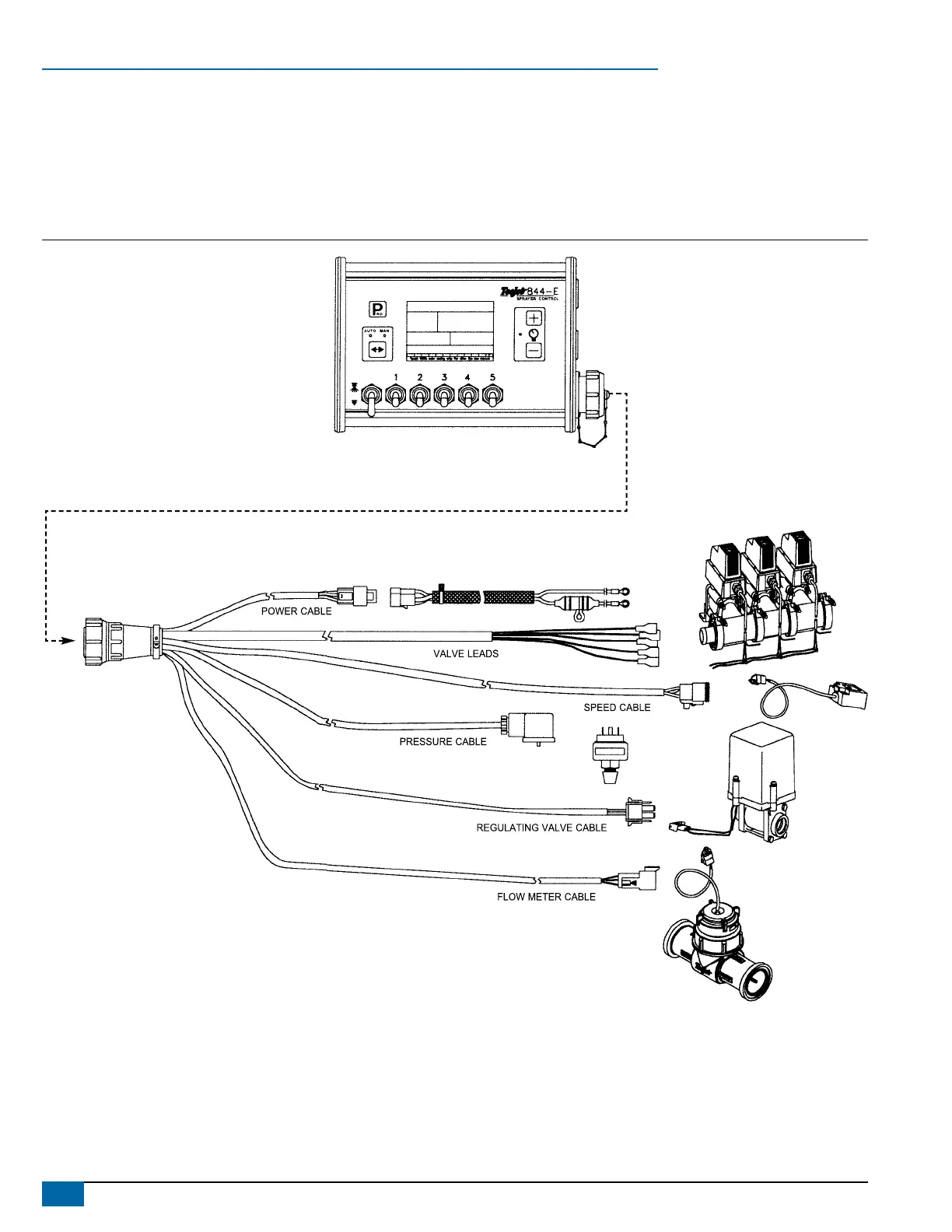

Figure 14: Wiring Layout
