SprayTECH 295001 - Drive Assembly; Dispositif de Entraînement; Conjunto del Impulsor

English
34 © SprayTECH. All rights reserved.
Français Español

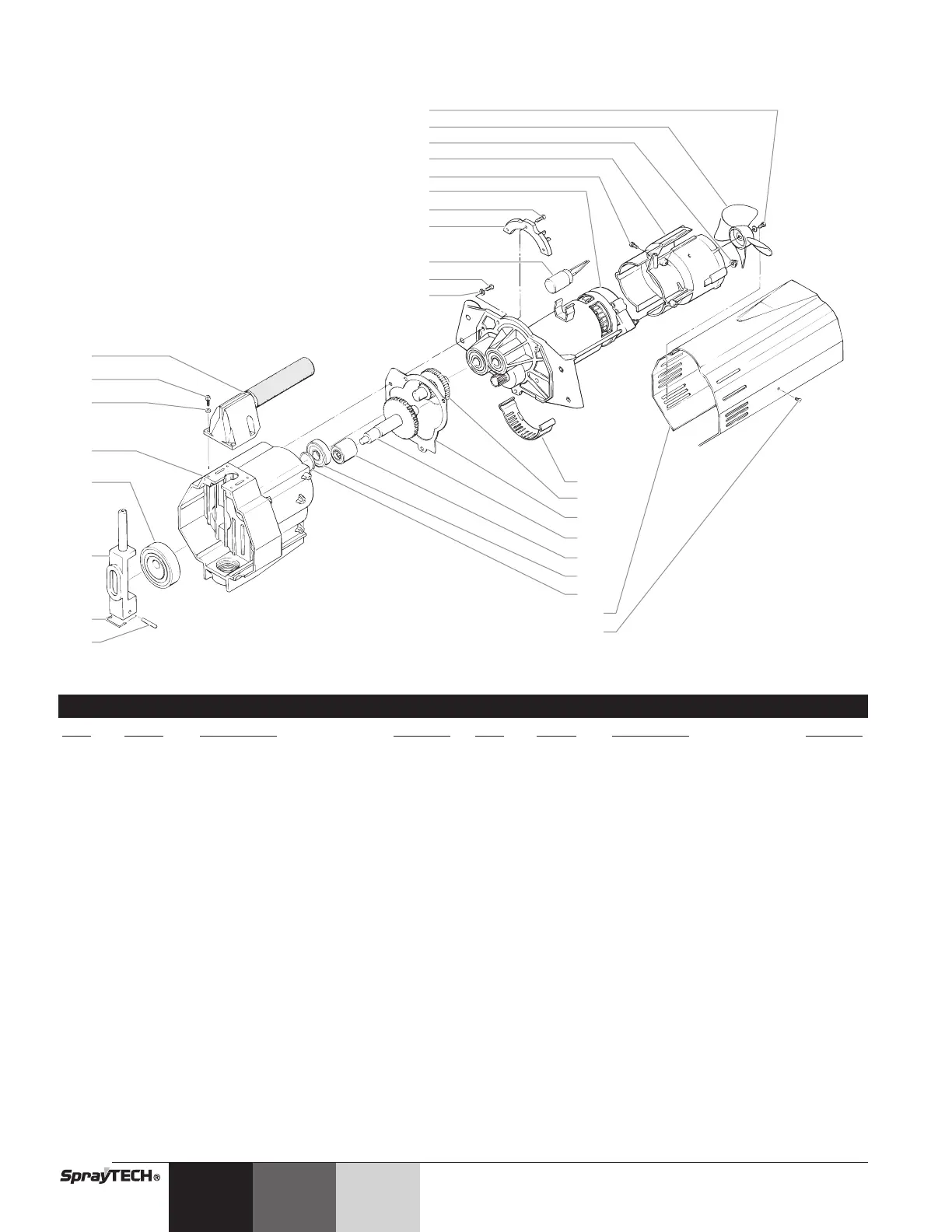

Drive Assembly • Dispositif de entraînement • Conjunto del impulsor
1
10
9
11
12
13
14
15
16
17
18
19
21
20
22
23
24
25
26
27
28
2
3
4
5
6
7
8
Item Part # Description Quantity
1 0295123 Handle with grip ....................................1
2 9800339 Screw ....................................................4
3 9821515 Lock washer..........................................4
4 0295301 Housing .................................................1
5 0295122 Eccentric assembly ...............................1
6 0295324 Yoke ......................................................1
7 0295352 Retaining clip.........................................1
8 0294302 Pin .........................................................1
9 9804916 Screw ....................................................1
10 0295728 Fan ........................................................1
11 9811121 Jam nut .................................................2
12 0295414 Fan shroud............................................2
13 9802891 Screw ....................................................2
14 0295975 Motor, DC (includes items 9–17) ..........1
15 9804925 Screw....................................................3
Item
Part # Description Quantity
16 ---------- Relay, 120 volt ......................................1
17 ---------- Capacitor...............................................1
18 9800341 Screw....................................................3
19 9820213 Washer..................................................3
20 0295435 Screen, motor .......................................1
21 0295331 Gear, first stage ....................................1
22 0295325 Housing gasket.....................................1
23 0295124 Output shaft assembly..........................1
24 9860418 Roller bearing .......................................1
25 9860417 Ball bearing...........................................3
26 0295335 Washer..................................................1
27 0295126 Shroud with labels ................................1
28 9802892 Screw....................................................3
29 0508979 Relay/capacitor kit
(includes items 15–17) .........................1
