SprayTECH 295001 - Spray Gun; Prime;Spray Valve Assembly; Pistolet; Valve Amorçage;Pulvérisation

English
38 © SprayTECH. All rights reserved.
Français Español

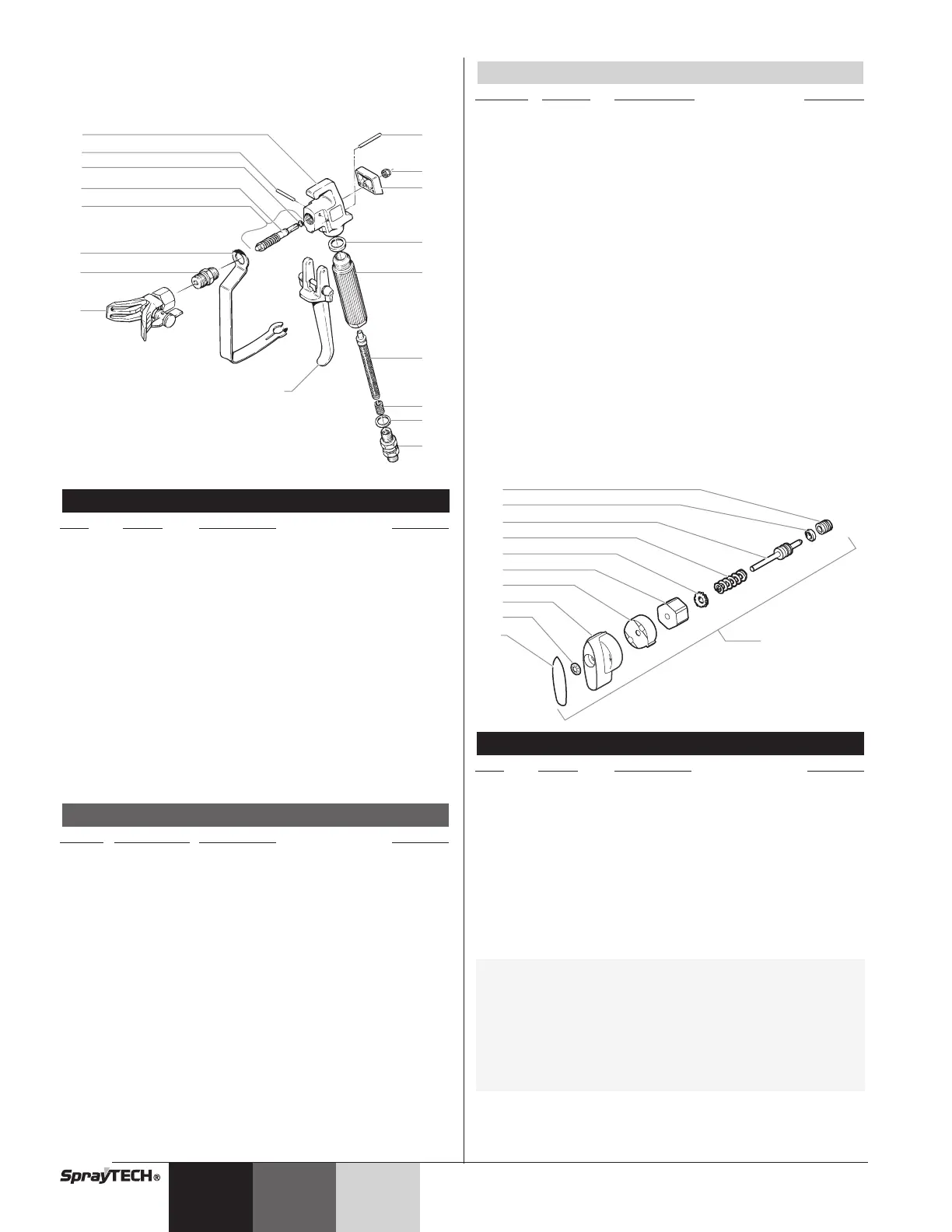

Spray Gun • Pistolet •
Pistola de atomización
Item Part # Description Quantity
1 ---------- Gun housing .........................................1
2 9930608 Pin.........................................................1
3 ---------- Snap ring ..............................................1
4 0043211 Packing .................................................1
5 0149700 Valve union assembly...........................1
6 0149319 Trigger guard ........................................1
7 0149342 Diffuser .................................................1
8 0297041 Tip 517 assembly..................................1
9 0508939 Sliding pin .............................................2
10 9910201 Hex nut .................................................1
11 0149352 Retainer block.......................................1
12 0043303 Washer..................................................1
13 0043301 Handle ..................................................1
14 ---------- Filter, white............................................1
15 0043590 Spring ...................................................1
16 0043260 Washer..................................................1
17 0347706 Swivel ...................................................1
18 0149211 Trigger assembly ..................................1
Article
Nº de pièce Description Quantité
1 ---------- Boîtier du pistolet ..................................1
2 9930608 Goupille .................................................1
3 ---------- Jonc.......................................................1
4 0043211 Joint.......................................................1
5 0149700 Ensemble de joints................................1
6 0149319 Protection de la gâchette ......................1
7 0149342 Diffuseur................................................1
8 0297041 Tête de pulvérisation 517......................1
9 9930818 Goupille coulissante..............................2
10 9910201 Écrou hexagonal ...................................1
11 0149352 Cale de retenue ....................................1
12 0043303 Rondelle ................................................1
13 0043301 Poignée .................................................1
14 ---------- Filtre blanc.............................................1
15 0043590 Ressort..................................................1
16 0043260 Rondelle ................................................1
17 0347706 Raccord orientable................................1
18 0149211 Gâchette................................................1
Français
English
1
2
3
4
5
6
18
7
8
9
10
11
12
13
14
15
16
17
Artículo Pieza # Descripción Cantidad
1 ---------- Caja de la pistola ..................................1
2 9930608 Pasador.................................................1
3 ---------- Argolla de retención ..............................1
4 0043211 Empaquetadura.....................................1
5 0149700 Conjunto de empaquetadura ................1
6 0149319 Protector del gatillo ...............................1
7 0149342 Difusor...................................................1
8 0297041 Boquilla 517 ..........................................1
9 9930818 Pasador deslizable................................2
10 9910201 Tuerca hexagonal..................................1
11 0149352 Bloque retenedor...................................1
12 0043303 Rondana................................................1
13 0043301 Manubrio ...............................................1
14 ---------- Filtro, blanco..........................................1
15 0043590 Resorte..................................................1
16 0043260 Rondana................................................1
17 0347706 Pivote ....................................................1
18 0149211 Conjunto del gatillo ...............................1
PRIME/SPRAY Valve Assembly •
Valve amorçage/pulvérisation •
Conjunto de la válvula de
Cebar/Atomizar (P/N 0295905)
Item Part # Description Quantity
1 0281316 Seat assembly (torque to 10-12 ft./lbs.)...1
2 0090523 O-ring....................................................2
3 0508140 Stem/ball/O-ring assembly
(includes item 2) ...................................1
4 0036352 Spring ...................................................1
5 0090512 Star washer...........................................1
6 0278312 Hex nut .................................................1
7 0278303 Cam ......................................................1
8 0278304 Knob .....................................................1
9 9890112 Retaining clip ........................................2
10 0508330 Label .....................................................1
11 0295905 PRIME/SPRAY valve assembly
NOTE: The valve seat assembly and o-rings can be
maintenanced without disassembling the entire
PRIME/SPRAY valve assembly. Using a
wrench, loosen the hex nut and remove the
PRIME/SPRAY valve assembly from the
pressure control housing. This will allow
access to the valve seat assembly and the o-
rings. Torque the hex nut to 13–15 ft./lbs.
during re-assembly.
English
SPRAY
PRIME
1
2
3
4
5
6
7
8
9
10
11
Español
