Strictly follow the bellow sequence (Figure 3):
remove the adhesive cover from flanges (1)
set the Transmitter on plant
remove the bottom locking device (2) and replace it with the ¾’’ NPT drain plug fastened
to the flange connection;
remove the upper delivery stop (3) and replace it with the ¾’’ NPT vent plug;
unscrew for seven turns the stop dowel (4) using the provider wrench.

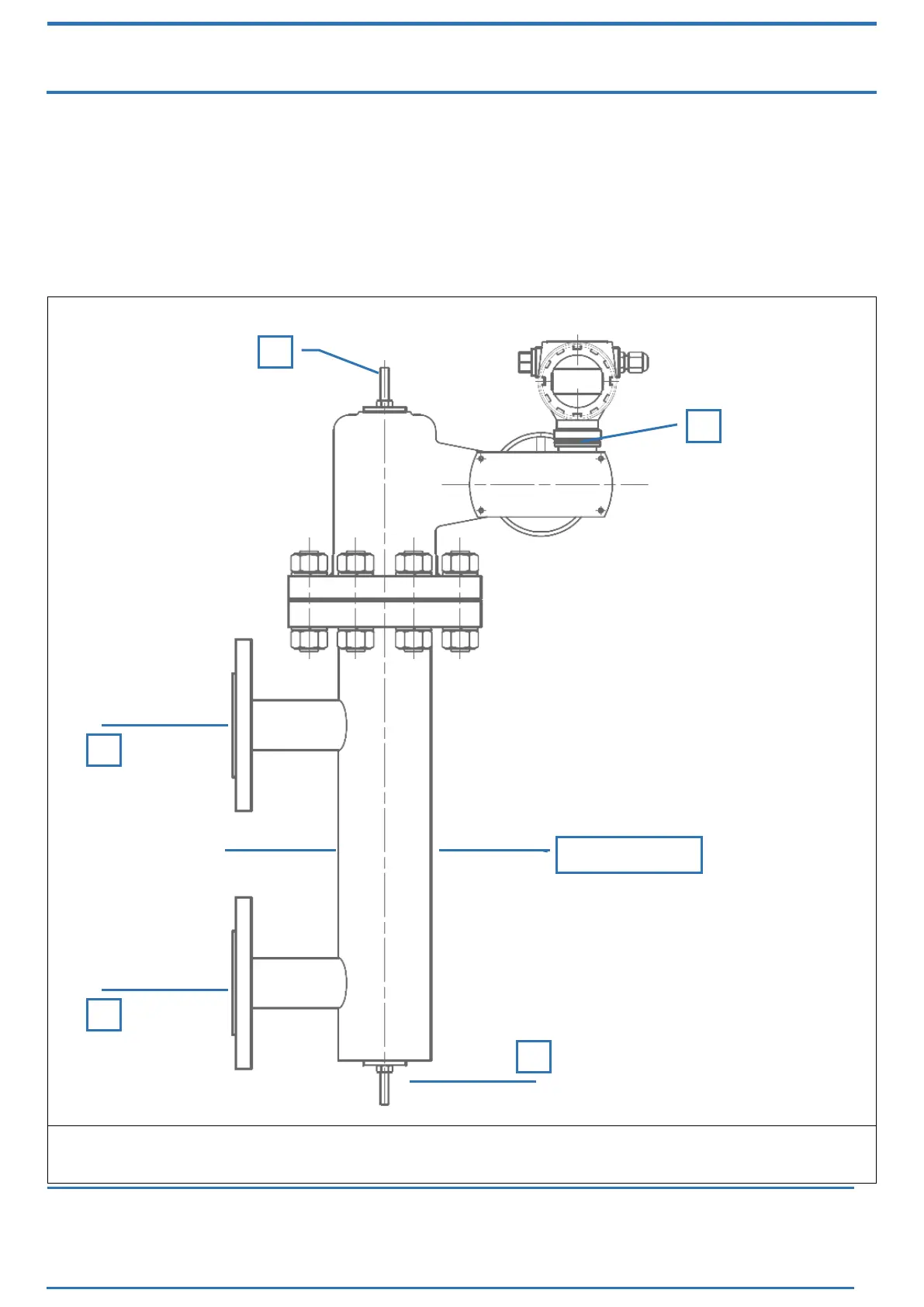

Figure 3: mechanical installation
