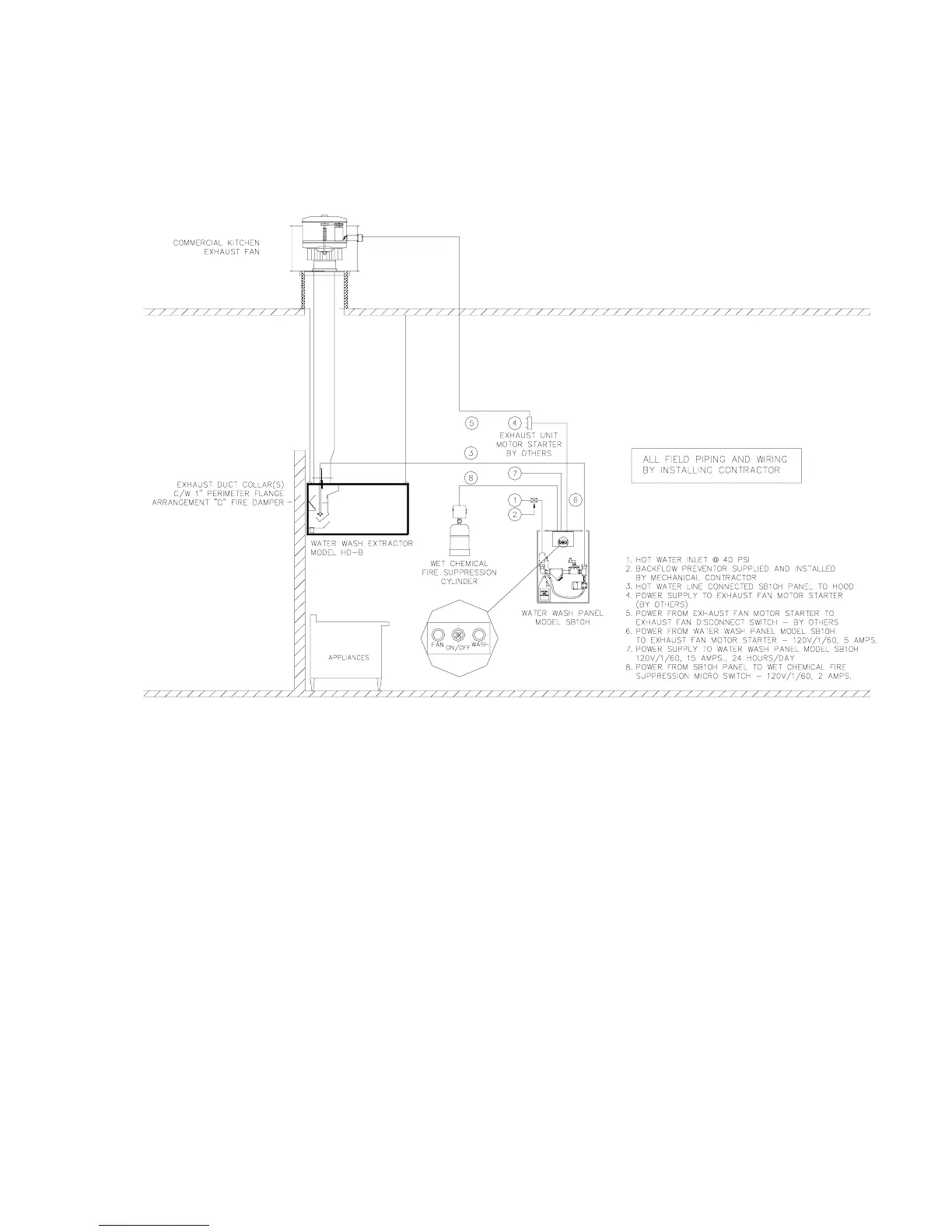

The schematic shown in Figure 19 is typical of a standard water wash installation. Remote wiring and plumbing are
shown for an exhaust fan, wet chemical systems, a Spring Air Systems water wash hood and a SB10H water wash panel.
In addition to the wiring indicated below power must be supplied to a shunt trip if electrical appliances are present under
the hood and under some circumstances a signal is required to the building fire alarm both from the wet chemical
system.
Field Piping and Wiring
Figure 19
