Spring Air Systems Water Wash Ventilator Maintenance Manual 11/01
24

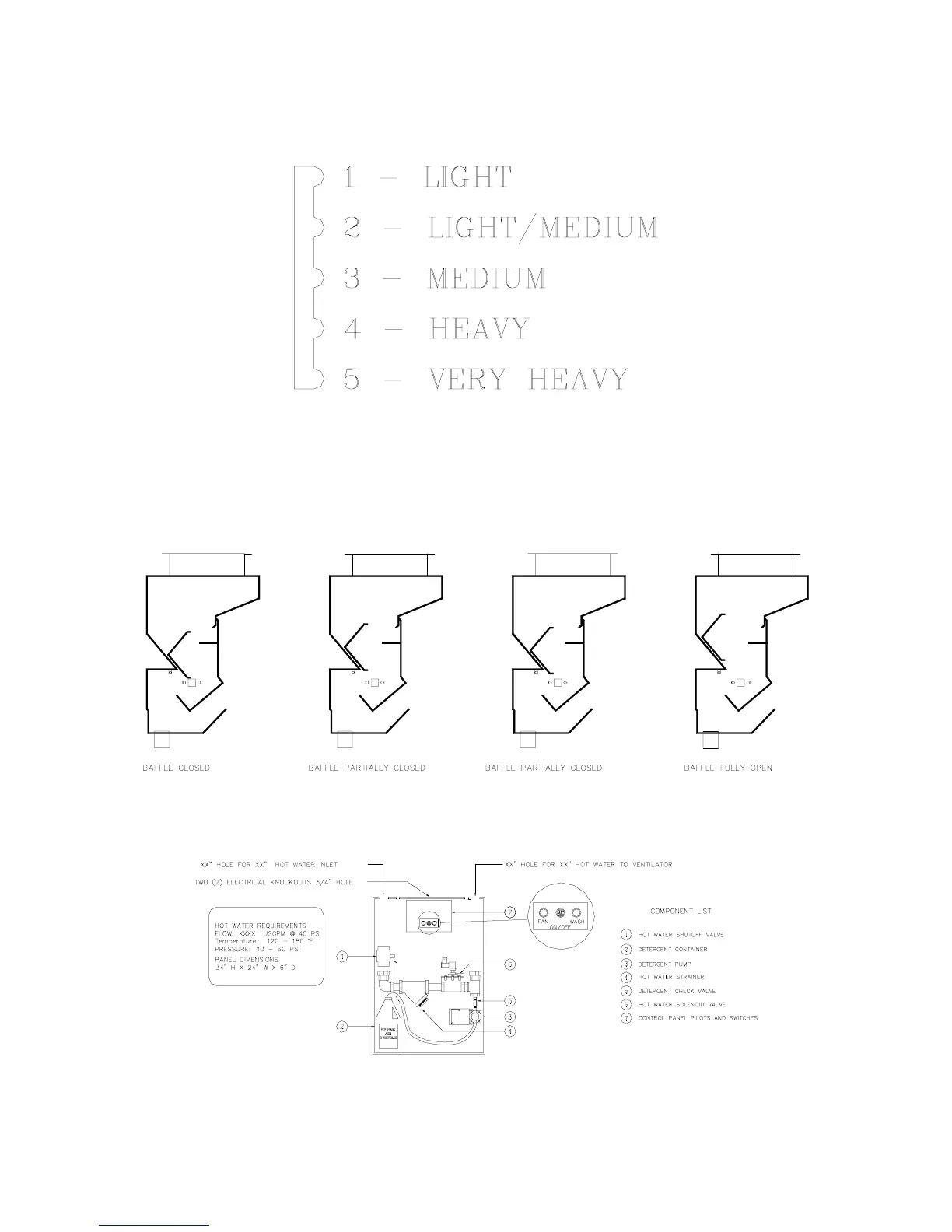

Baffle Settings
Variflow Baffle labeling
Figure 27a
Each baffle is approximately 18” to 23” long. The “Variflow Baffles are factory set in the middle position at about 300
CFM/ft. The baffles are connected to the Primary baffle on studs fastened by wing nuts.
There a total of five (5) adjustment positions on each baffle. After the water wash hood is installed the baffles can be
adjusted on site to provide the exhaust air according to the appliances under the hood. For example a charbroiler would
require a high exhaust flow rate and the baffle should be in the open No. 5 position.
“VARIFLOW” Adjustable Baffle
Figure 27b
Plumbing Panels
SB10H hot water wash plumbing
Figure 28
