The SPRT SP-POS88 V is a line thermal receipt printer designed for fast, low-noise, and reliable printing with excellent print quality, eliminating the need for ribbons and regular maintenance. Its compact size, simple operation, and extensive application make it particularly suitable for commercial cash registers, PC POS, bank POS, and various receipt printing needs.

Function Description

The printer's primary function is to produce thermal receipts. It supports various print control commands, including character printing with adjustable line spacing, double-width, and double-height options for ANK characters, user-defined characters, and Chinese characters. It also supports graphics printing, including bit-map graphics with different densities and downloadable bit-map graphics. For barcode printing, it supports UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODABAR, CODE93, CODE128, PDF417, and QR bar codes.

The printer features a self-test function that checks its operational status and prints a self-test receipt containing 96 ANK characters, default code page, Chinese character library name, interface settings, and software version. It also has a hexadecimal printing mode, which allows all input to be printed as hexadecimal numbers, useful for debugging and advanced diagnostics. Parameter settings, such as baud rate, language, font, and print density, can be configured through a dedicated setting mode. The device also supports a program upgrade mode for firmware updates.

Important Technical Specifications

Print Method: Direct thermal
Print Paper:
- Width: 79.5 ± 0.5 mm
- Roll Model: TF50KS-E (Japan paper co.ltd) / AF50KS-E (JUJO THERMAL)
- Roll Type: Thermal paper 79.5x80mm (max)
- Thickness: 0.06 mm ~ 0.08 mm
Print Density: 8 dots/mm, 576 dots/line
Print Speed: Approximately 250 mm/sec (max)
Reliability:
- Print Head Life: 150 km (under specified conditions: 12x24 ASCII characters, 50 lines per print, intermittent printing, dot-line printing not exceeding 25%, character line and one dot vertical printing not exceeding 11 times, using specified thermal paper)
- Cutter Life: 1,500,000 cuts
Valid Print Width: 72 mm
Print Font:
- ANK Character Set: 12x24 dots, 1.5 (W) x 3.00 (H) mm
- GB GB2312-80 (Chinese): 24x24 dots, 3.00 (W) x 3.00 (H) mm
Interfaces:
- RS-232C Serial Interface: DB-25 socket (female), supports XON/XOFF and DTR/DSR protocols. Baud rates adjustable from 2400 to 115200 bps. Data structure: 1 start bit + (7 or 8) data bits + 1 stop bit. Parity checking: no parity, odd, or even parity optional.
- Parallel Interface: 36-pin, 8-bit parallel interface, BUSY/ACK handshaking protocol, TTL signal level.
- Ethernet Interface: Standard Ethernet interface.
- USB Interface: USB interface.
- Cash Drawer Control: DC24V, 1A, 6-pin RJ-11 socket.
Power Supply: DC24V ± 10%, 2A, A-1009-3P power socket.
Operation Environment:
- Temperature: 0 ~ 50℃
- Relative Humidity: 10 ~ 80%
Storage Environment:
- Temperature: -20 ~ 60℃
- Relative Humidity: 10 ~ 90%
Outline Dimension & Weight:
- Dimension: 200 (L) mm x 150 (W) mm x 139 (H) mm
- Weight: 1500g (not including paper roll)
Model Classifications (Examples):
- SP-POS88 V SF: RS-232C Serial Interface
- SP-POS88 V PF: Parallel Interface
- SP-POS88 V EF: Ethernet Interface
- SP-POS88 V UF: USB Interface
- SP-POS88VMF: RS-232C Serial, USB, Ethernet Interfaces
- SP-POS88VBTF: USB, Bluetooth 2.0 Interfaces
- SP-POS88VBT4F: USB, Bluetooth 4.0 Interfaces
- SP-POS88VBTi: USB, Bluetooth with MFI certification

Usage Features

The printer is designed for ease of use. Paper loading involves holding down the upper cover button, opening the cover, placing the paper roll, drawing a length of paper, positioning the paper end on the print head, and closing the cover. Users are cautioned to pay attention to the paper loading direction, avoid manually feeding or drawing paper, and keep the print head clean to maintain print quality.

The printer includes a FEED button for manual paper feeding. Its functionality (enabled/disabled) can be set via print commands. Pressing the FEED button starts paper feeding, and releasing it stops it.

Indicators provide clear status feedback:

Power Indicator (green): Indicates power status.
Status Indicator (red): Flashes to report abnormal emergencies.
Paper-end Indicator (red): Lights up when paper is out, off during normal operation.

Error conditions are communicated through the indicators and an internal buzzer:

Paper ending: "ERROR" indicator flashes.
Print head uplift: Buzzer rings.
Print head overheat: Hurried buzzer ring (recovers automatically when the print head cools).
Auto cutter Position Error: Buzzer rings and indicator blinks (indicates a paper jam or unrecoverable error).

In case of an error, the "nFault" pin of the parallel interface changes to "0" level, and the printer can send a 1-bit wrong code via serial TXD or its state by responding to an ESC v command.

Maintenance Features

The printer is designed for minimal maintenance due to its ribbon-less thermal printing method. However, specific procedures are outlined for addressing issues like paper jams. If a cutter jam occurs, turning the power off and on again should reset the cutter to its original position. If a paper jam occurs, opening the paper cover and removing the paper is recommended. If the cutter remains stuck, the cutter cover can be opened, and the white plastic gear can be manually turned in the suggestive direction to return the cutter to its original position.

Keeping the print head clean is crucial for maintaining print quality, as advised in the paper loading instructions. The print head has a long life of 150 km, and the cutter is rated for 1.5 million cuts, indicating robust design and reduced need for frequent component replacement.

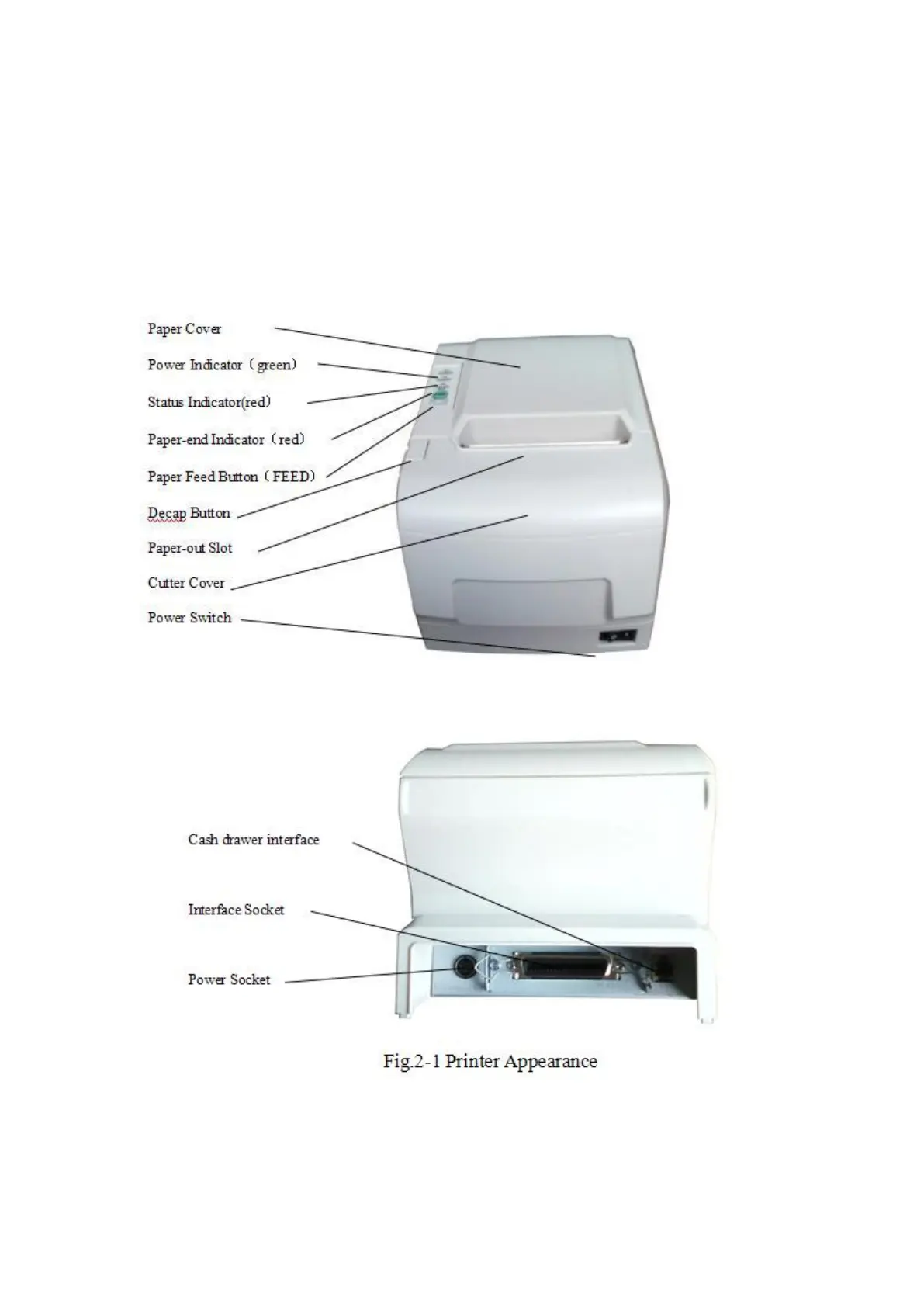

SPRT SP-POS88V - Chapter 2 Operation Specification; 2.1 Printer Appearance
