SPT SD-9252SS - Connect Drain Line

Installation Instructions

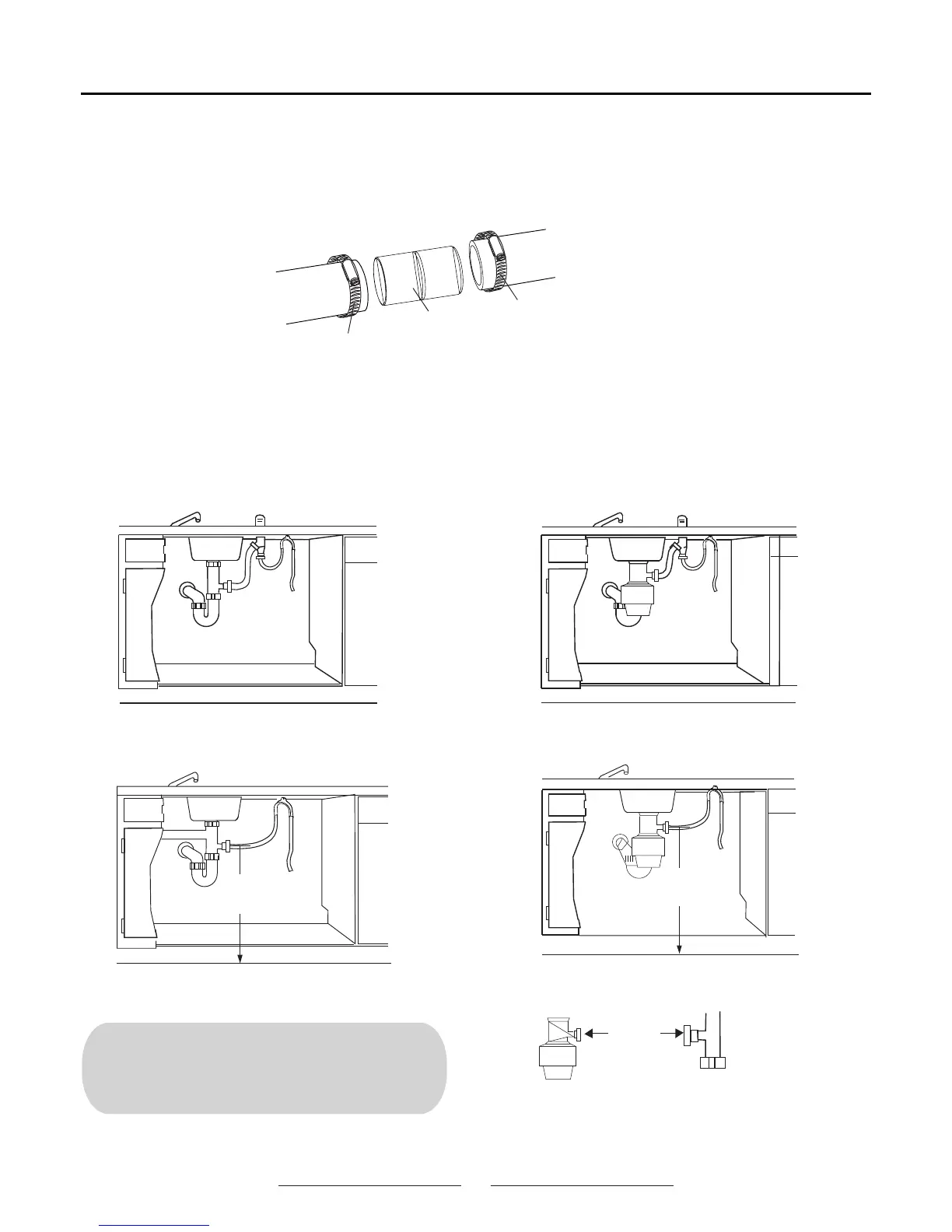

If a longer drain hose is required, add up to 42” of length for a total of 10 ft. to the factory installed hose. Use 5/8"
or 7/8" inside diameter hose and a coupler to connect the two hose ends. Secure the connection with hose clamps.
CONNECT DRAIN LINE
FOLLOW ALL LOCAL CODES AND ORDINANCES.
* Secure the drain hose to the air gap, waste tee or disposer with clamps.
NOTE: TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED 10 FEET FOR PROPER DRAIN OPERATION.
Hose Clamp
Coupler
Hose Clamp
18"
Min.
18"
Min.
Figure 24--air gap with disposer
Figure 23--air gap with waste tee
Figure 25--waste tee
Figure 26--disposer
* Connect drain line to air gap, waste tee or disposer using either previously determined method.
Method 1 --Air gap with waste tee of disposer
Method 2 --Waste tee of disposer
Remove
Hopper
Plug
Waste teeDisposer
8
Figure 22
Figure 27
If drain plug of disposer or waste tee has not been
removed, the dishwasher will not drain.
IMPORTANT
