INSTALLATION
3
20 inch
20 inch

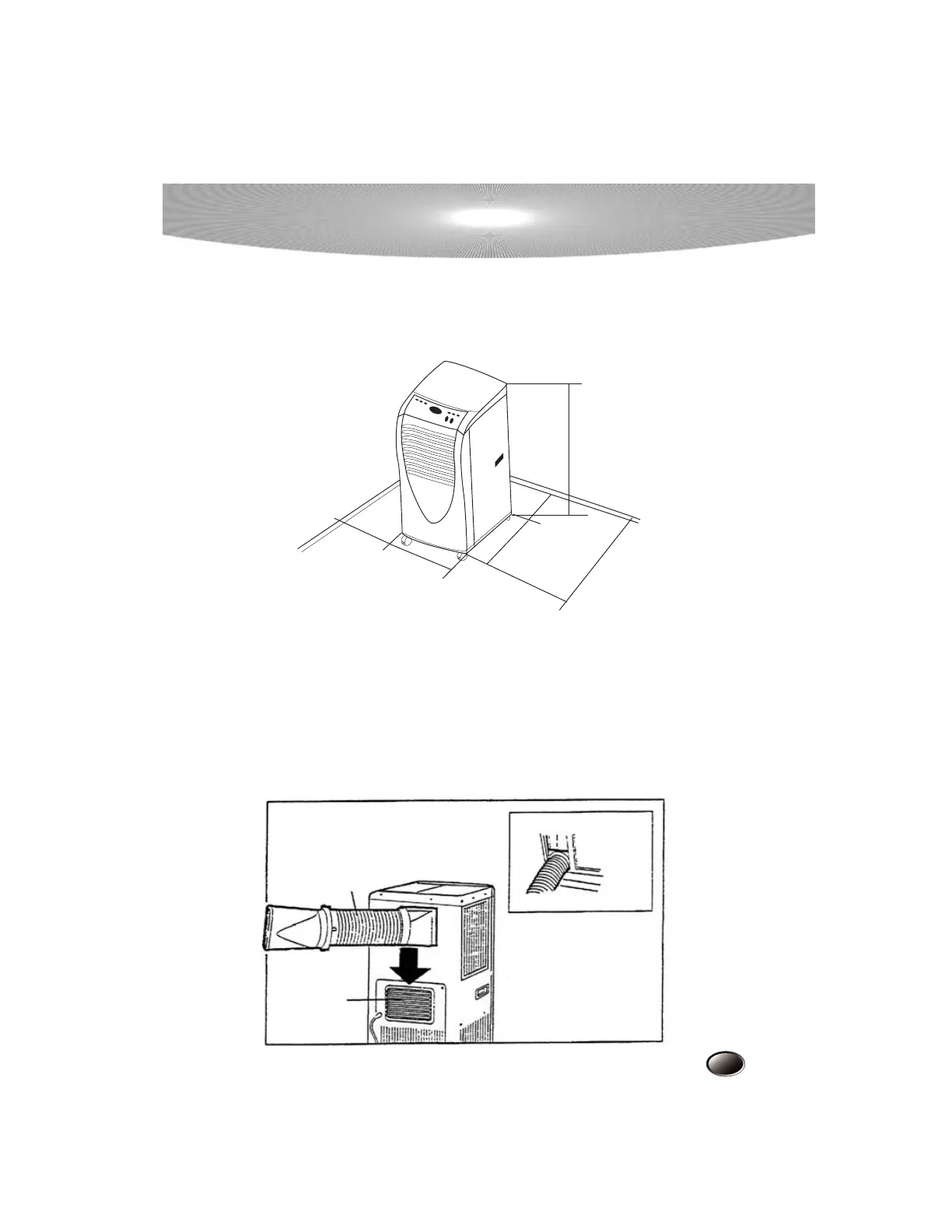

Installing the air exhaust duct
1) Fix adaptors onto hose by turning clock-wise
2) Fix the square end of the duct to the exhaust terminal of the unit
3) Lead the other end to the nearest window. Note: the length of the hose
is between 23.7 ~ 70 inches. Do not extend beyond the supplied
length. Keep hose length as short and as straight as possible.
12.8 inch
32.7 inch
17.3 inch
20 inch
Selection of installation location
Place the portable air conditioner on a flat surface where the air outlets are not blocked.
Place the unit with at least 20 inches of clearing from a wall or other obstacles.
heat exhaust air duct
hot air terminal
window
exhaust air opening
