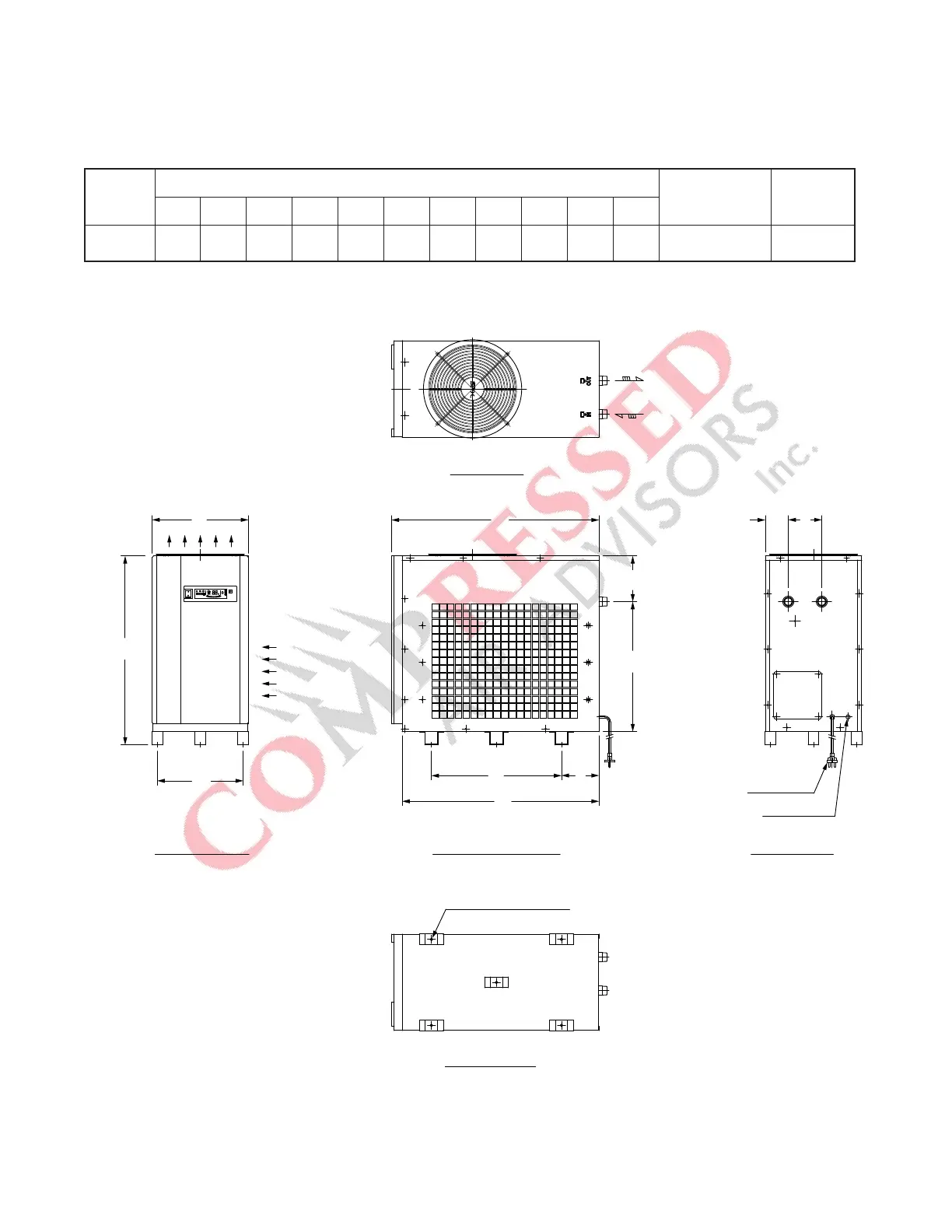

SPECIFICATIONS: General Arrangement Drawing
Figure 5B
Model: FLX 1.2
MODEL
DIMENSIONS, INCHES (MM)
INLET/OUTLET
CONNECTIONS
WEIGHT
Lb. (kg)
A B C D E F G H I J K
FLX 1.2
3.41
(86.5)
4.97
(126.2)
6.75
(172)
19.25
(489.2)
14.28
(363)
28
(711.2)
12.75
(324)
30.75
(781.3)
5.56
(141.2)
19.28
(490)
29.19
(741.2)
1" NPT
147
(66.5)
AIR FLOW
COOLING
DRIED AIR OUTLET
WETTED AIR INLET
F
E
C
D
A B
5-Ø10 MOUNTING HOLES
G
DRAIN OUTLET
POWER CORD
FOOT PRINT
FRONT VIEW REAR VIEWRIGHT SIDE VIEW
TOP VIEW
J
K
I
H
