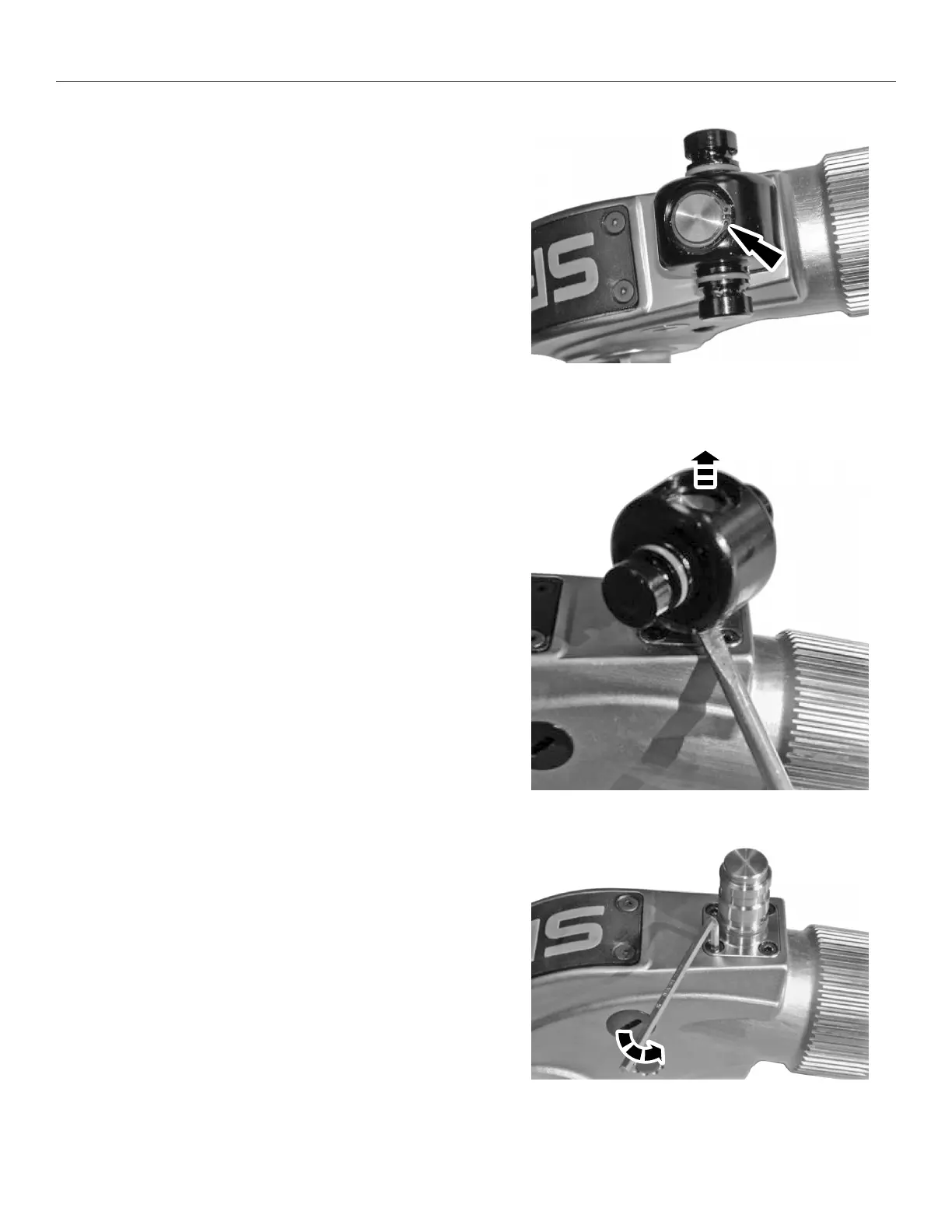

6. See Figure 14. Remove the banjo circlip.
Repair Procedures continued
Figure 14. Swivel Banjo Circlip
Removal
Figure 15. Swivel Banjo Removal
Figure 16. Swivel Post Removal
7. See Figure 15. Remove the banjo from the swivel
post. Remove and discard the banjo seals.
8. See Figure 16. Unscrew and remove the four
capscrews that attach the swivel post to the wrench
body.
