Operation
Air Connections NOTE: Actual air pressure values may vary depending on the
valve size, actuator size, holding pressure requirements and
spring selection.
Maintainable Actuators
4", 5", and 6" Air-to-Raise
• Air Pressure Range = minimum 50 psi to maximum 90 psi
(min. 3.4 bar to max. 6.2 bar)
• 1/8"-27 NPT Thread
4", 5", and 6" Air-to-Lower
• Air Pressure Range = minimum 50 psi to maximum 90 psi
(min. 3.4 bar to max. 6.2 bar)
• 1/8"-27 NPT Thread
4" Air-to-Raise, 3-Position
• Air Pressure Range = minimum 50 psi to maximum 90 psi
(3.4 bar to 6.2 bar)
• 1/8"-27 NPT Thread
A. Vent
B. Air In

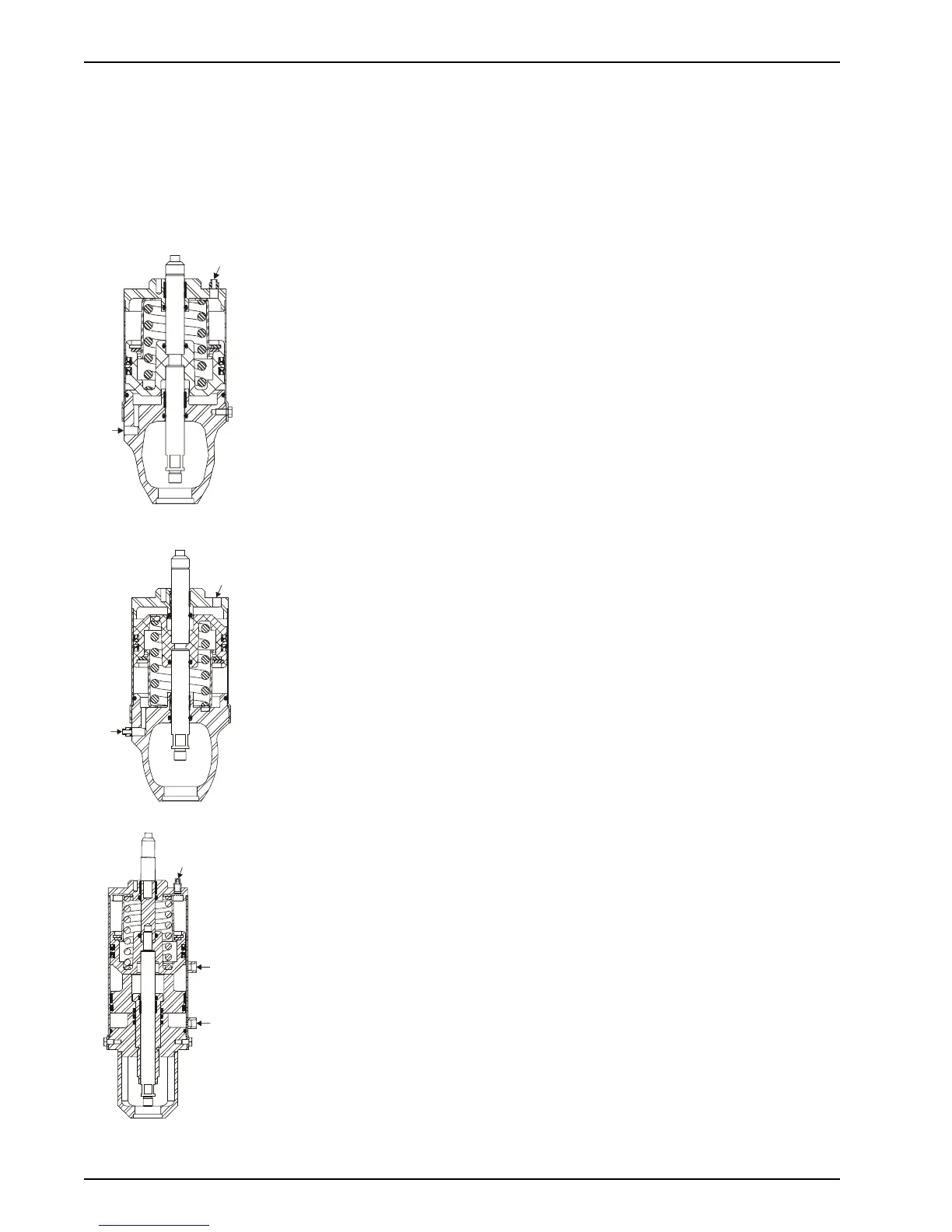

Figure 3: 4", 5", and 6" Air-to-Raise
VA100-410a
A
B
A. Vent
B. Air In
Figure 4: 4", 5", and 6" Air-to-Lower
VA100-410b
B
A
A. Vent
B. Full Air In
C. 3-Position Air
In
Figure 5: 4" Air-to-Raise, 3-Position
A
VA100-375a
B
C
