Waukesha Cherry-Burrell Brand W60/W80 Valves Maintenance
08/2018 95-03022 Page 25
W62/W82 Valve Assembly
Air-to-Raise Actuator
1. Screw the adapter (Figure 15, item 3) onto the yoke.
2. Install the body o-ring (item 6), stem o-ring (item 4), and
PTFE bearing (item 2).
3. Assemble the upper body to the adapter; secure it with the
upper body clamp (item 5).
4. Using 5/8-inch torque wrench flats on the stem, install the
valve stem (item 7). Torque to 380 in/lbs.
5. Apply air to Port A to raise the stem.
6. Install the lower body o-ring (item 6).
7. Assemble the lower body; secure it with the lower body clamp
(item 5).
8. Release the air pressure.
Air-to-Lower Actuator
1. Screw the adapter (item 3) onto the yoke.
2. Install the body o-ring (item 6), stem o-ring (item 4), and
PTFE bearing (item 2).
3. Assemble the upper body to the adapter; secure it with the
upper body clamp (item 5).
4. Apply air to Port B to lower the stem.
5. Using 5/8-inch torque wrench flats on the stem, install the
valve stem (item 7). Torque to 380 in/lbs.
6. Release the air pressure.
7. Install the lower body o-ring (item 6).
8. Assemble the lower body; secure it with the lower body clamp
(item 5).

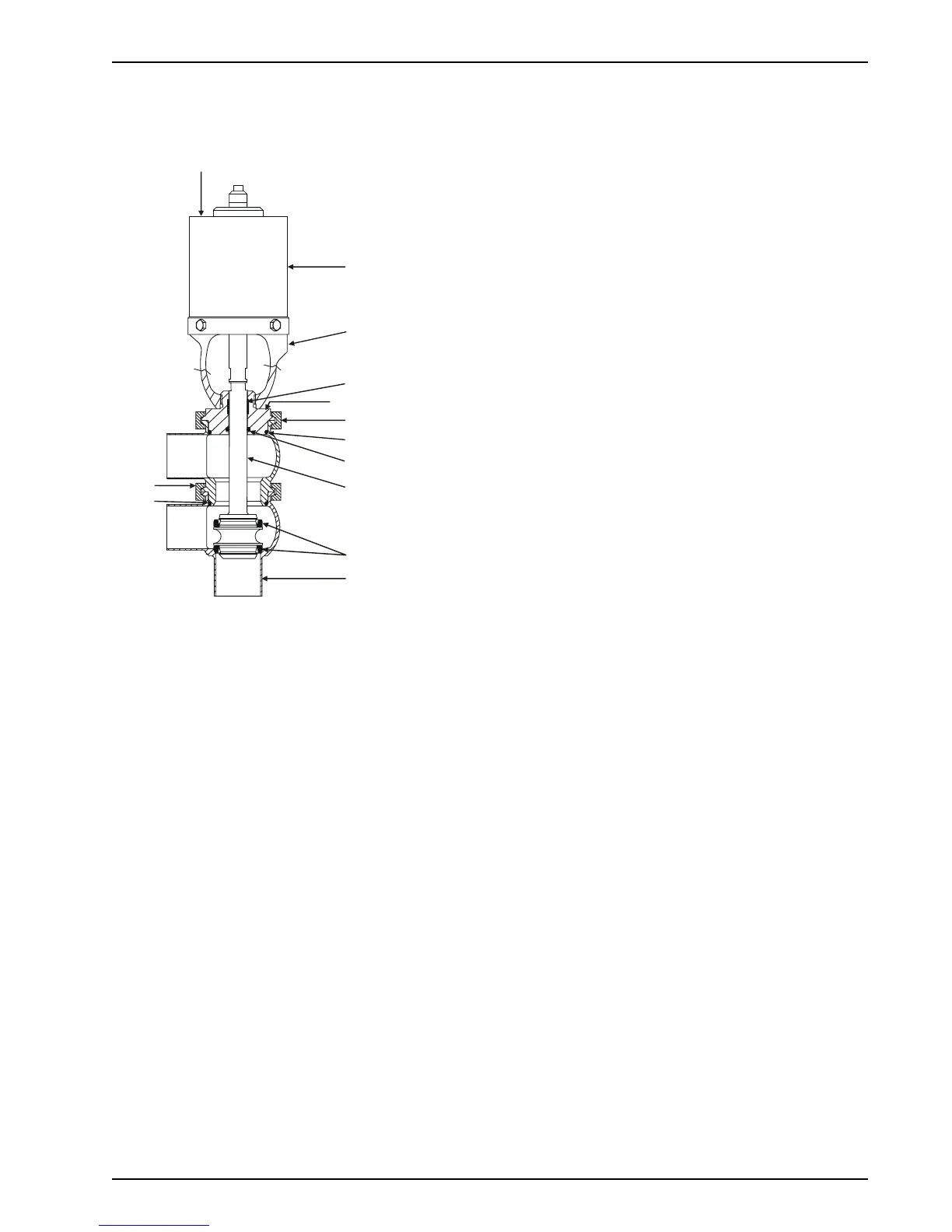

Figure 15: W62/W82 Divert Valve
(Air-to-Raise Shown)
1
2
3,3a,
3b,3d
5
6
4
7
8
9
5
6
VA100-242b
B
A
