SPX FLOW W64 - Hand Lock Long Stroke Manual Handle

Waukesha Cherry-Burrell Brand W60/W80 Valves Parts Lists
08/2018 95-03022 Page 83

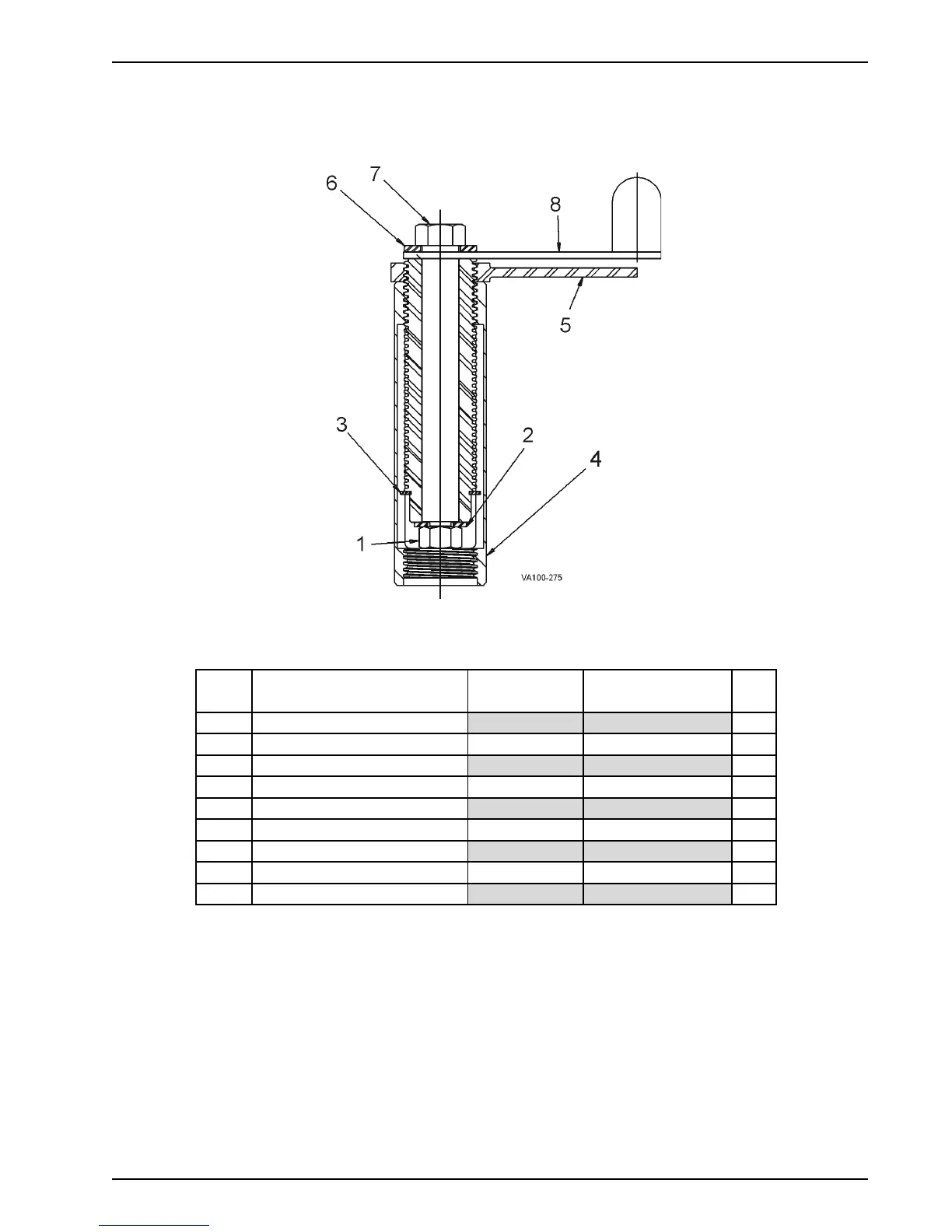

Hand Lock Long Stroke Manual Handle
Actuator Assembly 112100+ 121914+
1 Hex Nut 36-54 36-54
1
2 Plane Washer 43-31 43-31
3 Retaining Ring 2104600+ 2104600+
4 Nut-Adjusting 112101+ 121916+
5 Locknut with Handle 36-50 36-50
6 Plain Washer 43-55 43-55
7 Stem - Manual Actuator 110299+ 121915+
8 Adjusting Screw Assembly 112098+ 121917+
PL5027-CH40
Item # Part Description
Long Stroke
Part No.
Extra Long Stroke
Part No.
Note
Notes
1. The hex nut is only used for shipping. The hex nut is not used when the actuator is installed on a valve.
