Repair Procedures continued

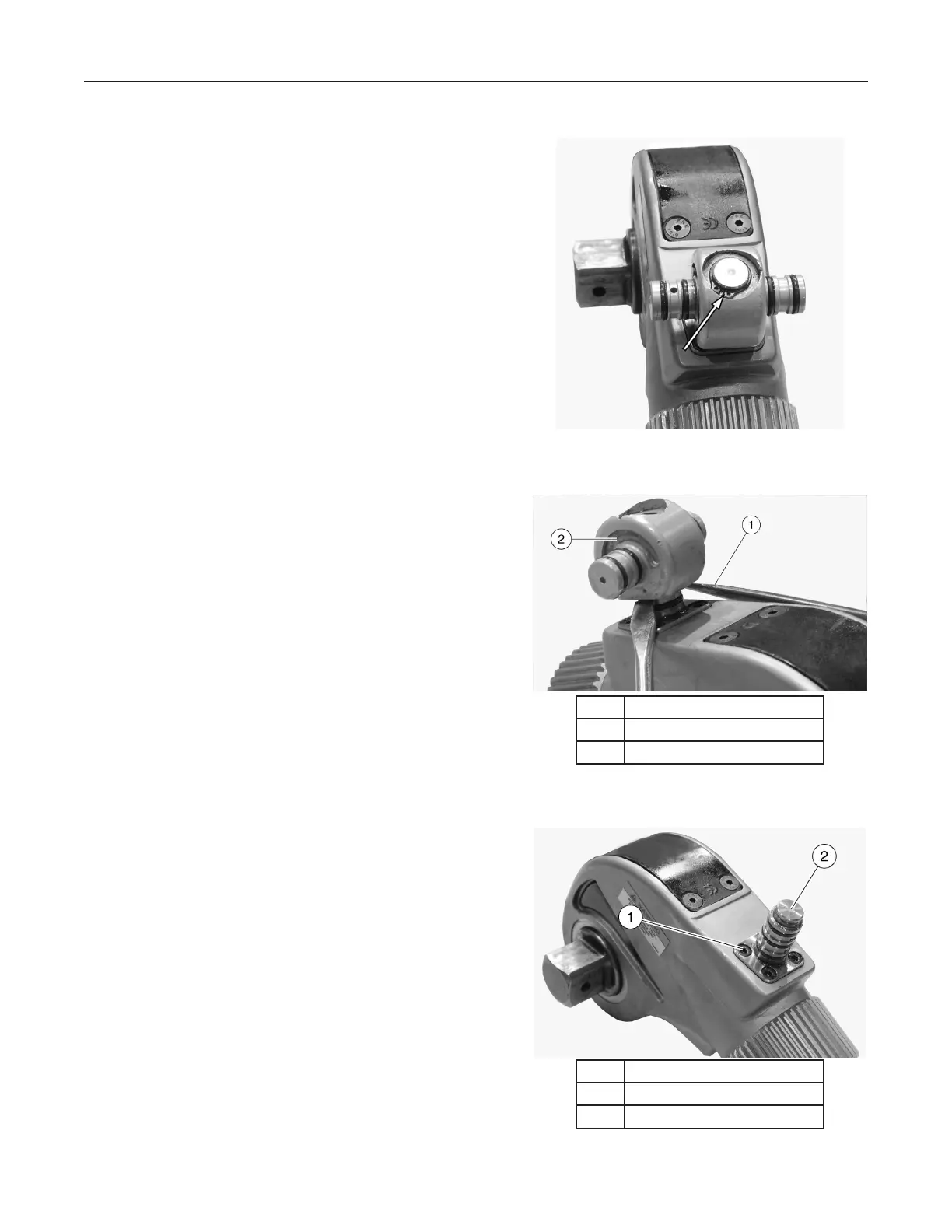

See Figure 16. Remove the banjo circlip.4.
See Figure 17. Remove the banjo from the 5.
multiswivel post. Remove and discard the banjo
seals. Do not remove the pressure plugs from the
banjo.
See Figure 18. Unscrew and remove the four off 6.
capscrews that attach the post to the wrench body.
Figure 16. Banjo Circlip Removal
Item Description
1 Pry bar
2 Multiswivel banjo
Figure 17. Banjo Removal
Item Description
1 Screw
2 Multiswivel post
Figure 18. Capscrew Removal
