25
© SPX
Form No. 1000528
Rev. 1 December 2, 2011
Multiswivel Manifold Disassembly
The multiswivel manifold should only be removed for
seal replacement or during full servicing.
Disconnect the hydraulic torque wrench from the 1.
power supply.
See Figure 14. Remove the multiswivel yoke 2.
screw.
See Figure 15. Disengage the multiswivel yoke by 3.
rotating the advance yoke away from the retract
yoke, disengaging the keys. Pull each yoke away
from the banjo.
Repair Procedures continued

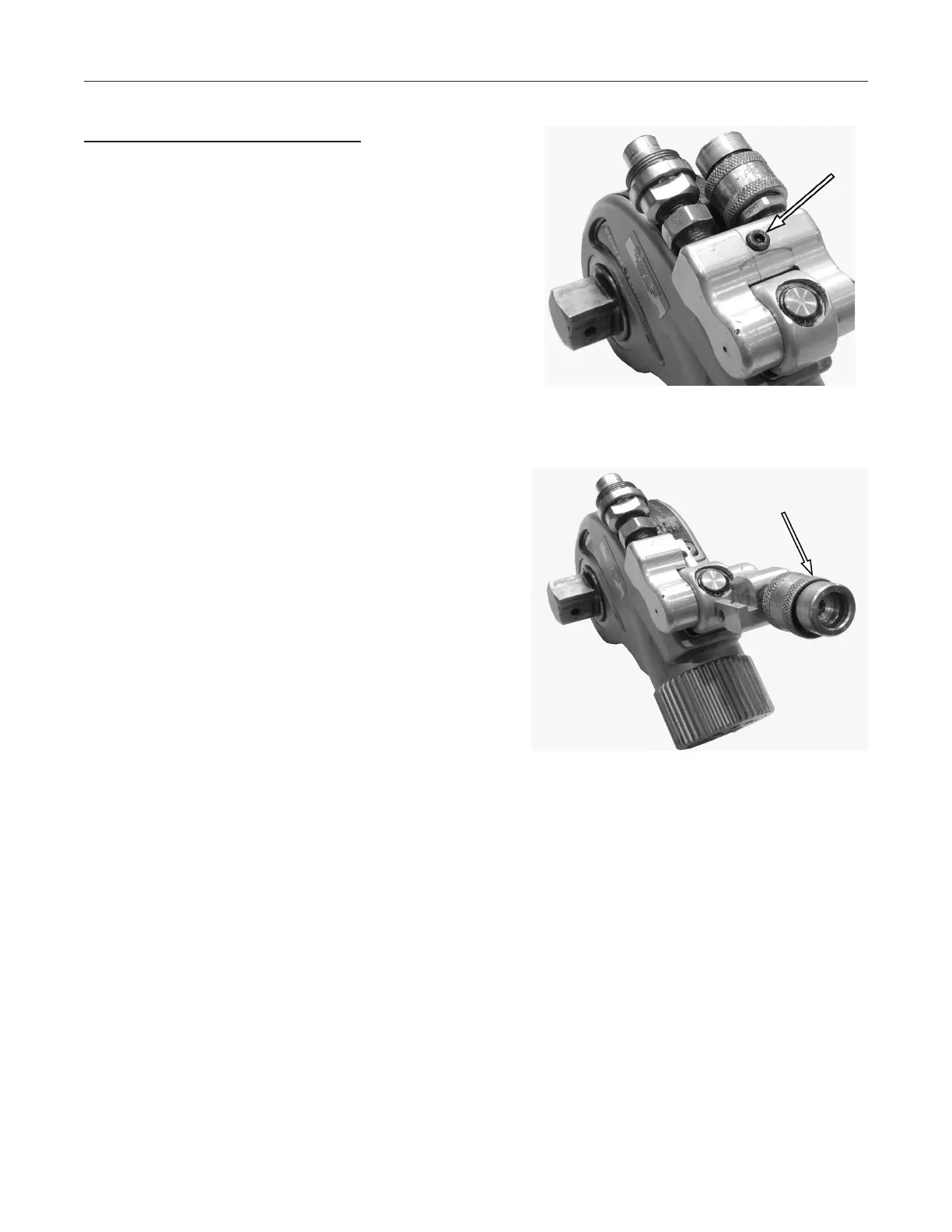

Figure 14. Multiswivel Yoke Screw
Removal
Figure 15. Multiswivel Yoke
Disengagement
