SR SUNTOUR / HOW TO CHECK & REPLACE / RL , RL-R CARTRIDGES
5

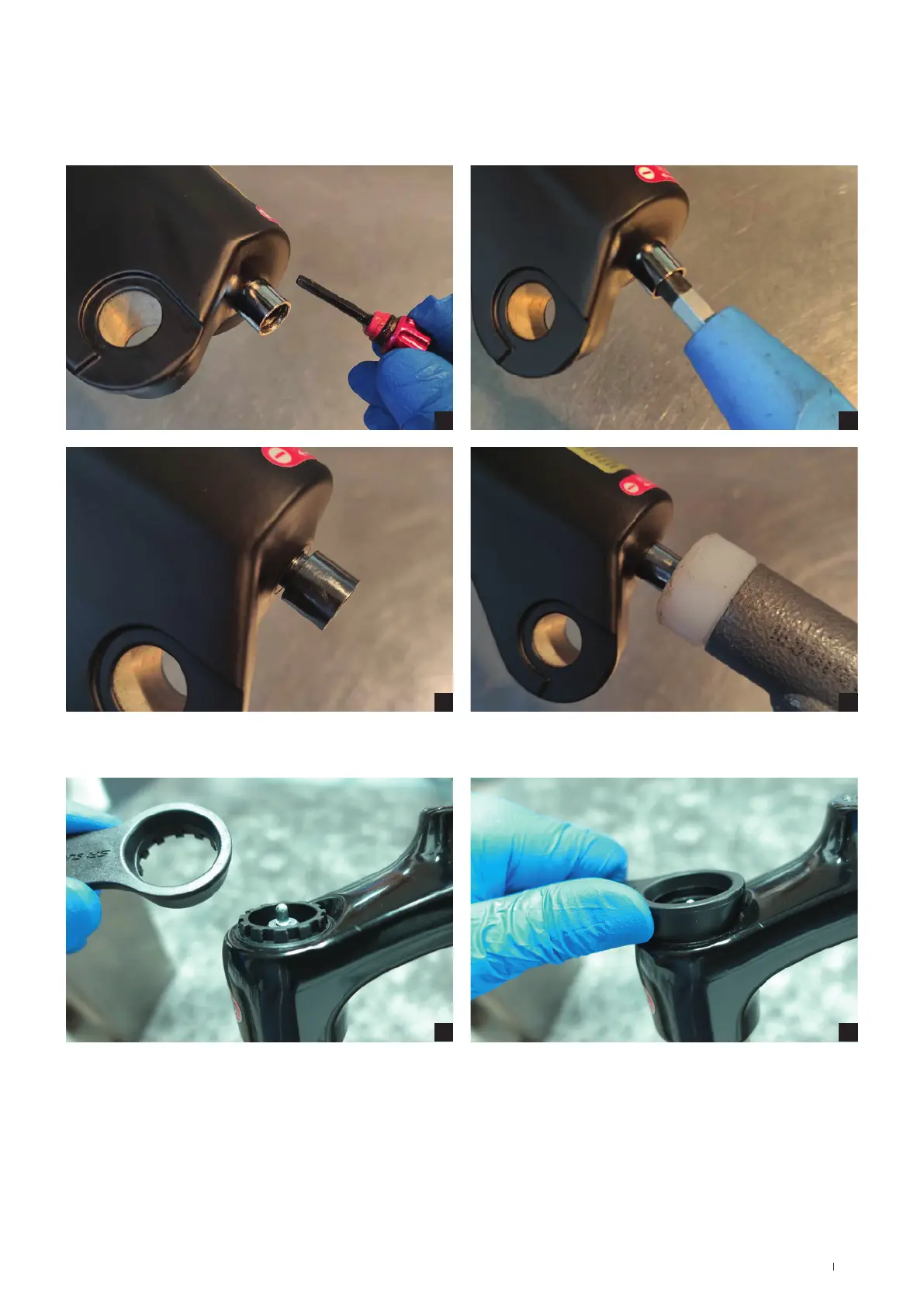

RL-R cartridges: On the damper side, pull on the rebound adjuster knob to remove it, then set it aside.
Using an 8mm Allen key, turn the exposed bolt counterclockwise 2 turns to loosen it.
Use a mallet to strike the bolt 2-3 times. Check to ensure the bolt is in contact with the leg. Remove the bolt
and set it aside.
1
2
3 4
2. Use the dedicated FAA122 lockout system removal tool to unscrew the RL adjustment system. Remove
the cartridge from the fork.
1
2
