SR SUNTOUR / HOW TO CHECK & REPLACE / RL , RL-R CARTRIDGES
4
3

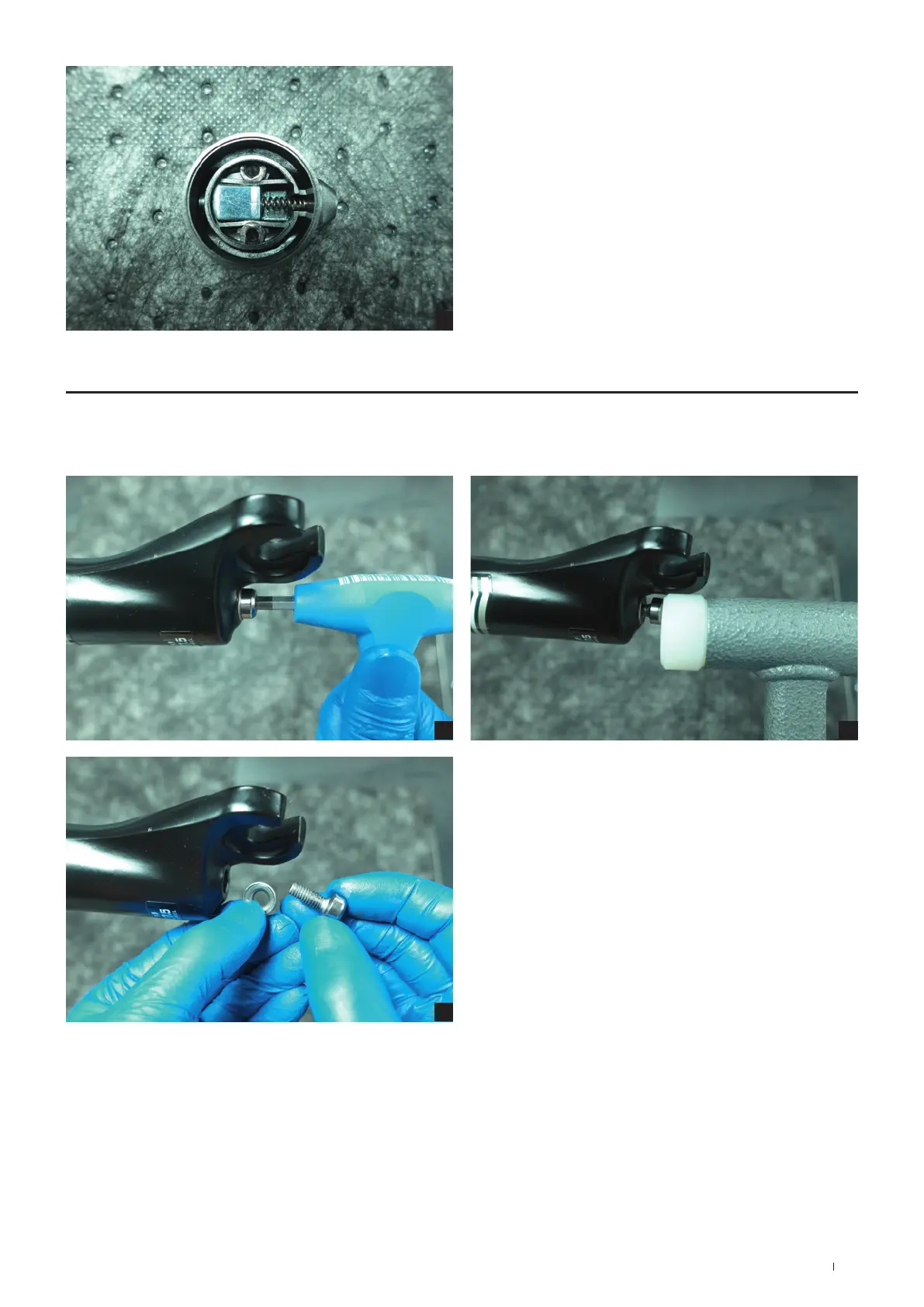

STEP 2 – REPLACING THE CARTRIDGE
1. RL cartridges: On the damper side, using a 5mm Allen key, turn the lower-leg bolt counterclockwise 2
turns to loosen it. Use a mallet to strike the bolt 2-3 times. Check to ensure the bolt is in contact with the leg.
Remove the bolt and set it aside.
1
2
3
