SRAM DUB MTB Series User Manual

15
Install Installer Instalar
Einbauen Installare
取り付け
Instalar Monteren
安装
Frame Shell
Width (mm)
Outer Left
Spacer (mm)
Inner Left
Spacer (mm)
Inner Right
Spacer (mm)
Outer Right
Spacer (mm)
DUB BB30™/
DUB PressFit 30™
73 - - - 4.5
6

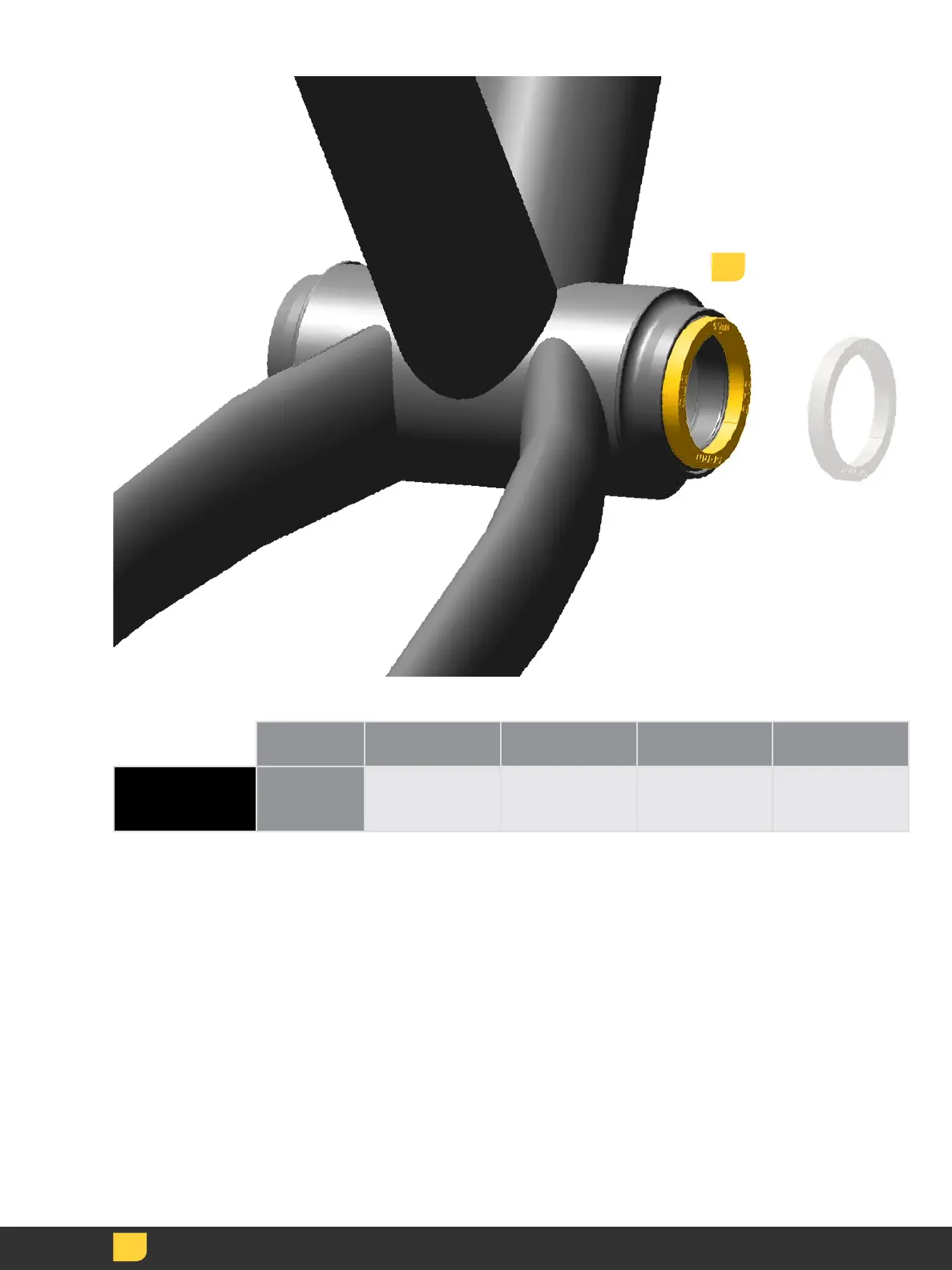

Install the outer right spacer. Installez l’entretoise externe de droite. Instale o espaçador exterior do lado direito.
Bauen Sie das äußere rechte Distanzstück
ein.
Installareill distanziale esterno destro.
右側のアウター・スペーサーを取り付 けます。
Instale el espaciador externo derecho. Monteer de rechter (buitenste)
afstandhouder.
安装右侧的外垫片。

SRAM DUB MTB Series Specifications

General

Material	Aluminum
Intended Use	Mountain Biking
Mounting	Direct Mount
Chainring Options	32T, 34T, 36T
Chainline	49.0mm
Compatibility	SRAM Eagle and other 12-speed systems
