SRAM LEVEL TL - SRAM Lever Service Procedures; Parts and Tools for Lever Service; Lever Exploded Views

24Level™ Ultimate Lever Exploded View

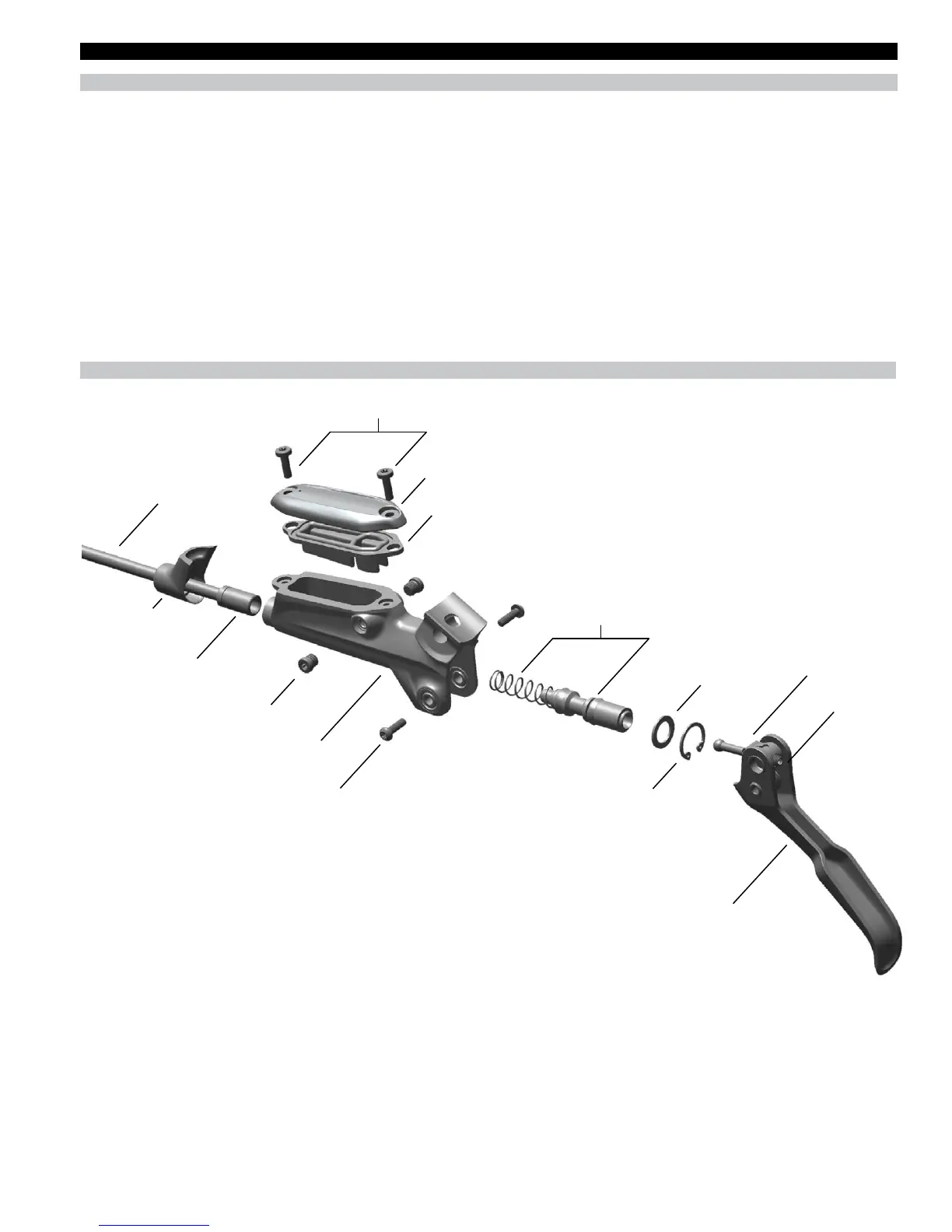

Level™ Ultimate Lever Exploded View
Hose boot
Bleed port
screws (2)
Washer
Snap ring
Bladder
Reservoir cap
Lever blade
Lever body
Compression nut
Reach
adjuster
SwingLink™
push rod
Hose
Lever pivot
bolts (2)
Reservoir bolts (2)
Piston assembly
Lever Service
Parts and Tools Needed for Service
• Safety glasses
• Nitrile gloves
• Oil pan
• Isopropyl alcohol
• Clean, lint-free shop towel
• SRAM DOT 5.1 fluid
If SRAM fluid is not available, only use DOT 5.1 or 4 fluid.
• Needle nose pliers
• Long-tipped snap ring pliers
• Pick
• T8, T10, & T25 TORX® wrench
• T10 TORX bit socket
• 8 mm flare nut crowfoot wrench
• Torque wrench
• SRAM aftermarket tool - lever pivot tool
• Rubber mallet
