REVERB REMOTE ASSEMBLY BLEED
This service guide covers the steps to perform a bleed of the Reverb remote assembly. Use this procedure only when
you suspect there is air in the system that is aecting the operation of the height adjust feature of the seatpost or when
you shorten the remote hose.
This procedure is not intended for service that requires the replacement of the remote hose. Remote hose
replacement requires the Reverb Remote Hose Replacement and System Bleed procedure (available December 2010).
TOOLS NEEDED FOR SERVICE
Safety Glasses
Nitrile Gloves
T10 and T25 Torx
Torque wrench with T10 Torx socket
RockShox 2.5wt suspension fluid
Reverb bleed kit
Clean lint free rag
IMPORTANT:
Do not use Avid Hydraulic Disc Brake bleed tools or any other bleed kit that specifies DOT fluid. Any DOT fluid that
contaminates the Reverb system will damage the product. In addition, suspension fluid will damage any DOT specific
brake bleed tools.

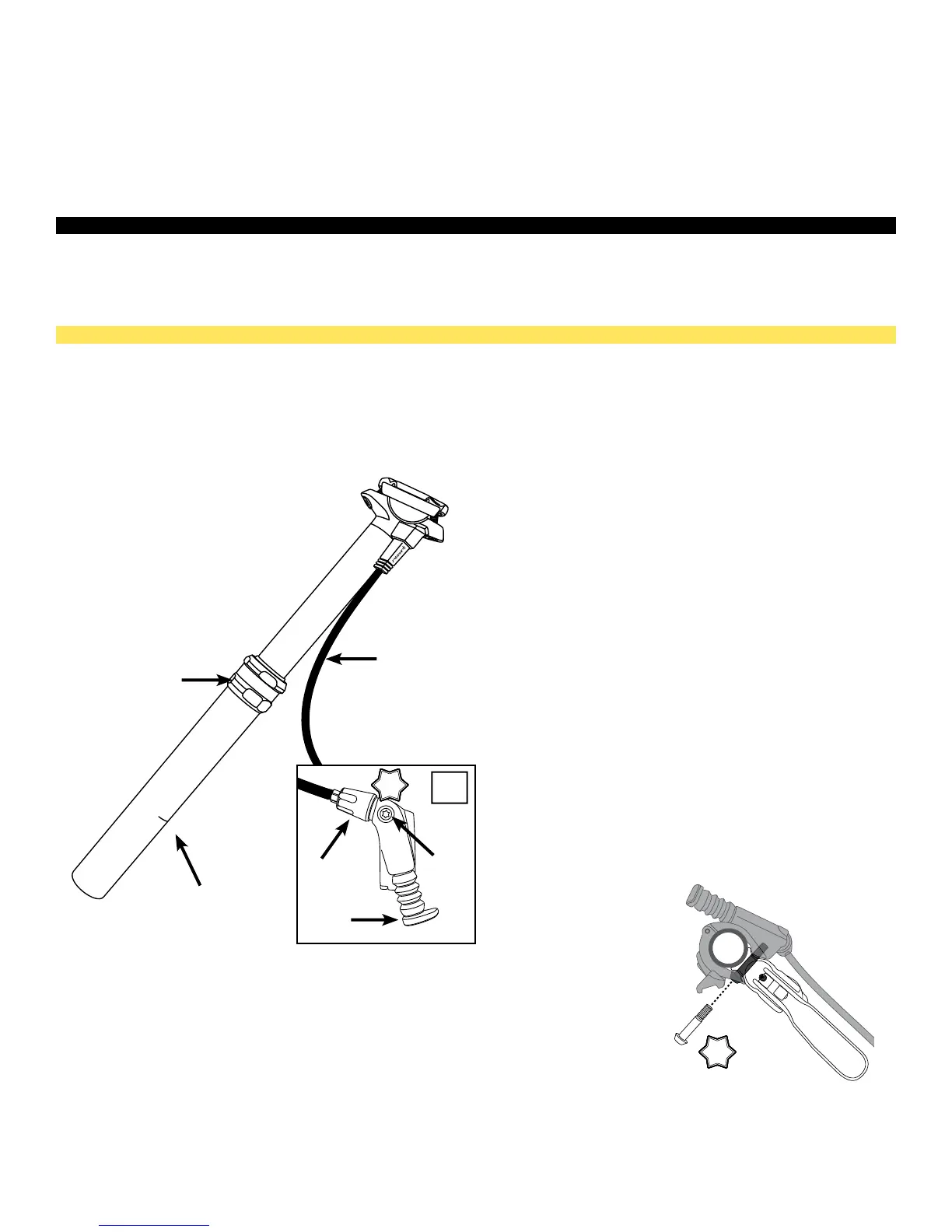

A - Remote hose
B - Minimum insertion line
C - Top Cap
D - Remote assembly
E - Actuator
F - Speed adjuster
G - Bleed port/bleed screw
C
A
B
D
E
F
G
T10
T25
5-6 N∙m (43-52 in-lb)
Remote Clamp Bolt
To Next Page
