English Page 9
Version with coaster brake /
drum brake:
Mount the brake lever using a
suitable clamp (5, Fig. 2 resp.
1, Fig. 4).
Caution:
Mount the brake lever between
the two straps of the frame
clamp.
The clamp must be seated on
the frame without play.
Use a self-locking nut!
Tightening torque: 2 – 3 Nm
(18 – 27 in.lbs.).

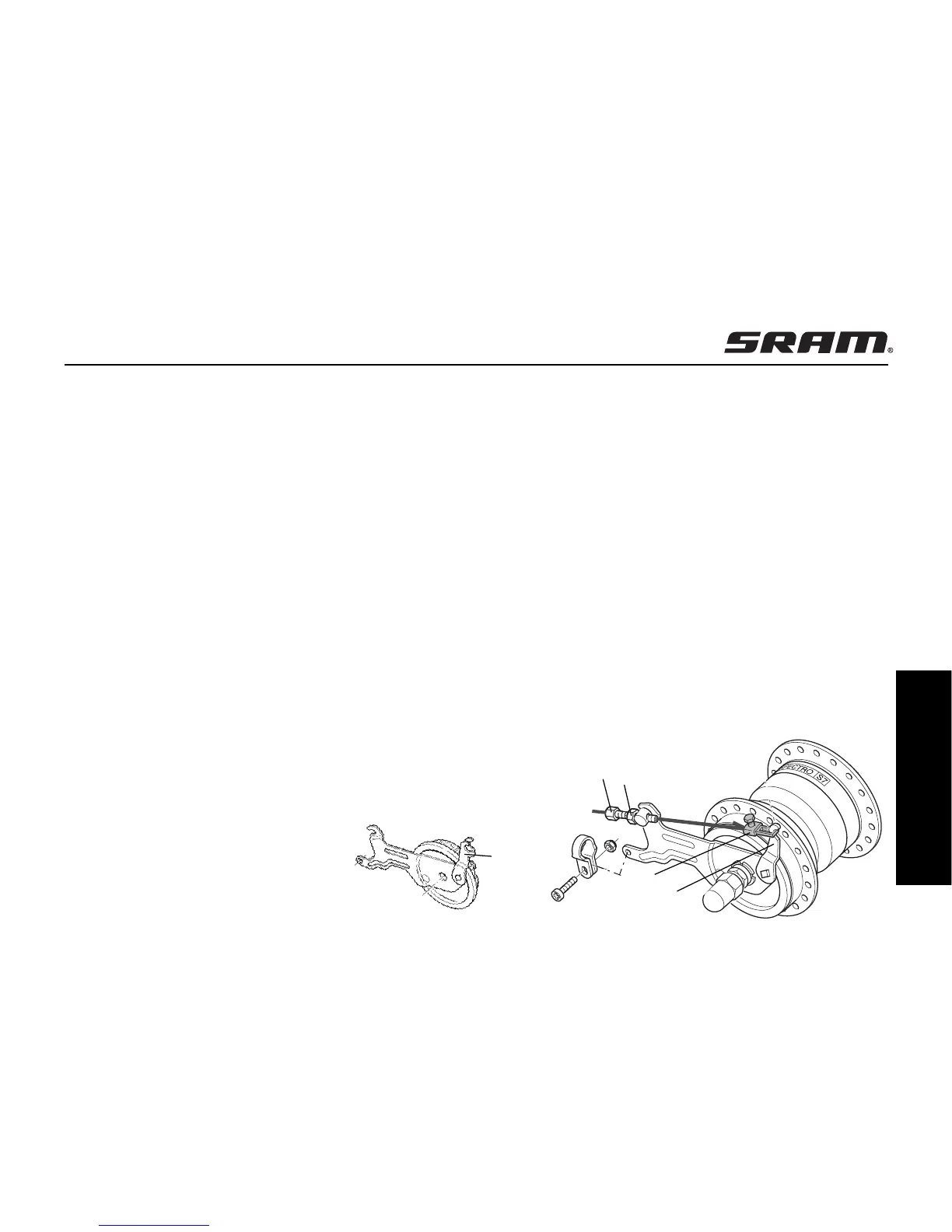

Version with drum brake:
• Attach fork unit (2, Fig. 4) to
brake lever (3).
• For NL version drum brake hub
with special lever (4), only use
original NL brake cable (fork unit
(2) is not suitable).
Adjustment drum brake:
Unscrew the adjusting screw (5,
Fig. 4) until the brake pads drag
lightly.
• Actuate the hand brake lever
forcefully several times and
then, if necessary, turn the adju-
sting screw further in just until
the wheel starts spinning freely.
• Lock hex nut (6).
• Repeat the adjustment procedu-
re if the braking effect wears off
after prolonged use or if the
hand brake lever can be pulled
back fully to the handlebar grip.
Caution:
• Only use brake levers with a
cable moving distance of at
least 15 mm and a minimum
leverage of 3.8.
• Please contact your dealer
if the control cable needs
replacing.
Removing / Refitting rear wheel
4
4
1
2
5
6
3
