SRAM SPECTRO S7 - Assembly; Assembly Shifter and Clickbox

English Page 10
Caution:
The Spectro S7 hubs are not
suitable for tandems, trademen’s
delivery bicycles and similar.
ASSEMBLY SHIFTER
AND CLICKBOX

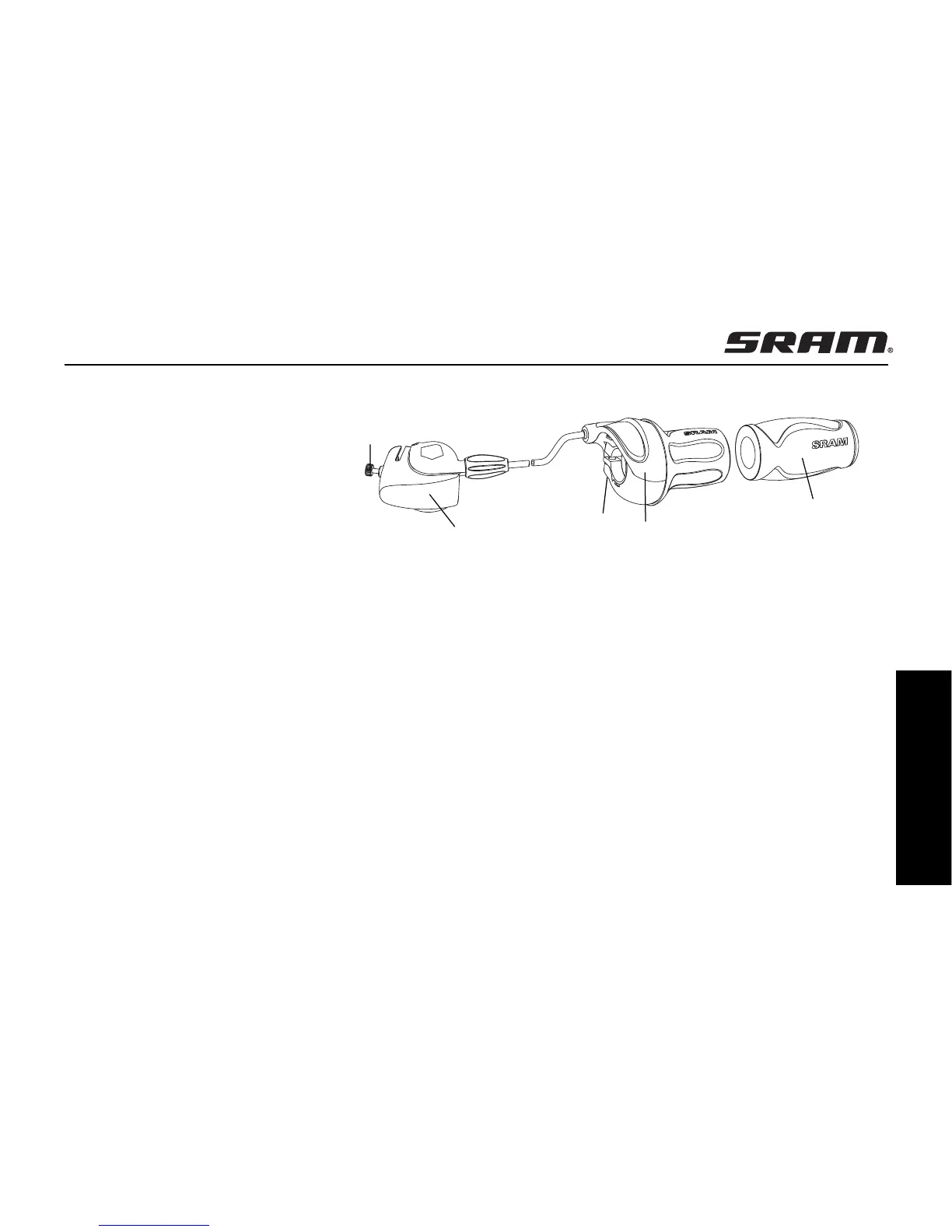

• Slide shifter (1, Fig 5) onto
handlebar.
• Mount fixed grip (2) onto end
of handlebar.
• Slide shifter against fixed grip,
adjust shifter on handlebar and
tighten with bolt (3) with a
torque of 1.5 Nm (13 in. lbs.).
Caution:
• Check that the shifter and
brake lever function properly
and are unobstructed (realign
if necessary).
• Fixed grips provide an axial
safety function. For this reason,
they should be mounted in such
a way as to make sure they do
not slip off handlebar.
• Never use lubricants or sol-
vents to install fixed grips.
• Never ride without the fixed
grips. The turning grip may
loosen from housing and slip
off handlebar – this can result
in severe injury or death.
• When fitting the cable avoid
small radius. Attach the cable
3 times to the down tube.
• Last attachment point is on
the lower rear wheel fork
immediately behind the chain
wheel.
Cable housing must be
movable inside attachment.
• Place shifter in gear position „1“.
• Push on Clickbox (4, Fig. 5) to
the stop on the axle. The red
guiding rib of the locating sleeve
thereby engages in the slot on
the housing.
• Tighten knurled bolt (5, Fig. 5)
by hand.
Assembly
5
1
4
5
2
3
