Unit Description

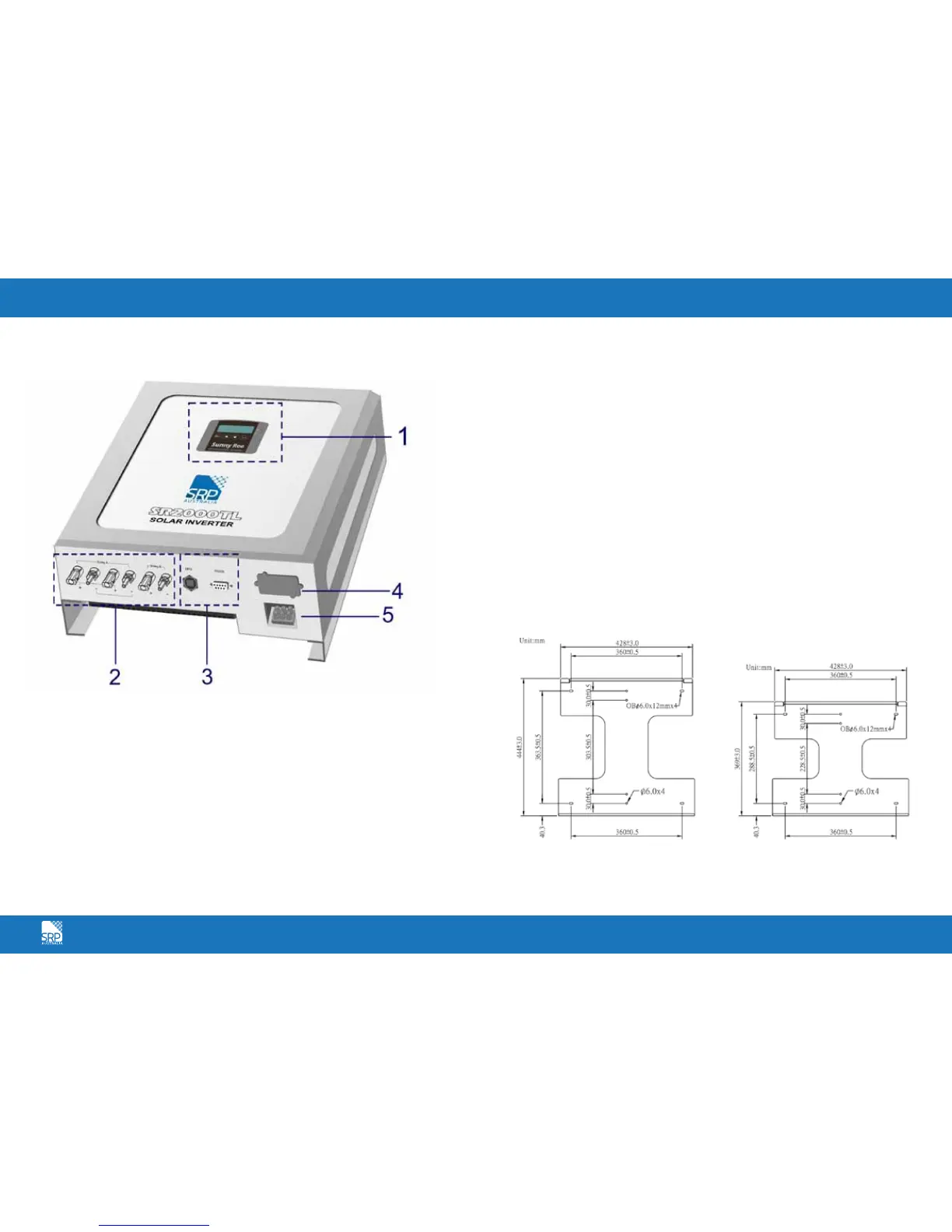

1. LCD & LED Display: Shows the operation information and status of the
inverter.
2. Solar Array Input: Plug-and-play connector terminals for the connection of
the solar modules (The SR1500TL/2000TL/SR3000TL
only have one PV string input).
3. Standard Communication Port : EPO & RS232.
4. Optional Communication Slot: USB, RS485, Dry Contact, TCP/ IP.
5. AC Output Terminal: AC output for the utility supply.
Installation
Please read ‘Important Safety Instructions’ (page 3 & 4) before installing the
SR Series Inverter.
Unpacking
Inspect the SR Series Inverter upon receipt. If damage has occurred during
shipment please notify your specialised dealer immediately. The inverter pack-
aging is recyclable, we encourage you to re-use it or dispose of it properly.
Remove the SR Inverter from its box. Check the package contents.
Standard contents should include:
✓ 1 set of accessories
✓ 1 data CD-ROM
✓ 1 Mounting Frame Accessory Kit (shown below):
SR4200TL/5000TL SR1500TL/2000TL/3000TL
