Installation Requirements
The SR Series Inverter is heavy. Take this weight into
consideration when choosing the installation site and
method of installation.
To ensure proper operation and long operating life, always
position the SR Series Inverter according to the following
requirements:
(1) The SR Series Inverter is designed for
outdoor installation, and should be installed
away from direct sunlight. Increased
ambient temperatures and/or installation
in poorly ventilated and warm indoor
locations may reduce the yield of the PV
system. The optimum ambient temperature
lies within the -25°C to +50°C range.
(2) The SR Series Inverter is designed to be mounted on a vertical wall.
If installing the unit outdoors, make sure that it is not slanting forward.
We advise against installing the unit in a horizontal position.

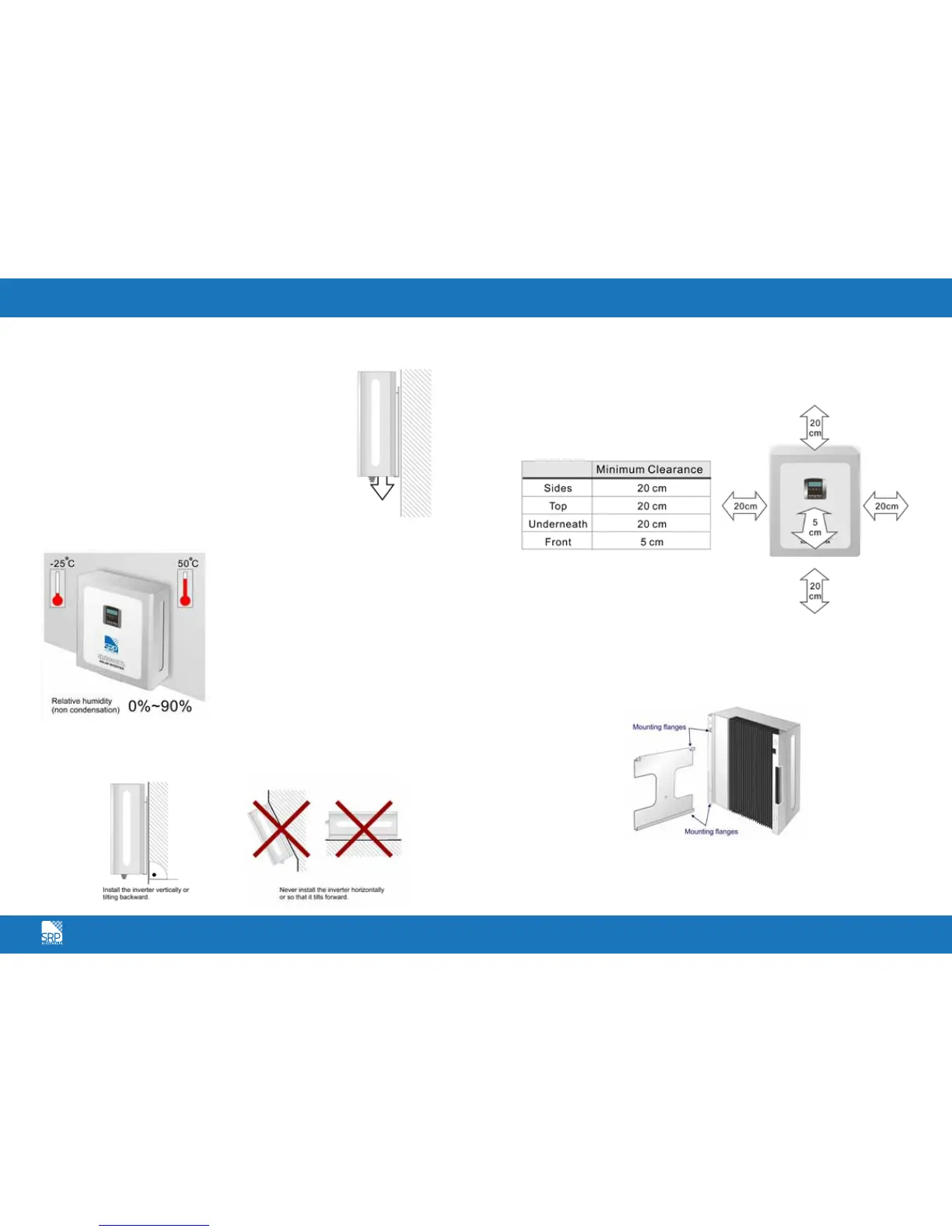

(3) When choosing the installation site, ensure there is enough space for heat
dissipation. Under normal conditions, installers should adhere to the following
guidelines regarding space to be left clear around the inverter:
Mounting the Unit
We recommend that you use the supplied wall mounting bracket to mount
the SR Series Inverter. For vertical installation and installation on solid concrete
or block walls, be sure to take into account the weight of the inverter when
selecting the mounting materials.
If you do not want to use the supplied wall mounting bracket, refer to the
dimensions shown in the drawing above. The procedure for mounting the
inverter using the wall mounting bracket is described on the following pages.
SR1500TL/2000TL/3000TL 23Kg
SR4200TL/5000TL 28Kg
