PIC.11 PIC.12
PIC.13
PIC.14 PIC.15
PIC.17 PIC.18 PIC.19
-4-
5、Insert the wing connector into one of the wings correctly as the picture shows
(PIC.15-PIC.17),and put the aileron servo wire through the fuselage into the canopy as
picture shows (PIC.18,PIC.19).

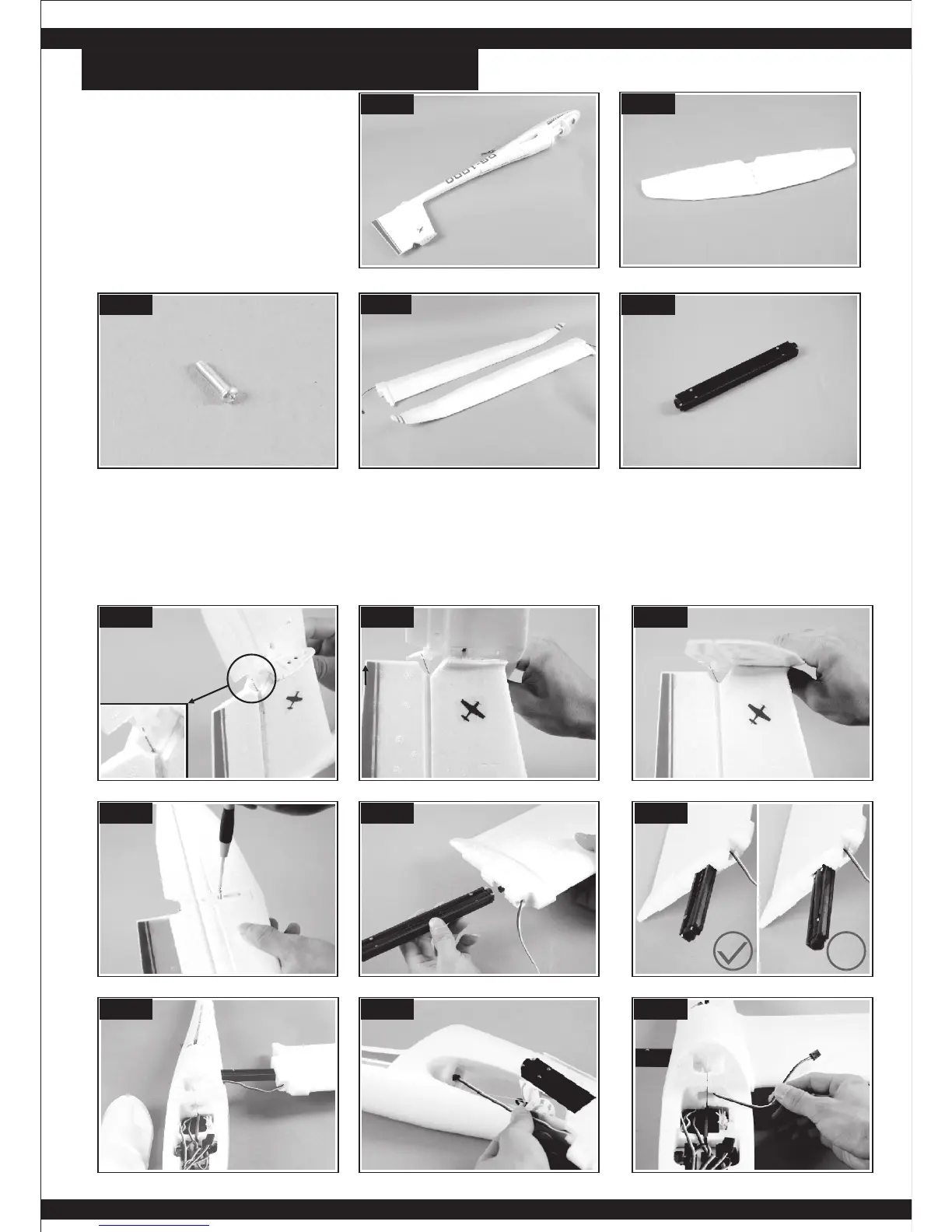

INSTALL THE FUSELAGE
1、Parts for installation:
⑴、Fuselage&Hatch
(PIC.06);
⑵、Horizontal Stabilizer
(PIC.07);
⑶、Screw(PIC.08);
⑷、Left Wing & Right Wing
(PIC.09);
⑸、Wing Connecter(PIC.10);
PIC.07
PIC.06
PIC.08
PIC.09
PIC.10
2、Install the “Z” end of push rod to the horns of elevator ;
3、Install the horizontal stabilizer onto the holder on fin as picture shows(PIC.12,PIC.13);
4、Fix the horizontal stabilizer with the screw to avoid loosening(PIC.14);
(PIC.11)
X
PIC.16
