UM2324 Rev 4 33/43

UM2324 Connectors

The related pinout and the MCU assignment for the ST morpho connectors are listed in

Figure 17 and Figure Note:.

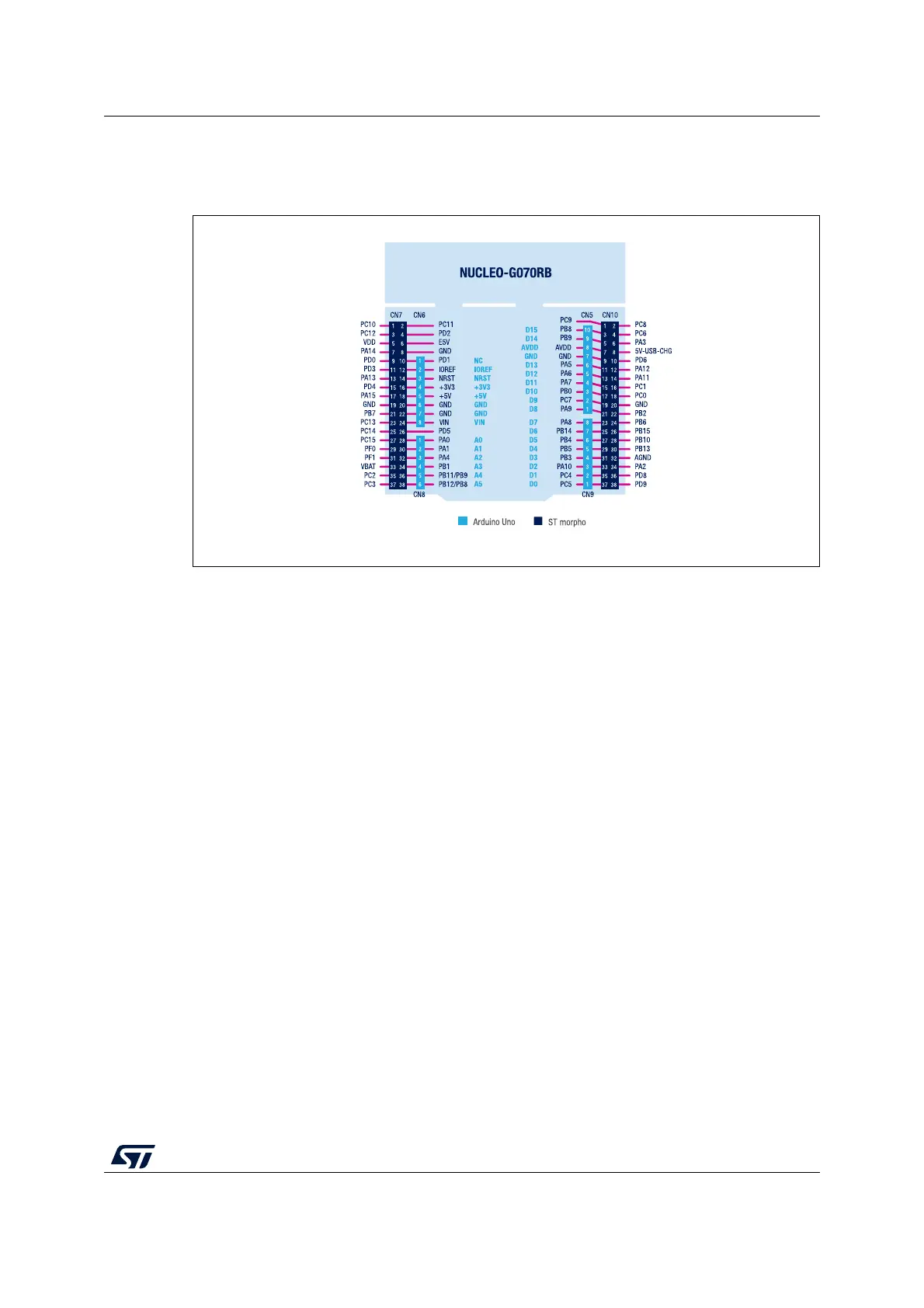

Figure 17. STM32 Nucleo-64 boards ST morpho connector pinout

Note: ARDUINO

Uno V3 D0 and D1 signals are connected by default on USART1 (MCU I/O PA2

and PA3).
