PM0075 Reading/programming the embedded Flash memory
Doc ID 17863 Rev 1 13/31
2.3.2 Unlocking the Flash memory
After reset, the FPEC block is protected. The FLASH_CR register is not accessible in write
mode. An unlocking sequence should be written to the FLASH_KEYR register to open up
the FPEC block. This sequence consists of two write cycles, where two key values (KEY1
and KEY2) are written to the FLASH_KEYR address (refer to Section 2.3.1 for key values).
Any wrong sequence locks up the FPEC block and FLASH_CR register until the next reset.
Also a bus error is returned on a wrong key sequence. This is done after the first write cycle
if KEY1 does not match, or during the second write cycle if KEY1 has been correctly written
but KEY2 does not match. The FPEC block and FLASH_CR register can be locked by the
user’s software by writing the LOCK bit of the FLASH_CR register to 1. In this case, the
FPEC can be unlocked by writing the correct sequence of keys into FLASH_KEYR.
2.3.3 Main Flash memory programming
The main Flash memory can be programmed 16 bits at a time. The program operation is
started when the CPU writes a half-word into a main Flash memory address with the PG bit
of the FLASH_CR register set. Any attempt to write data that are not half-word long will
result in a bus error response from the FPEC. If a read/write operation is initiated during
programming, (BSY bit set), the CPU stalls until the ongoing main Flash memory
programming is over.

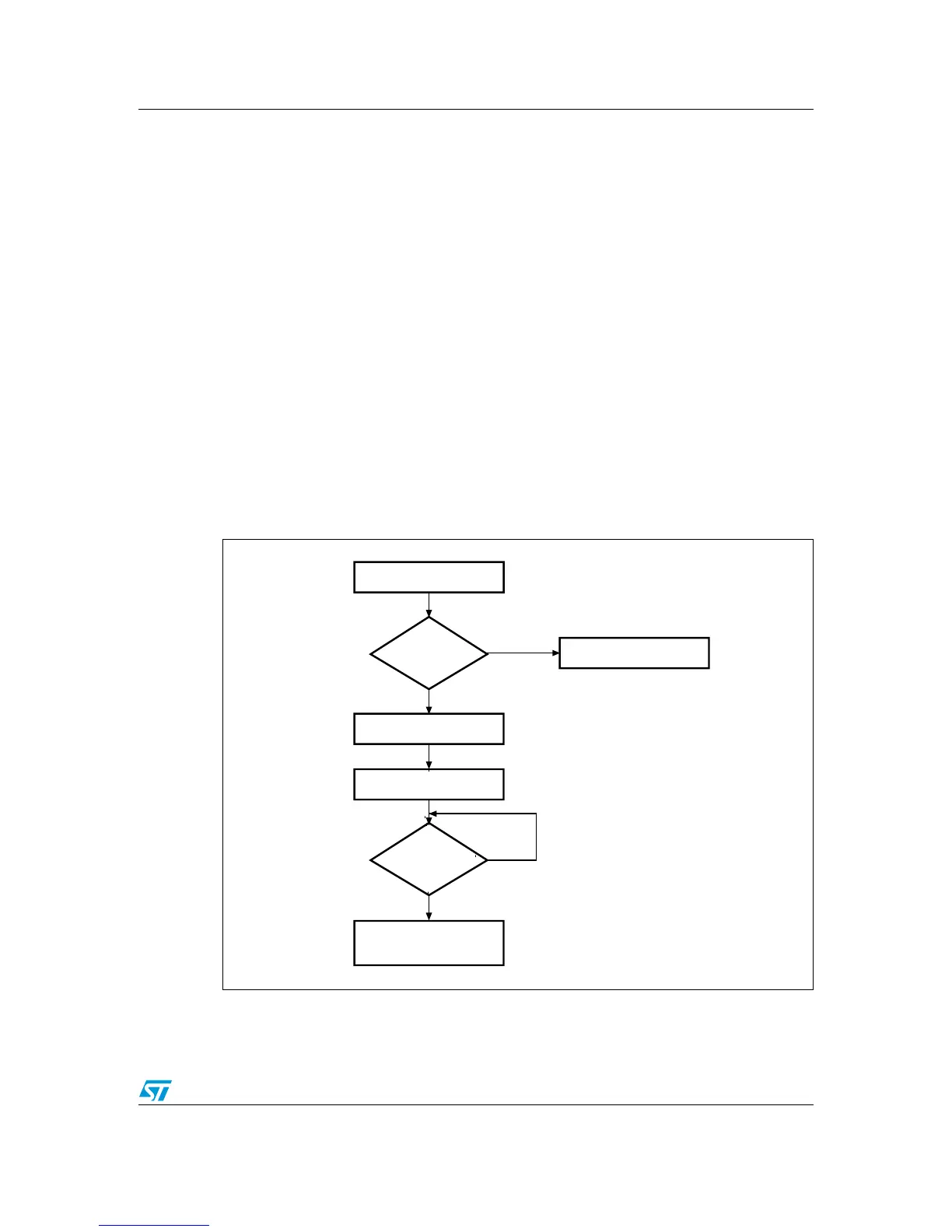

Figure 1. Programming procedure
