internal circuitry (no additional component needed, thanks to fully embedded reset
controller).
• When the internal reset is OFF, the following integrated features are no longer
supported:
– The integrated power-on reset (POR) / power-down reset (PDR) circuitry is
disabled.
– The brownout reset (BOR) circuitry must be disabled.
– The embedded programmable voltage detector (PVD) is disabled.
– VBAT functionality is no more available and V
BAT
pin should be connected to V
DD
.

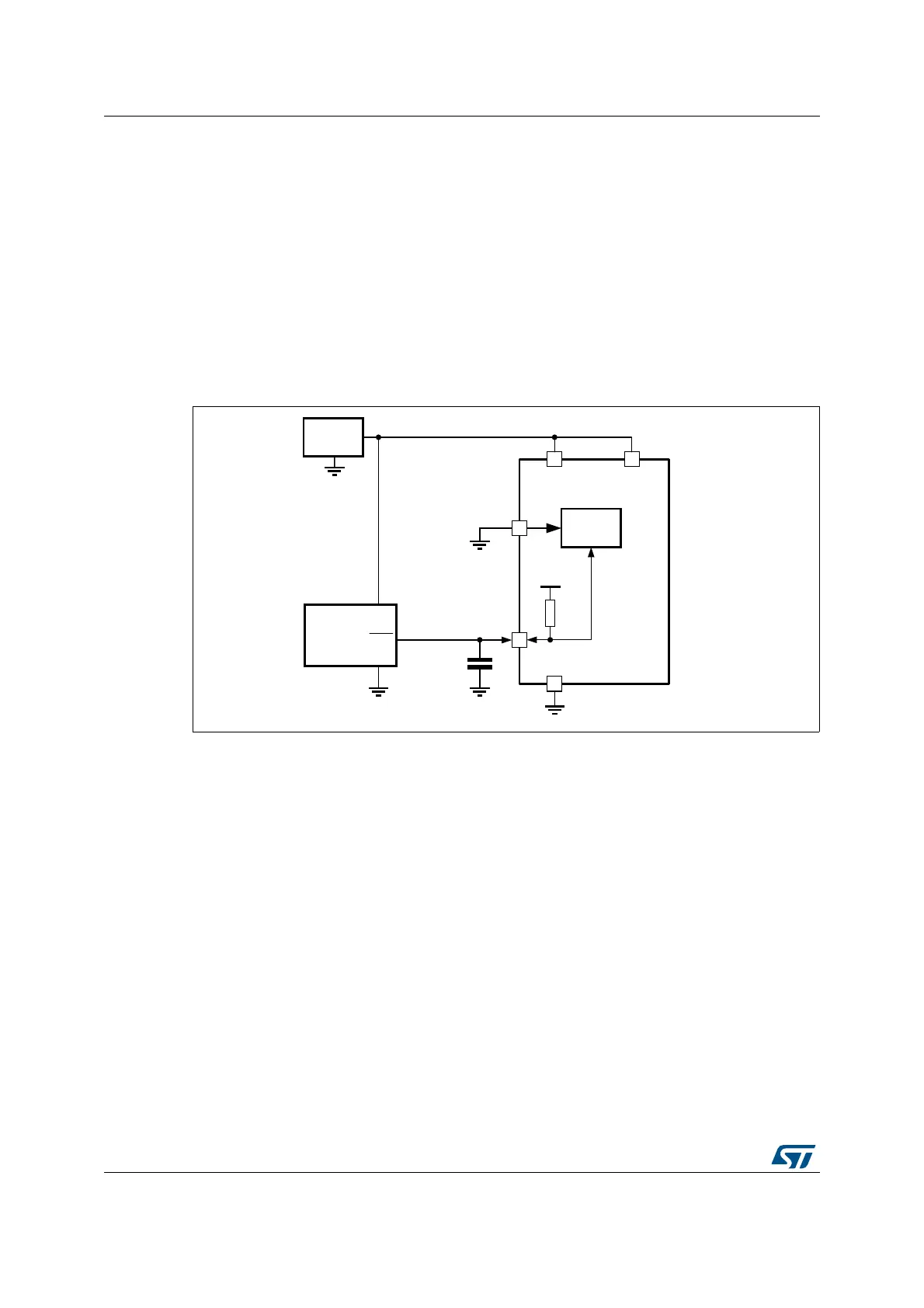

Figure 5. NRST circuitry example (only for STM32F410xx, STM32F411xx,
STM32F412xx, STM32F413xx, STM32F423xx, STM32F446xx, STM32F469xx
and STM32F479xx)
Even with PDR_ON=0, during power up, the NRST is driven low by internal Reset controller
during T
RSTTEMPO
in order to allow stabilization of internal analog circuitry. Refer to
STM32F4xxxx datasheets for actual timing value.
670)
3'5B21
5HVHW
FRQWUROOHU
9ROWDJH
UHJXODWRU
9W\S9PLQ
1567
Nȍ
)
9ROWDJH
VXSHUYLVRU
DFWLYHORZRSHQGUDLQRXWSXW
287
6701
069
9
''
9
''$
9
%$7
9
''
9
66
9
66$
