STA-RITE AN Series - REPAIR PARTS LIST - 1;3 THRU 3;4 HP

8
Model and Horsepower
Key Part No. ANB-30L ANC-30L AND-30L
No. Description Used 1/3 HP 1/2 HP 3/4 HP
1 Motor - 1/3 HP, 60 Cycle - 115/230V 1 AS100BHL – –
1 Motor - 1/2 HP, 60 Cycle - 115/230V 1 – A100CLL –
1 Motor - 3/4 HP, 60 Cycle - 115/230V 1 – – A100DLL
#§2 Water Slinger 1 C69-2 C69-2 C69-2
3 Seal Plate 1 N3-9 N3-9 N3-9
#§4 Gasket - Seal Plate 1 N20-35 N20-35 N20-35
#§5 Shaft Seal 1 U109-6A U109-6A U109-6A
#6 Impeller 1 J105-40P J105-40P J105-42P
#7 Volute Diffuser 1 L1-25P L1-25P L1-25P
#§8 Gasket - Diffuser 1 N20-34 N20-34 N20-34
9 Pump Body - Assembly 1 N176-24TC N176-24TC N176-24TF
9A Venturi (1) N32P-66 N32P-66 N32P-75
9B Nozzle (1) N34P-17 N34P-17 N34P-21
10 Priming Plug - 3/4” NPT Sq. Hd. 1 U78-60CT U78-60CT U78-60CT
11 Pipe Plug - 1/4” NPT Sq. Hd. 2 U78-57CT U78-57CT U78-57CT
12 Pipe Plug - 1/4” NPT Hex Hd. 1 U78-941ZPV U78-941ZPV U78-941ZPV
13 Barbed Fitting - 1/4” NPT 1 U111-211T U111-211T U111-211T
14 Barbed Elbow - 1/4” NPT 1 U111-212T U111-212T U111-212T
15 Tube 3/8” O.D. x 14-1/2” Lg. 1 U37-672P U37-672P U37-672P
16 Pressure Switch 1 U217-1216 U217-1216 U217-1216
17 Locknut - 1/2” 1 U36-112ZP U36-112ZP U36-112ZP
18 Connector 1 L43-5C L43-5C L43-5C
19 Hex Capscrew - 3/8” - 16 x 1-1/4” Lg. 4 U30-75ZP U30-75ZP U30-75ZP
STA-RITE
STA-RITE
1
2
3
4
5
6
7
8
12
9A
13
10
9
11
9B
19
15
14
16
17
18
1391 1194
REPAIR PARTS LIST

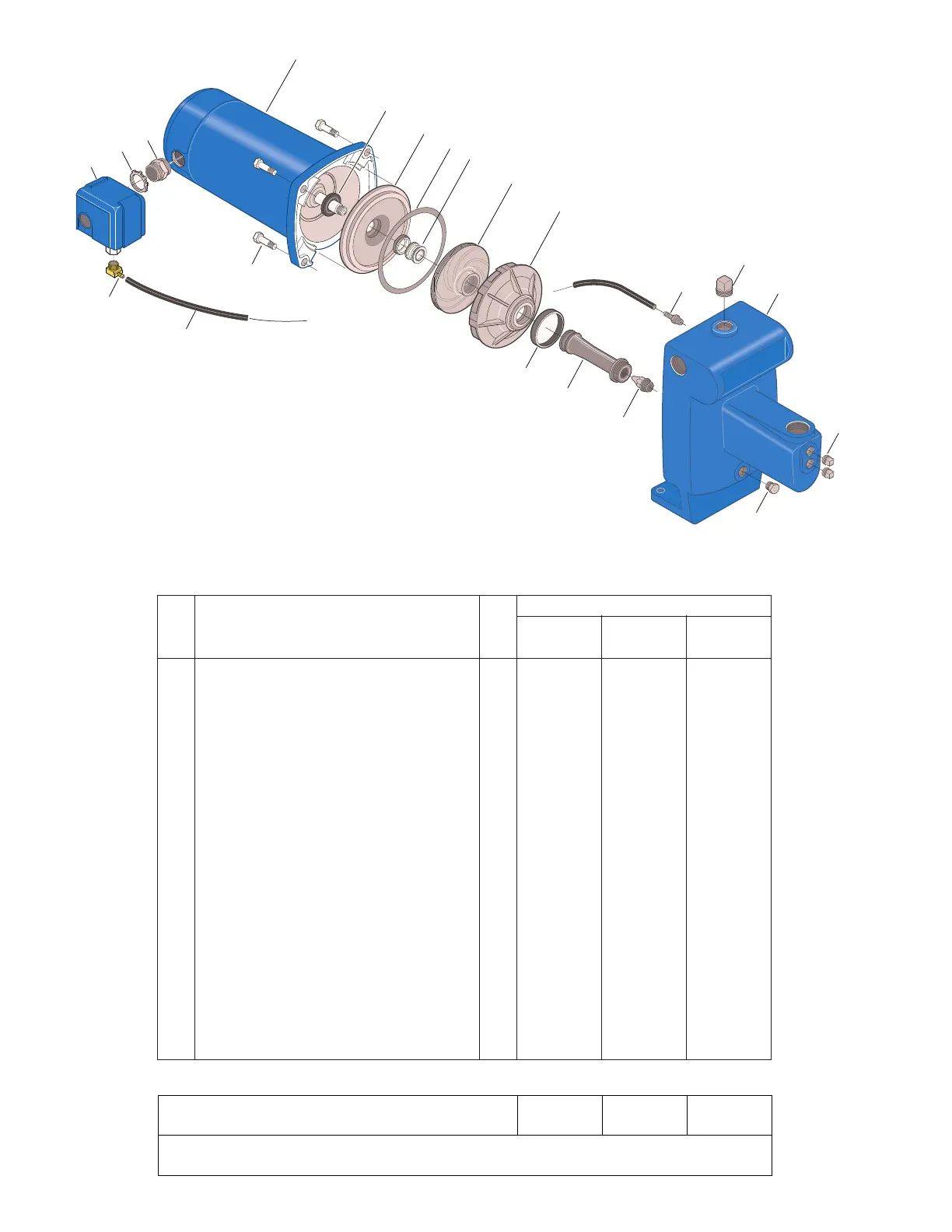

EXPLODED VIEW
“AN” SERIES - 1/3 THRU 3/4 HP
REPAIR PARTS LIST – “AN” SERIES – 1/3 THRU 3/4 HP
§ Seal and Gasket Kit PP1550 PP1550 PP1550
# Overhaul Kit PP1560 PP1560 PP1561
NOTE: § Included in Seal and Gasket Kit.
# Included in Overhaul Kit.
SERVICE KITS
Figure 5
