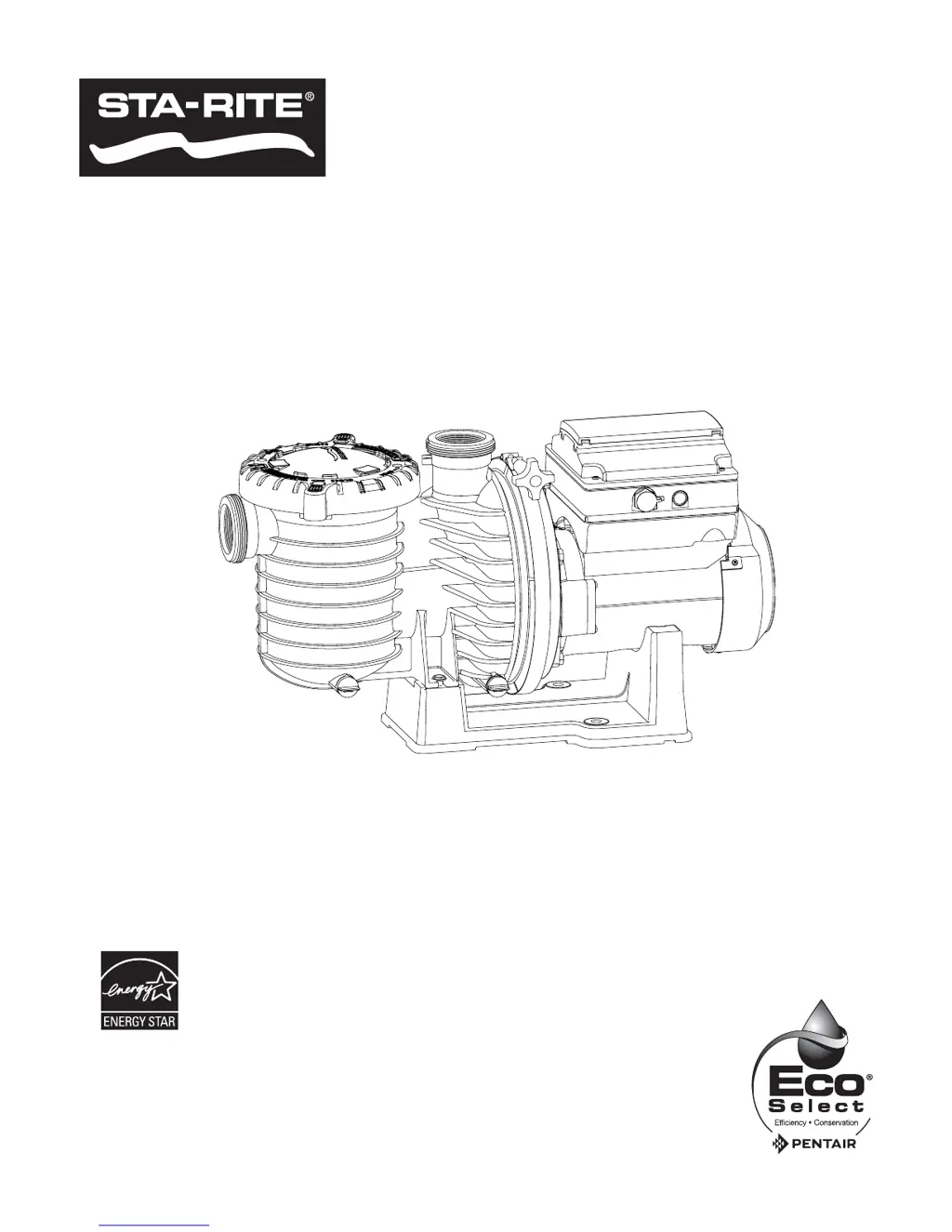

IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS

SAVE THESE INSTRUCTIONS

INTELLIPRO

®

2 VST

INSTALLATION AND

USER’S GUIDE

VARIABLE SPEED PUMP

Table of Contents

Questions and Answers:

R
Rebecca BentonAug 2, 2025
What to do if my STA-RITE INTELLIPRO 2 VST Water Pump has inadequate circulation?
- T
  Thomas EdwardsAug 2, 2025
  If you're experiencing inadequate circulation with your STA-RITE Water Pump, consider these potential causes and solutions: * Check the trap basket for debris. If it's plugged, turn the pump off and clean the basket. * The suction/discharge piping might be too small. If so, increase the piping size. * The speed may be set too slow for proper filtration. Try increasing the filtration run time.
J
Jamie WagnerAug 8, 2025
Why does my STA-RITE INTELLIPRO 2 VST have reduced capacity?
- B
  Bradley BarrettAug 8, 2025
  If your STA-RITE Water Pump is experiencing reduced capacity, consider the following: * There may be air pockets or leaks in the suction line. Inspect the suction piping and valve glands on any suction gate valves. * The impeller might be clogged. Clean any debris from the impeller. If you can't remove the debris, you can remove the diffuser and o-ring, then remove the reverse-thread impeller screw and o-ring. After that remove, clean and reinstall impeller. Reinstall reverse-thread impeller screw and o-ring. Reinstall diffuser, and o-ring. Reinstall motor and seal plate into volute. Reinstall seal plate nuts and volute and tighten securely. * The pump strainer pot could be clogged. Clean the pump strainer pot.
J
joshuaperezAug 15, 2025
How to troubleshoot mechanical noise in STA-RITE INTELLIPRO 2 VST Water Pump?
- R
  Robert TuckerAug 15, 2025
  If your STA-RITE Water Pump is making unusual mechanical noises, consider these potential issues: * There might be foreign matter (like gravel or metal) in the pump impeller. Disassemble the pump, clean the impeller, and follow the pump service instructions for reassembly. * Cavitation could be occurring. Try to improve the suction conditions.
A
Alexis MannAug 20, 2025
What to do if STA-RITE Water Pump doesn't respond to system commands?
- T
  Tracy MoralesAug 20, 2025
  If your STA-RITE Water Pump isn't responding to commands from an IntelliTouch, EasyTouch, SunTouch, or IntelliComm system, it might be due to improper automation setup. Ensure the communication cable is securely connected at both ends. Verify that the pump's local address matches the address used in the IntelliTouch control system. Also, confirm that the pump has been assigned a circuit name on the IntelliTouch control system.
H
Heather JacksonAug 27, 2025
Why is the LCD screen flickering on my STA-RITE INTELLIPRO 2 VST control panel?
- C
  Cynthia SimpsonAug 27, 2025
  If the control panel LCD screen on your STA-RITE Water Pump is displaying sporadically or flickering, it could be due to a loose drive wiring connection. Check the connection between the drive and the keypad.

STA-RITE INTELLIPRO 2 VST Specifications

General

Model	IntelliPro 2 VST
Type	Variable Speed Pool Pump
Programmable Speeds	8
Energy Efficiency	Energy Star Certified
Port Size	2 inch
Control	Digital
Wet End Material	Thermoplastic
Control Interface	Digital Display
Protection Features	Overload Protection

Summary

Customer Service and Technical Support

USA Contact Information

Contact details for Pentair's US customer service and technical support.

Sanford, North Carolina Office

Contact details for the North Carolina office.

Moorpark, California Office

Contact details for the California office.

Important Pump Warning and Safety Instructions

General Safety Warnings

General safety advice and precautions for operating the pump.

Electrical Shock Hazard

Risks associated with electrical shock and GFCI requirements.

Suction Entrapment Hazard

Hazards related to suction outlets and entrapment risks.

Pump Overview

External Control

How the pump can be controlled by automation systems.

Motor Features

Key features of the pump's motor.

Drive Features

Key features of the pump's drive system.

Installation

Location Requirements

Guidelines for selecting an appropriate installation location for the pump.

Piping Recommendations

Advice on plumbing connections for optimal pump performance.

Electrical Installation and Wiring

Guidelines for electrical installation, wiring, grounding, and bonding.

Operating the Pump

Starting and Stopping the Pump

How to start and stop the pump.

Adjusting and Saving Pump Speed

Process for setting and saving pump speeds.

Pump Operating Modes

Overview of Manual, Schedule, and Egg Timer modes.

Control Panel Overview

Explanation of the pump's control panel buttons, LEDs, and LCD screen.

Pump Configuration and Features

Operator Control Panel Menu Guide

A flowchart illustrating the pump's menu structure for settings.

Setting Pump Speeds and Modes

Programming speeds in Manual, Egg Timer, and Schedule modes.

Advanced Features and Controls

Configuring External Control, Time Out, Quick Clean, and Thermal Mode.

Priming Feature Configuration

Settings for pump priming, including speed, time, range, and delay.

Operator Control Panel Quick Reference Guide

A summary of the pump's menu structure for quick access.

Connecting to Automation Systems

IntelliComm Communication Center Setup

Wiring the pump to an IntelliComm communication center.

EasyTouch and IntelliTouch System Connection

Connecting the pump to EasyTouch/IntelliTouch systems.

SunTouch Control System Connection

Wiring the pump to a SunTouch control system.

Maintenance and Servicing

Pump Strainer Basket Cleaning

How to clean the pump's strainer basket.

Winterizing Procedures

Steps to protect the pump from freeze damage.

Motor and Drive Care

Guidelines for caring for the motor and drive components.

Shaft Seal Replacement

Procedures for replacing the pump's shaft seal.

Pump Disassembly and System Alerts

Pump Disassembly and Reassembly

Steps for taking apart and putting back together the pump.

Drive Assembly Removal and Installation

How to remove and install the drive assembly.

Alerts and Warnings Explanation

Explanations of the various alarms and warnings displayed by the pump.

Troubleshooting

Pump Failure and Capacity Issues

Diagnosing and resolving pump failure and reduced capacity.

Electrical and Mechanical Problems

Troubleshooting electrical issues and mechanical noises.

Automation System Communication Issues

Resolving problems with pump response to automation systems.

Replacement Parts

Illustrated Parts List

A diagram and list of pump replacement parts.

Technical Specifications

Pump Dimensions

Visual representation of pump dimensions with measurements.

Electrical Specifications

Details on circuit protection and power requirements.
