INTELLIPRO
®
2 VST Variable Speed Pump Installation and User’s Guide

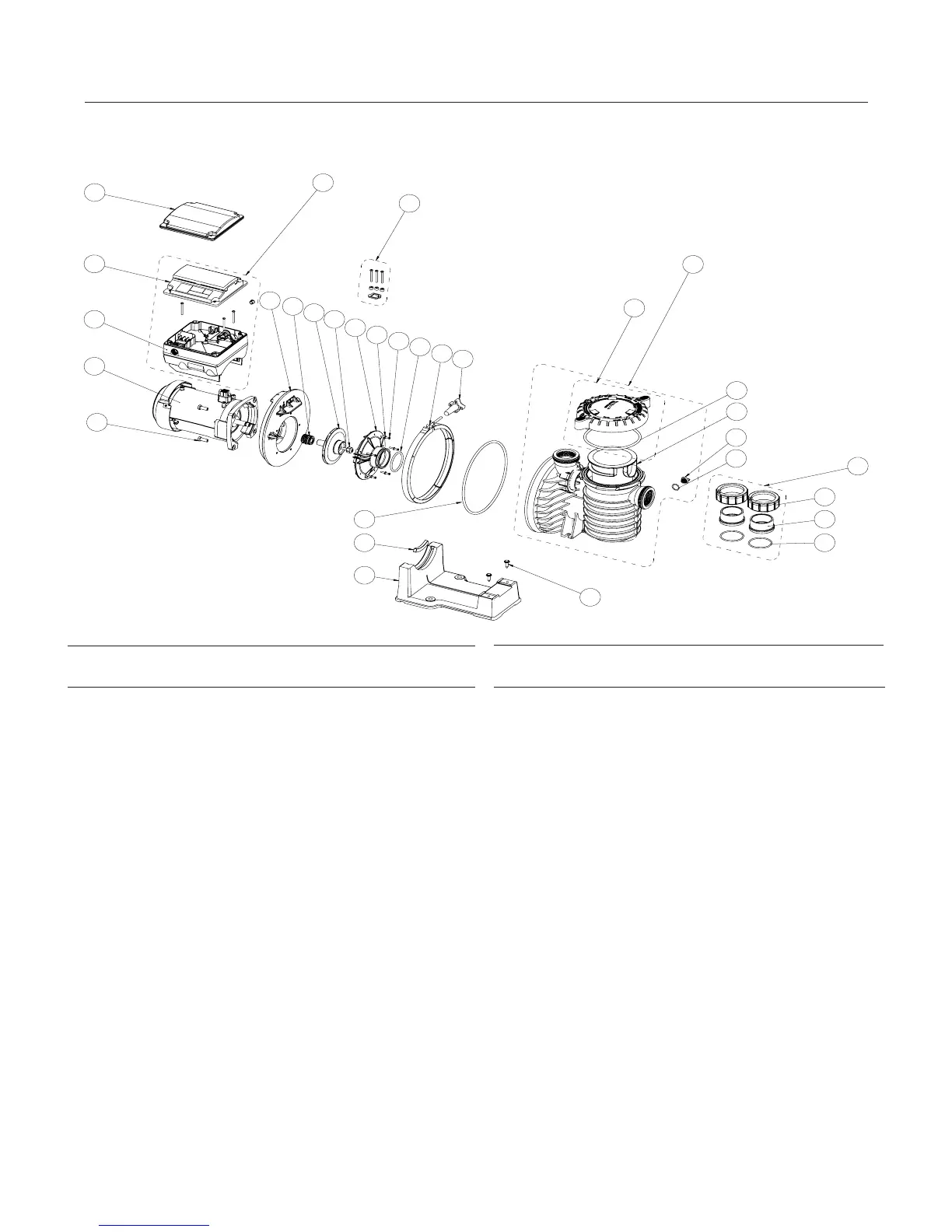

REPLACEMENT PARTS
1
2
3
5
25
26
27
23
24
22
21
20
19
18
17
16
15
14
12
13
11
6
7
8
9
10
29
30
28
31
4
IntelliPro
®
2 VST Variable Speed Pump Replacement Parts (Black Colored Pumps)
Item Part
No. No. Description
1 356893Z DRIVE KIT W/ KEYPAD (Includes Item #2, 7
and 8)
2 355685 DRIVE HARDWARE KIT (Includes Drive
Screws, Drive Gasket and Screw Caps)
3 17307-0110S TANK BODY ASSEMBLY (Includes Trap Cover
and Item #21-24)
4 17307-0111S
TRAP COVER ASSEMBLY (Includes Trap Cover
and Item #21)
5 42001-0402 2” SLIP UNION HALF KIT (Includes Item #25-27)
6 356905Z KEYPAD RELOCATION KIT (Includes Keypad
Relocation Cable and Blank Drive Cover)
7 358527Z KEYPAD ASSEMBLY KIT
8 356892Z DRIVE KIT
9 350306S MOTOR 3.2KW FERRITE BLK
10 U30-74SS 3/8-16 X 1” HEX HEAD SS (Qty. 4)
11 C103-194P SEAL PLATE
12 17351-0101S SHAFT SEAL, EPDM BLACK
13 C105-238PLA IMPELLER ASSEMBLY
14 37007-6080 IMPELLER SCREW
15 C1-271P DIFFUSER
16 U43-21SS #8 EXT TOOTH WASHER (Qty. 5)
Item Part
No. No. Description
17 U30-922SS DIFFUSER SCREW
18 U9-374 DIFFUSER O-RING
19 C19-37a V-CLAMP
20 WC-36-22 CLAMP, KNOB
21 35505-1440 TRAP O-RING, 6.90 O.D. 6.35 I.D.
22 C8-58P TRAP BASKET
23 U78-920P DRAIN PLUG (Qty. 2)
24 U9-359 DRAIN PLUG O-RING (Qty. 2)
25 U11-200PS UNION COLLAR (Qty. 2)
26 U11-196PS 2” SLIP ADAPTER (Qty. 2)
27 U9-362 O-RING, #2-231 (Qty. 2)
28 U30-918 BASE SCREW, 5/16-14 X 1 IN LG HI-LO HEX
(Qty. 2)
29 C35-11 MOTOR PAD
30 C4-78P MOTOR BASE
31 U9-228A TRAP COVER ASSEMBLY O-RING
* 350122 50 FT. COMMUNICATION CABLE
* 354045 POWER END INTELLIPRO 2 VST
Note: (*) Items not shown
