STA-RITE INTELLIPRO 2 VST - Pump Overview; External Control; Motor Features; Drive Features

1
INTELLIPRO
®
2 VST Variable Speed Pump Installation and User’s Guide
PUMP OVERVIEW
The IntelliPro
®
2 VST Variable Speed Pump can
be programmed to run at specific speeds and time
intervals for maximum operating efficiency and energy
conservation for a variety of inground pools.
External Control
IntelliTouch
®
, EasyTouch
®
, SunTouch
®
Control Systems and
IntelliComm
®
Communication Centers can remotely control the
IntelliPro 2 VST pump. The pump’s communications address
and other functions are accessible from the pump’s control
panel.
• The pump can operate from 450 RPM to 3450 RPM
with four preset speeds of 750, 1500, 2350 and 3110
RPM
• The pump can be adjusted from the control panel to
run at any speed between 450 RPM to 3450 RPM
for different applications
• Up to 8 programmable speeds
• Pump control panel alarm LED and error messages
warn the user against under and over voltage, high
temperature, over current and freeze protection
• Communicates with EasyTouch
®
, IntelliTouch
®
or
SunTouch
®
Control Systems or an IntelliComm
®
Communication Center via a two-wire RS-485
cable connection
• Self-priming for easy start-up
• Compatible with most cleaning systems, filters, and
jet action spas
• UL/CUL/NSF Listed
• RS-485 commincation cable included
• IntelliTouch systems control 8 IntelliPro pumps using 8
speeds per pump.
• EasyTouch
systems control 2 IntelliPro pumps using 8
speeds per pump.
• SunTouch systems control one IntelliPro pump using 8
speeds.
• IntelliComm systems control one IntelliPro pump using
the 4 External Control programs.
Motor Features
• Permanent Magnet Synchronous Motor (PMSM)
• High efficiency (3450 RPM 92% and 1000 RPM 90%)
• Superior speed control
• Operates at lower temperatures due to high efficiency
• Designed to withstand outdoor environment
• Totally Enclosed Fan Cooled (TEFC) Motor, IPX5
Rated
• Three-phase motor
• 56 Square Flange
• Low noise
Drive Features
• Active Power Factor Correction
• UL 60730 Compliant
• Rotatable Keypad
• Easy Overhead Wiring
• High Drive Operational Efficiency
Drive Assembly and Control Panel
The IntelliPro 2 VST pump drive is designed to produce
maximum motor operational efficiency. The drive
controls the motor’s rotational speed by controlling the
frequency of the supplied current. It also protects the
motor and pump from operating outside of their intended
operating parameters.
The control panel can be mounted on the pump in four
different directions in order to provide the user the best
access. The control panel can also be mounted in a
more convenient location with the help of the keypad
relocation kit.

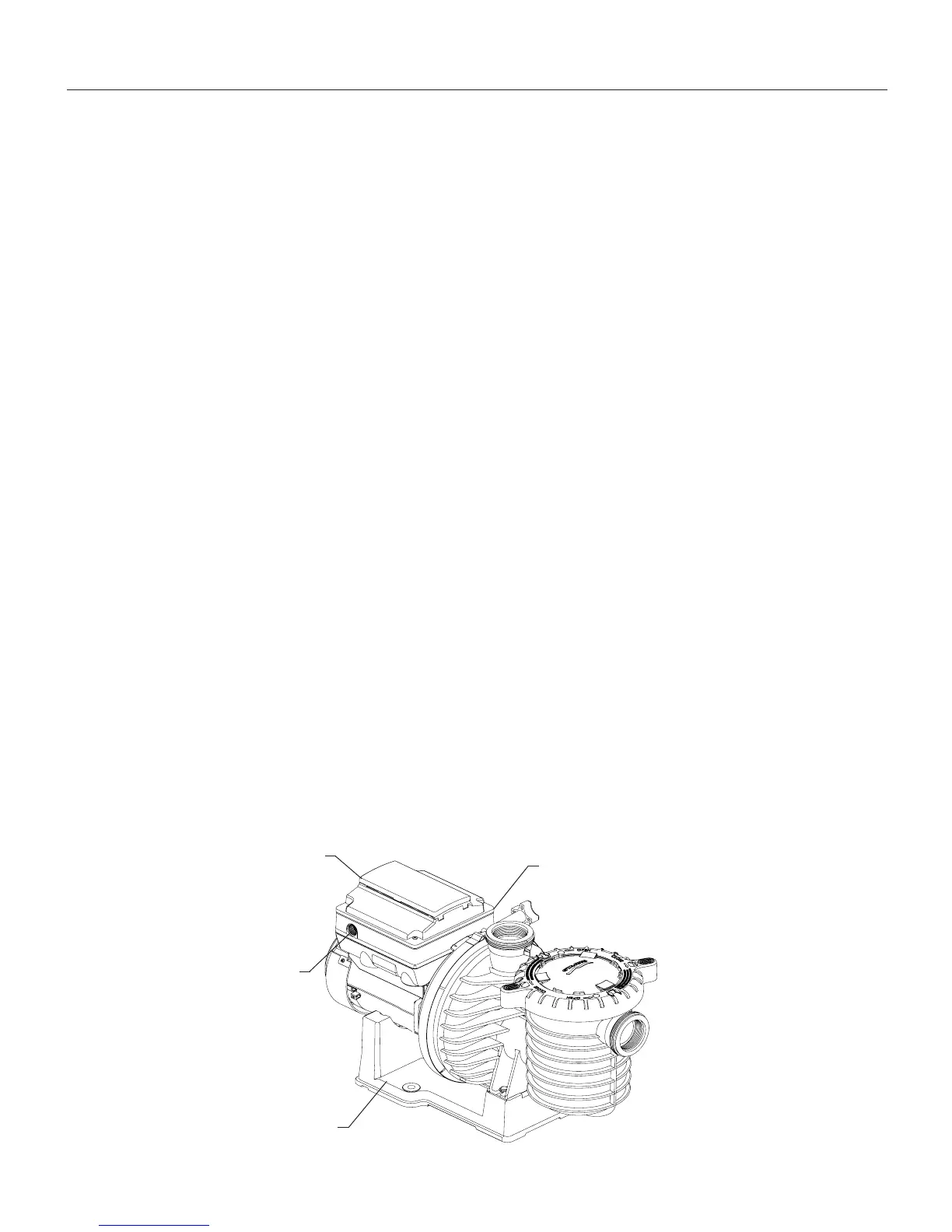

IntelliPro 2 VST Variable Speed Drive Assembly
Motor Stand
Operator Control Panel Cover
(Buttons and LED Beneath)
AC Power Connection
Compartment
Communication port for connection to
EasyTouch, IntelliTouch or SunTouch
control system or IntelliComm
communication center via two-wire
RS-485 cable (not shown)
