STA-RITE JWPA5C - WIRING AND REMOTE SWITCHING; Permanent connection, GFCI use, and cord alteration warnings.

Wiring:
Do not alter cord or plug on cord-connected units. Plug in to a GFCI pro-
tected, grounded outlet only. If plug and outlet do not match, consult a
licensed electrician.
Pump must be permanently connected to circuit. Table I, Page 5, gives cor-
rect wire and circuit breaker sizes for the pump alone. If other lights or
appliances are also on the same circuit, be sure to add their amp loads to
pump amp load before figuring wire and circuit breaker sizes. (If unsure how
to do this or if this is confusing, consult a licensed electrician.) Use the load
circuit breaker as the master on-off switch.
Install a Ground Fault Circuit Interrupter (GFCI) in circuit; it will sense a
short-circuit to ground and disconnect power before it becomes dangerous
to pool users. For size of GFCI required and test procedures for GFCI, see
manufacturer’s instruction.
In case of power outage, check GFCI for tripping (which will prevent normal
pump operation). Reset if necessary.
NOTICE: If you do not use conduit when wiring motor, be sure to seal wire
opening on end of motor to prevent dirt, bugs, etc., from entering.
6
BONDING
LUG
MOTOR NAMEPLATE
GREEN
GROUND
SCREW
MOTOR
CANOPY
THROUGH
BOLTS
White
230
Volt
Lines
A
B
L2
L1
Blue
SINGLE
VOLTAGE
MOTORS
DUAL
VOLTAGE
MOTORS
A
B
L2
L1
White
w/Black
Tracer
Black
115
Volt
Lines
A
B
L2
L1
White
w/Black
Tracer
Black
230
Volt
Lines

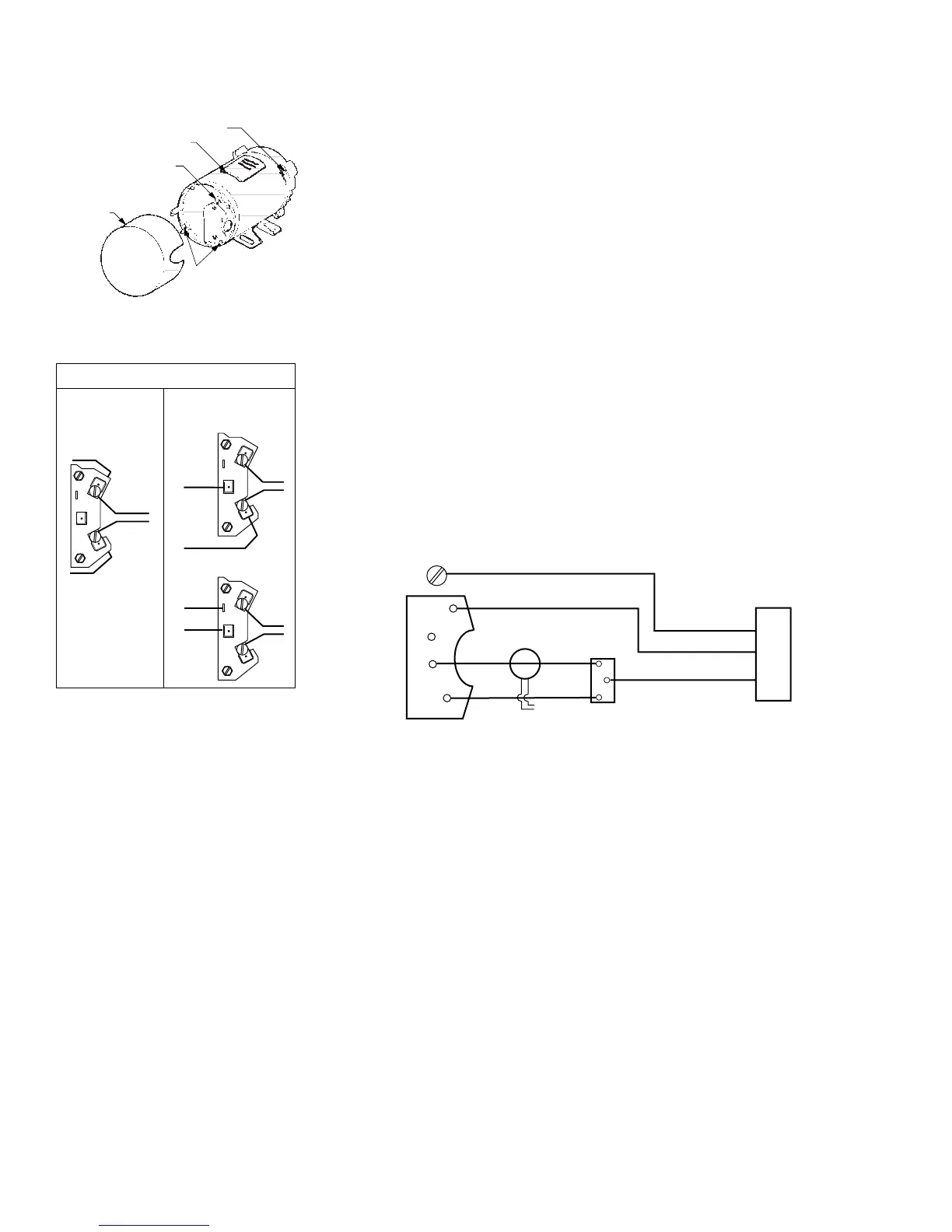

Motor Terminal Board Connections
A: Typical ground screw and bond-
ing lug locations.
Figure 2 – Electrical connections for
single speed models; motor terminal
block and bonding.
B. Motor terminal block connections.
L2
B
A
L1
Lo
Hi
Timer Motor
Supply
Lo
Hi
Circuit
Protector
Remote
SPDT
Switch
Ground
(Green)
Common
Remote Switching For 2-Speed Pumps
Timer (optional)
Low Speed Only
Minimum switch and timer amp rating must equal Branch Fuse Rating
given in "Recommended Circuit Breaker Size and Wiring Data" table.
3170 0398
