MAX-E-PRO
®
Pool and Spa Pump Installation and User’s Guide
Parts List (for Models P6EA6D36-204 and P6EA6E36-205)
For quick disconnect pipe connections,
purchase separately:
Pkg. 188 2” Slip 1/2 Union Kit or
Pkg. 189 2” NPT 1/2 Union Kit.
Kit Includes:
U11-200PS Union Collar
U9-362 O-Ring
U11-196PS 2” Slip adapter OR
U11-199P 2” NPT adapter.
Box A
Item # Part # Part Description Qty.
1
See Table on
Page 11
Motor 1
2 U30-692SS Screw, #10-32 x 1/2” 1
2A U43-22SS Lock Washer 1
3 U17-568 Bonding Lug 1
4 C2-84 Pump Adapter 1
5 U30-74SS Screw, 3/8-16 x 1” Hex Head 4
6 U30-754SS Stub Shaft Pins 3
7 C10-41SS Stub Shaft 1
8 17351-0009 Water Slinger 1
9 C203-194P Seal Plate Kit (Incl. Item# 10-11) 1
10
U9-228A
O-Ring, Seal Plate to Housing (for
pumps built before January 2015)
1
357099
Gasket, Seal Plate to Housing (for
pumps built in February 2015 or later)
11 17351-0101S Shaft Seal 1
12 C19-37A Band Clamp 1
13 WC36-22 Band Clamp Knob 1
14
See Table on
Page 11
Impeller 1
- 35505-1426 Impeller Screw O-Ring 1
-
See Table on
Page 11
Impeller Screw 1
15
See Table on
Page 11
Diffuser 1
16 U9-374 Diffuser O-Ring 1
16 357098Z Diffuser O-Ring (Blue Coating) 1
17 U43-21SS Lock Washer, #8 5
18
U30-922SS Screw (w/C1-271P Diffuser)
5
U30-542SS Screw (w/C1-271P1 Diffuser)
Item # Part # Part Description Qty.
19 17307-0110S Trap Body Assembly (Incl. Item# 20-23) 1
20 17307-0111S
Trap Cover Assembly (Incl. Trap Cover
and Item# 21)
1
21 35505-1440 Trap O-Ring 1
22 C8-58P Basket 1
23 U178-920P Drain Plug, 1/4” NPT 2
24 U43-41SS Washer, Motor Base 2
25 U30-918SS Screw, Motor Base 2
26
See Table on
Page 11
Motor Base 1
27
See Table on
Page 11
Motor Pad 1
(-) Note: Not shown
1
6
9
15
18
17
14
8
25
7
26
27
13
10
11
24
3
2
2A
5
4
23
21
20
22
19
16
12
See Box A for Union
Part Numbers

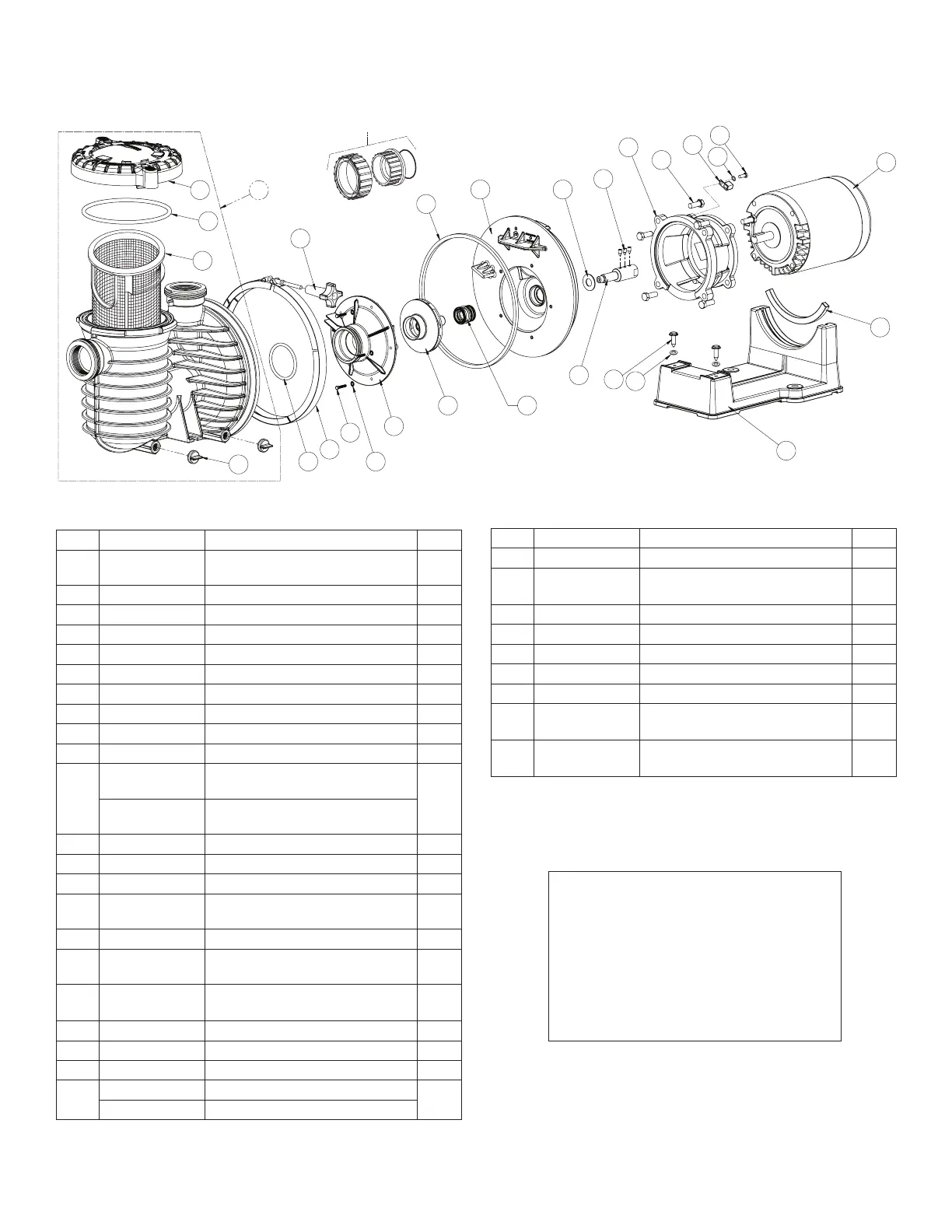

Exploded Parts View (for Models P6EA6D36-204 and P6EA6E36-205)
