MAX-E-PRO
®
Pool and Spa Installation and User’s Guide
REPLACEMENT PARTS
Parts List (for P6E, P6EA, P6R and P6RA Models)
For quick disconnect pipe connections,
purchase separately:
Pkg. 188 2” Slip 1/2 Union Kit or
Pkg. 189 2” NPT 1/2 Union Kit.
Kit Includes:
U11-200P Union Collar
U9-362 O-Ring
U11-196P 2” Slip adapter OR
U11-199P 2” NPT adapter.
Box A
Item # Part # Part Description Qty.
1
See Table on
Page 11
Motor 1
2 C203-194P Seal Plate Kit (Incl. Item# 3-4) 1
3
U9-228A
O-Ring, Seal Plate to Housing (for
pumps built before January 2015)
1
357099
Gasket, Seal Plate to Housing (for
pumps built in February 2015 or later)
4 17351-0101S Shaft Seal 1
5 C19-37A Band Clamp 1
6 WC36-22 Band Clamp Knob 1
7
See Table on
Page 11
Impeller 1
8 35505-1426 Impeller Screw O-Ring 1
9
See Table on
Page 11
Impeller Screw 1
10
See Table on
Page 11
Diffuser 1
11
U9-374 Diffuser O-Ring
1
357098Z Diffuser O-Ring (Blue Coating)
12 U43-21SS Lock Washer, #8 5
13
U30-922SS Screw (w/C1-271P Diffuser)
5
U30-542SS Screw (w/C1-271P1 Diffuser)
14 17307-0110S Trap Body Assembly (Incl. Item# 15-18) 1
Item # Part # Part Description Qty.
15 17307-0111S Trap Cover Assembly (Incl. Item# 15-16) 1
16 35505-1440 Trap O-Ring 1
17 C8-58P Basket 1
18 U178-920P Drain Plug, 1/4” NPT 2
19 U30-918SS Base Screw 2
20
See Table on
Page 11
Base 1
21
See Table on
Page 11
Motor Pad 1
22 U30-74SS Screw, 3/8-16 x 1” Hex Head 4
- U27-153
Voltage Sticker - 115/230 Volts (Dual
voltage model’s only)
1
- 357924Z Fan Guard Kit, TEFC/Super-Duty 1
(-) Note: Not shown
3
5
10
12
13
9
8
7
6
11
4
2
1
22
21
20
19
15
16
17
14
18
See Box A for Union
Part Numbers

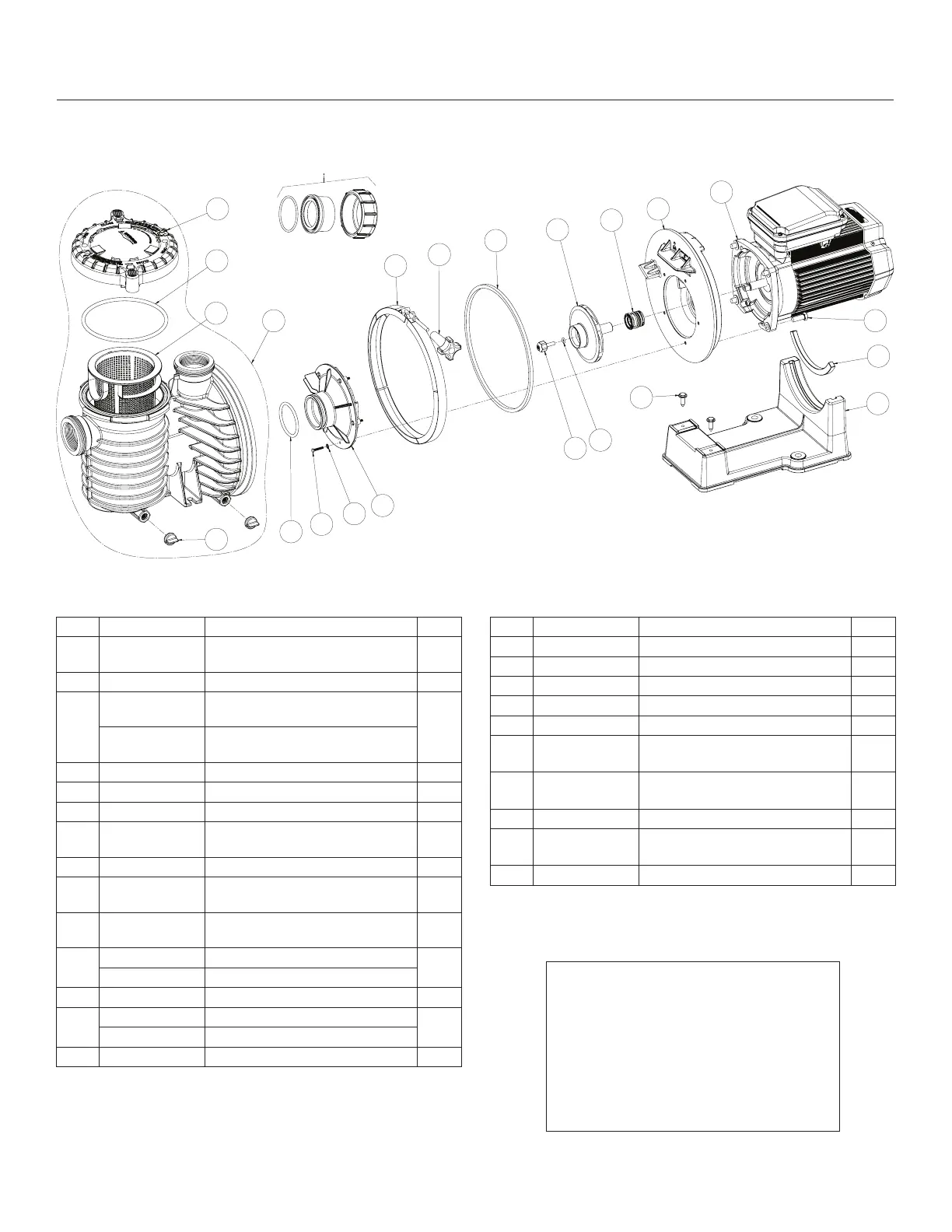

Exploded Parts View (for P6E, P6EA, P6R and P6RA Models)
