STA-RITE Max-E-Therm® - Page 53

P/N S794 Rev. B 6-23-08
52
MAX-E-THERM
®
REPLACEMENT PARTS

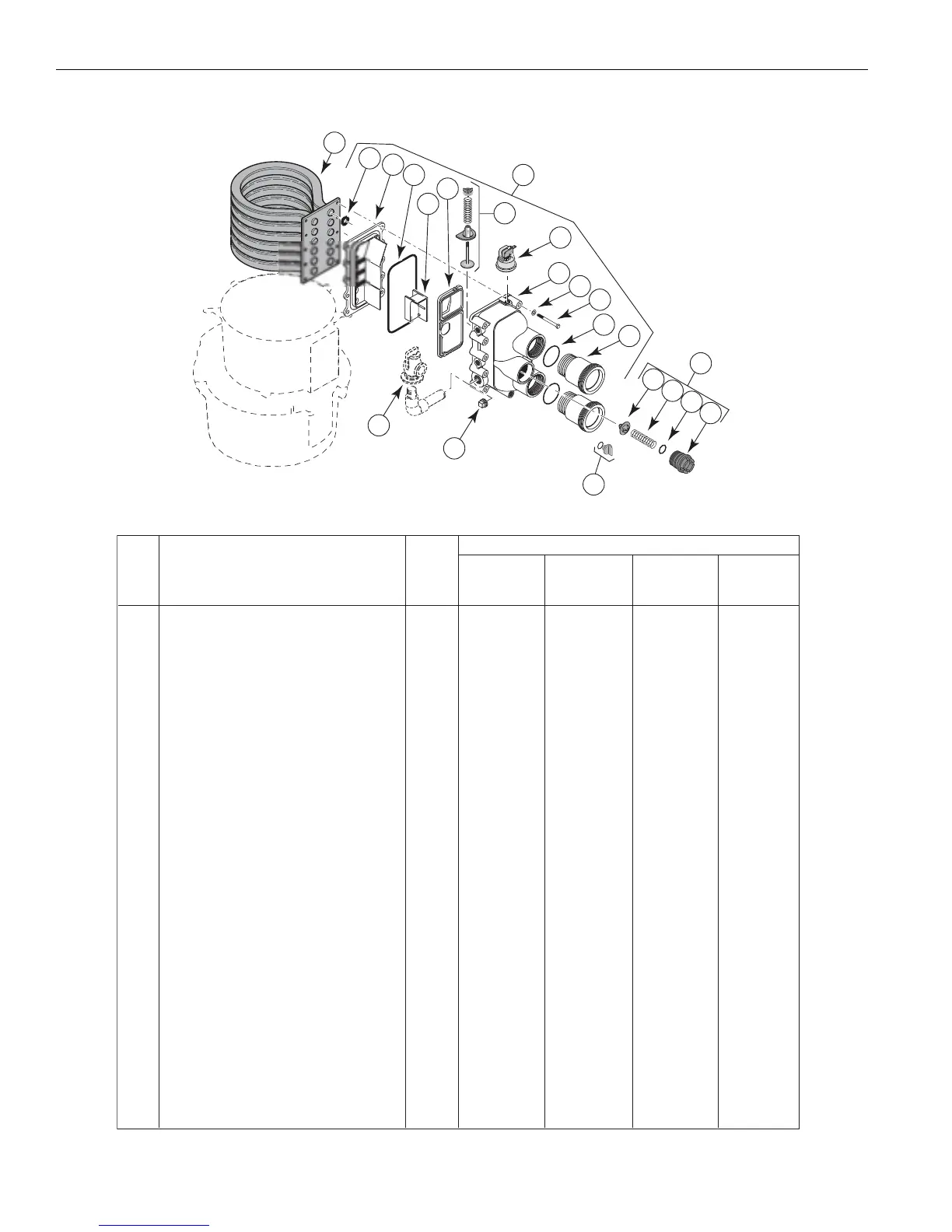

REPAIR PARTS – WATER SYSTEM
* Not available separately.
• Not illustrated.
Model
Key Part
SR200NA
SR200LP
SR200HD
SR333NA
SR333LP
SR333HD
SR400NA
SR400LP
SR400HD
No. Description Qty.
1 Tube Sheet Coil Assembly Kit (NA, LP Series)
(Includes Key No. 3) 1 77707-0232 77707-0233 77707-0234
6 Tube Pressure Vessel Kit (ASME Series)
1
2 Manifold Kit (Includes Key Nos. 3-14, 21, and
Key Nos. 7-9 in “Electrical System”, Page 53 1 77707-0014 77707-0015 77707-0016
3 Coil/Tubesheet Sealing O-Ring Kit ( ) 77707-0117(6) 77707-0118(10) 77707-0119(12)
4
1
Manifold Bottom Plate
5 Manifold O-Ring 1
1
1
•O
• Bypass Access Plug
-Ring Kit (Incl. Key Nos. 3, 5) 1 77707-0120 77707-0120 77707-0120
6 Manifold Insert* 1
7
8
Manifold Baffle Plate
8 Manifold Bypass Valve 1
Manifold Bypass Valve Kit (Includes Install Tool)
1
1
9 Water Pressure Switch 42001-0060S 42001-0060S 42001-0060S
10 Manifold 1
11 5/16" Washer, S.S. 10
12 5/16x18x2-3/4" Hex Cap screw 10
13 Connector Tube O-Ring 2
14 Connector Tube Kit (Includes 1 Connector Tube
and 1 O-Ring) 2 77707-0017 77707-0017 77707-0017
15 Thermal Regulator Kit
(Incl. Key Nos. 16, 17, 18, 19 and Spring Clip) 77707-0010 77707-0010 77707-0010
16 Thermal Regulator (Includes Spring Clip) 38000-0007S 38000-0007S 38000-0007S
17 Thermal Regulator Spring 1
1
1
18 Thermal Regulator Cap O-Ring 1 35505-1313 35505-1313 35505-1313
• Thermal Regulator Spring Clip 1
1
1
19 Thermal Regulator Cap
20 Drain Plug U178-920P U178-920P U178-920P
21 3/4" Pipe Plug 1 U78-60ZPS U78-60ZPS U78-60ZPS
22 Pressure Relief Valve (Recommended -
Purchase Separately) 1 473715Z 473715Z 473715Z
(ASME)
460763 - NA
460764 - LP
460807
1 Tube Sheet Coil Assembly Kit (HD Series)
(Includes Key No. 3) 1 77707-0242 77707-0243 77707-0244
460923
473716Z
1
472648Z
15 Thermal Regulator Kit
(Includes Spring Clip and Install Tools)
1
460924
38000-0007S
473715Z
1
3
20
21
22
4
5
8
9
12
11
10
2
7
6
19
14
15
13
18
17
16
