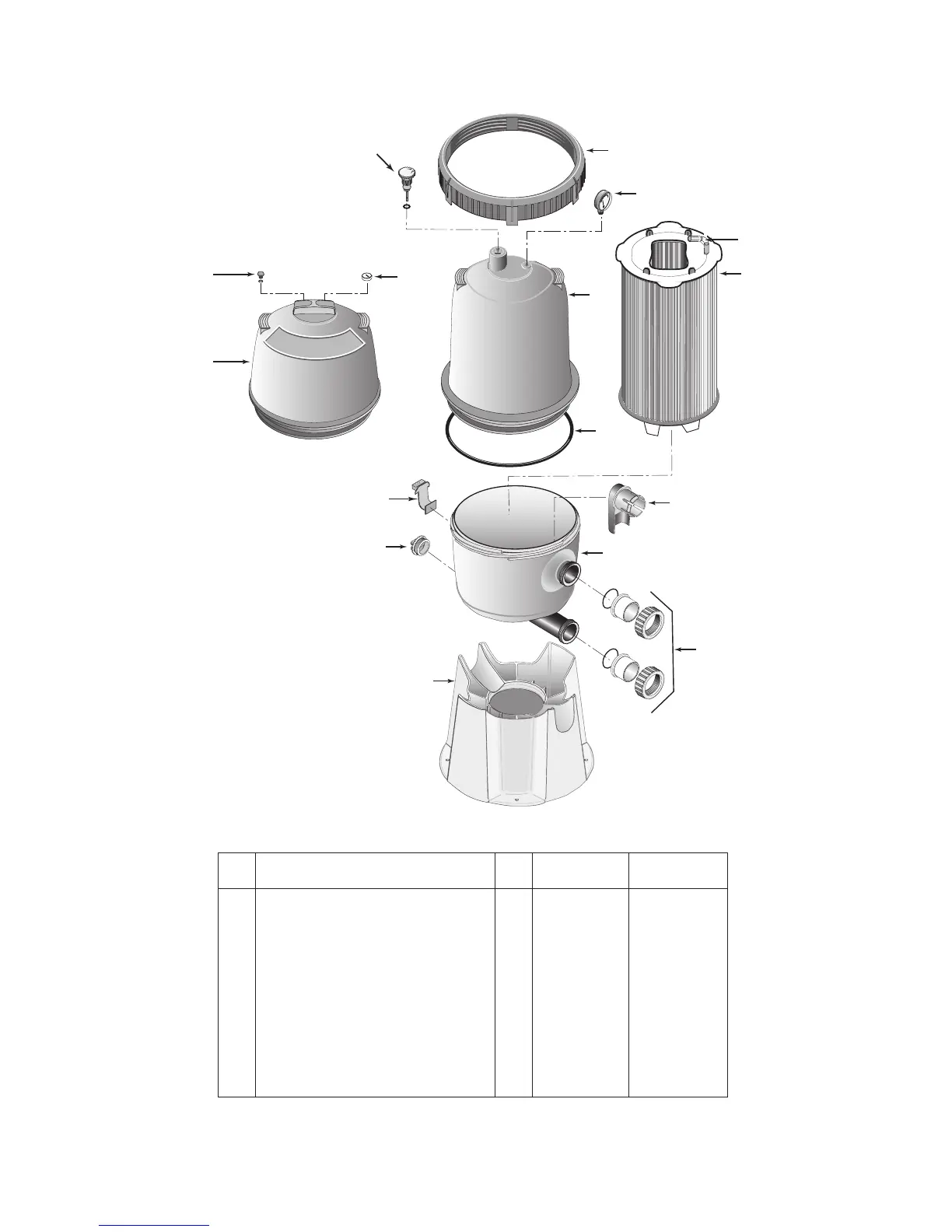

STA-RITE Modular DE Filter PLDE36 - Exploded View; Repair Parts List

10
3
6
4
5
7
8
11
10
9
1
6
A
2
4
3
2
O
P
E
N
C
L
O
S
E
PLDE 36
PLDE 48
12
Key Part
No. Description Qty. PLDE36 PLDE48
1 Posi-Lok™ Ring 1 27001-0054S 27001-0054S
2 Air Release Valve with O-ring 1 25010-0200 24206-0103S
3 Presure Gauge 1 15060-000T 15060-000T
4 Tank Upper Half with Air Relief Valve 1 27001-0020S 27001-0030S
5 Tank O-Ring 1 27001-0061S 27001-0061S
6 Filter Module 1 27002-0036S 27002-0048S
6A Air Bleed Assembly 1 24800-0122 24800-0122
7 Diverter 1 27001-0015S 27001-0015S
8 Tank Lower Half* 1 27001-0016S 27001-0016S
9 Drain Plug 1 27001-0022S 27001-0022S
10 Safety Latch 1 27001-0051 27001-0051
11 Tank Support Base 1 27001-0018S 27001-0018S
12 2" Union Adapter Package (includes 2) 1 PKG 188 PKG 188
REPAIR PARTS LIST
EXPLODED VIEW
* Includes Key Nos. 7, 8, 9, 10.
