STA-RITE P2R Series - SPECIALIZED PUMP REPAIR PARTS; High HP & 230 V Model Parts; Model;Motor;Impeller Cross-Reference (230 V)

13
* Model P2RA5F-125L does not use impeller screw.
** For Model P2RAXG-126LS, see Page 14.
• Not illustrated.
For Parts-Pak parts, see Page 14.

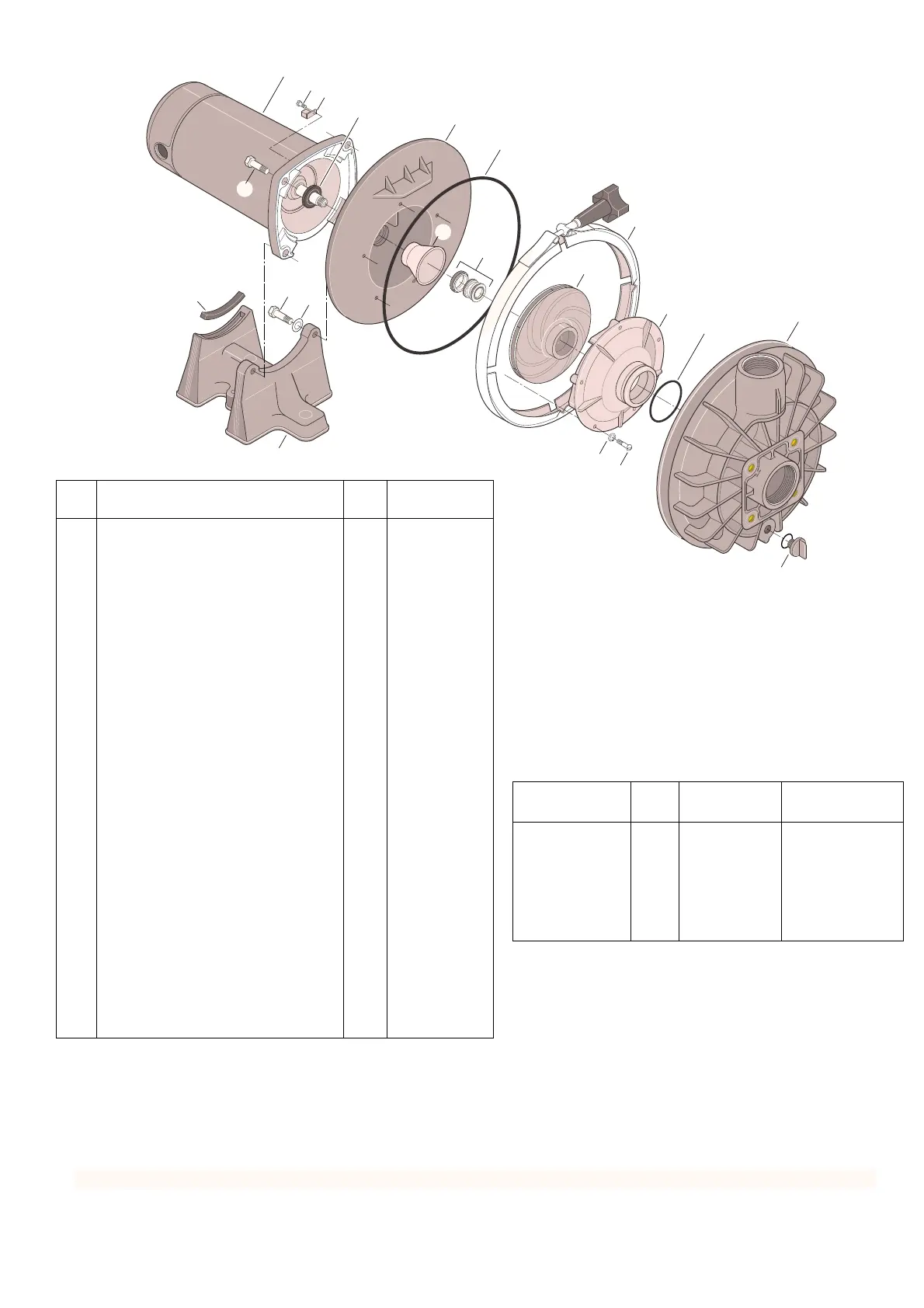

1
2
3
4
19
20
8
5
6
9
10
11
14
15
16
12
13
17
18
7
21
1831 0695
Key Part Part
No. Description Qty. No.
1 Motor 1 Chart at Right
2 Screw #10-32 x 1/2” 1 U30-856ZP
3 Bonding Lug 1 U17-568
4 Water Slinger 1 C69-2
5 Seal Plate 1 C203-137P1
6 O-Ring 1 U9-228A
7 Insert 1 J3-2
8 Shaft Seal 1 U109-93SS
9 Clamp 1 C19-37A
• Clamp Knob 1 WC36-22
10 Impeller 1 Chart at Right
• Impeller Screw* 1 C30-12
11 Diffuser* 1 C1-200PA
12 Screw #8-32 x 7/8” 5 U30-542SS
13 Washer, #8 Lock 5 U43-21SS
14 Diffuser O-Ring 1 U9-226
15 Pump Body 1 C176-47P1
16 Drain Plug 1/4” NPT 1 U178-920P
17 Base w/Motor Pad** 1 C104-42P
18 Motor Pad** 1 C35-11
19 Washer, Flat** 2 U43-42SS
20 Screw 3/8-16 x 1-3/4” Hex Head** 2 U30-77SS
21 Screw 3/8-16 x 1” Hex Head 2 U30-74SS
• Reducer 2” x 1-1/2” 1 C78-7P
• Decal, “Suitable for outdoor use. . .” U27-635
• Voltage Sticker - 230 Volts U27-68
• Tag, “CAUTION Trap” C63-13
• Tag, “IMPORTANT/WARNING/ C63-12
CAUTION. . .”
• Model Plate U33-121
Parts are common to all models listed except as noted:
Key Nos. 1, Motor; and 10, Impeller are listed below.
P2R5 models include 5” trap, Pkg. 115.
P2R6 and P2RA6 models include 6” trap, Pkg. 161.
P2RX and P2RAX models do not include trap.
For trap parts, see Page 15.
P2R6 and P2RA6 models are identical to P2R5 and
P2RA5 models except for trap.
Models with ULS suffix are bulk packed.
Motor No. Impeller No.
Model No. HP Key No. 1 Key No. 10
230 Volt
P2RA5F-125L 1-1/2 A100FLL C105-137PEB
P2RA5G-126L 2 A100GLL C105-137PDBA
P2RA6G-126L 2 A100GLL C105-137PDBA
P2RAXG-126LS 2 A100GLL C105-137PDBA
REPAIR PARTS LIST
P2R and P2RA SERIES
DURA-GLAS
®
POOL PUMP
1-1/2 and 2 H.P. Models
