Key Part Part
No. Description Qty. No.
1 Motor 1 Chart at Right
2 Screw #10-32 x 1/2” 1 U30-856ZP
3 Bonding Lug 1 U17-568
4 Water Slinger 1 C69-2
5 Seal Plate 1 C203-137P1
6 O-Ring 1 U9-228A
7 Insert 1 J3-2
8 Shaft Seal 1 U109-93SS
9 Clamp 1 C19-37A
• Clamp Knob 1 WC36-22
10 Impeller 1 Chart at Right
11 Diffuser* 1 C1-200PA
12 Screw #8-32 x 7/8” 5 U30-542SS
13 Washer, #8 Lock 5 U43-21SS
14 Diffuser O-Ring 1 U9-226
15 Pump Body 1 C176-47P1
16 Drain Plug 1/4” NPT 1 U178-920P
17 Base w/Motor Pad 1 C104-42P
18 Motor Pad 1 C35-11
19 Washer, Flat 2 U43-42SS
20 Screw 3/8-16 x 1-3/4” Hex Head 2 U30-77SS
21 Screw 3/8-16 x 1” Hex Head 2 U30-74SS
• Reducer 2” x 1-1/2” 1 C78-7P
• Decal, “Suitable for outdoor use. . .” U27-635
• Voltage Sticker - 230 Volts U27-68
• Voltage Sticker - 115/230 Volts U27-153
• Tag, “CAUTION Trap” C63-13
• Tag, “IMPORTANT/WARNING/ C63-12
CAUTION. . .”
• Model Plate (P2R Series) 32155-4067
• Model Plate (P2RA Series) U33-121
Parts are common to all models listed except as noted:
Key Nos. 1, Motor; and 10, Impeller are listed below.
P2R5 and P2RA5 models include 5” trap, Pkg. 115.
P2RX and P2RAX models do not include trap.
For trap parts, see Page 14.
For Parts-Pak parts, see Page 14.
* Requires impeller screw, Part No. C30-12.
Motor No. Impeller No.
Model No. HP Key No. 1 Key No. 10
115/230 Volt
P2R5C-120L 1/2 A100CHL C105-92PS
P2R5D-124L 3/4 A100DHL C105-138PEB
P2R5E-125L 1 A100EHL C105-137PEB
230 Volt
P2RA5C-119L 1/2 A100CLL C105-92PR
P2RA5D-120L 3/4 A100DLL C105-92PS
P2RA5E-124L 1 A100ELL C105-138PEB
P2RAXE-124L 1 A100ELL C105-138PEB
P2R5F-126L* 1-1/2 A100FHL C105-137PDBA

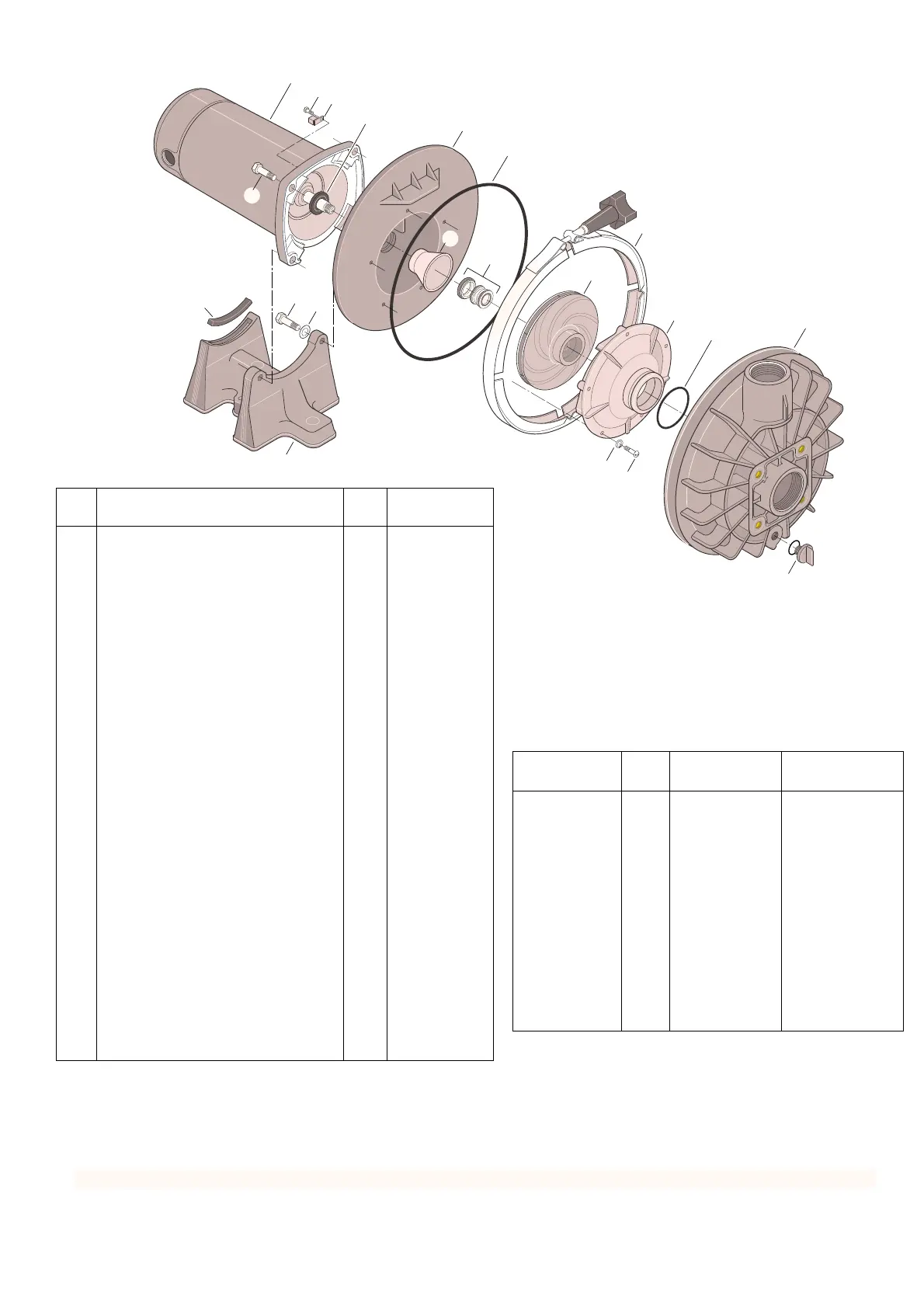

REPAIR PARTS LIST
P2R and P2RA SERIES
DURA-GLAS
®
POOL PUMP
1/2 through 1-1/2 H.P. Models
To Next Page
