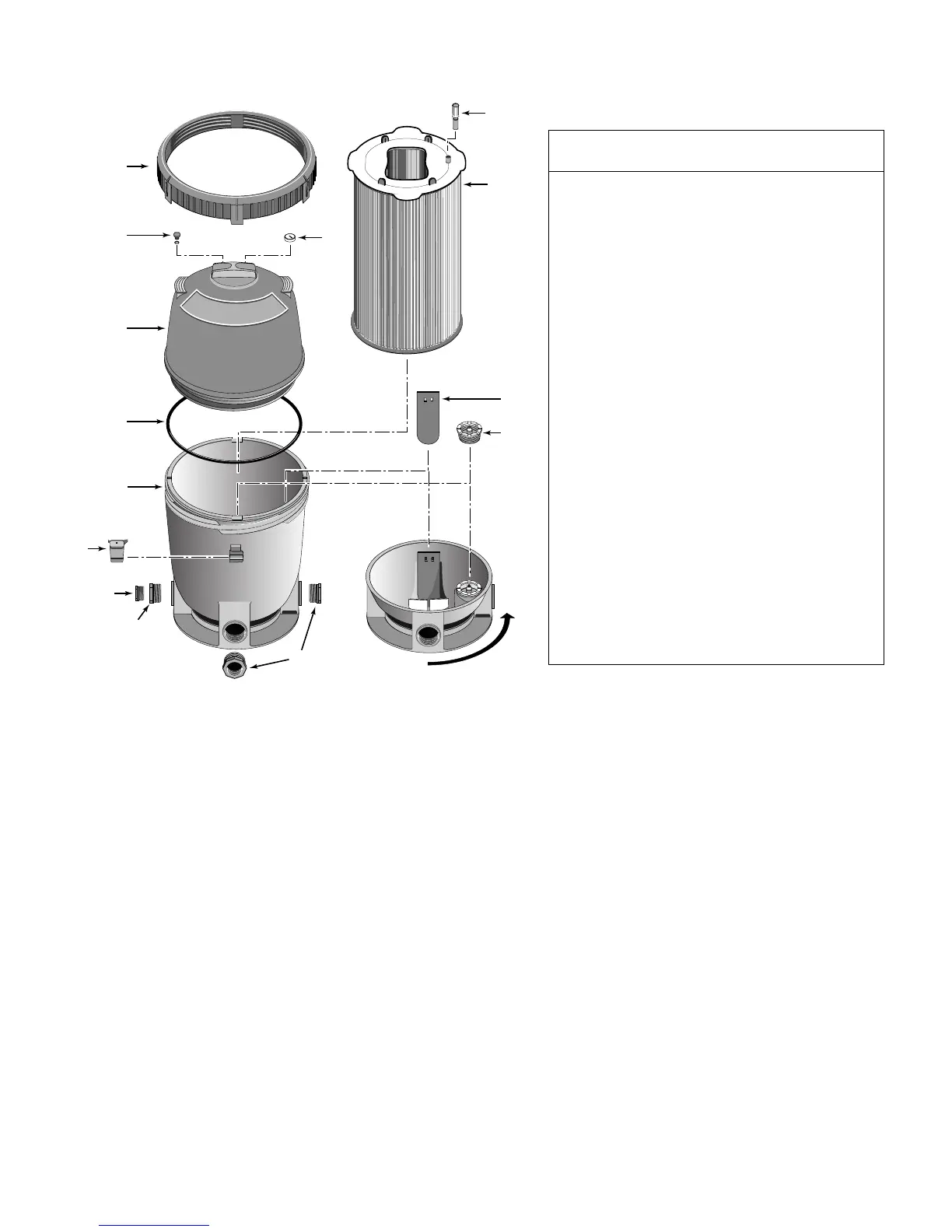

STA-RITE PLD50 - Repair Parts List; Component Identification; Optional and Accessory Parts

11
OUTLET
OUTLET
RELEASE
RELEASE
Base rotated 90° to show
check valves installed.
1
2
3
4
5
6
7
8
9
10
13
14
11
12
Key Part
No. Description Qty. Number
1 Posi-Lok™ ring 1 27001-0054
2 Air release valve assembly 1 25010-0200
3 Tank shell upper half* 1 27001-0020S
4 Tank O-ring 1 27001-0061S
5 Tank shell lower half 1 27001-0009S
6 Safety latch for ring 1 27001-0051
7 1-1/2” NPT plug w/O-ring 1 27001-0017S
8 Adapter fitting 1 24900-0510
9 2” x 1-1/2” Pipe reducer** 2 U78-820P
10 Pressure gauge*** 1 15060-0000T
11 Air bleed assembly 1 24800-0122
12 Filter module (PLD50) 1 27002-0030S
12 Filter module (PLD70) 1 27002-0036S
13 Flapper valve 1 27001-0011
14 Spring check valve** 1 27001-0130S
• Platform base§ 1 –
• Accessory package 1 27001-0140
• Decal, logo 1 27001-0041
• Decal, warning 1 27001-0042
• Decal, operating instr. 1 27003-0043
• Decal, nameplate (PLD50) 1 27003-0045
• Decal, nameplate (PLD70) 1 27003-0048
• Decal, Inlet 1 32165-4010
• Owner’s manual 1 S339
• Teflon tape*** 1 U97-58
• O-ring grease*** 1 34725-0013
• Not illustrated.
* Includes all decals and labels.
** Optional equipment.
*** Shipped in accessory package.
§ Included with purchase of complete system only.
REPAIR PARTS
