STA-RITE PTM50 - Parts and Diagrams; Exploded View Diagram; Repair Parts List

14
REPAIR PARTS LIST
Key Part No. Model Model Model Model
No. Description Used PTM50 PTM70 PTM100 PTM135
1 Pressure Gauge 1 15060-0000T 15060-0000T 15060-0000T 15060-0000T
1A Screen 1 WC8-72D WC8-72D WC8-72D WC8-72D
2 Air Release Valve Ass’y 1 25010-0200 25010-0200 25010-0200 25010-0200
2A O-Ring 1 U9-359 U9-359 U9-359 U9-359
3 Lid Ass’y (Includes Nos. 1, 1 25010-9201 25010-9201 25010-9202 25010-9201
1A, 2, and decals)
4 “O” Ring * 1 31935-0001 31935-0001 31935-0001 31935-0001
5 Clamp* 1 25010-9101 25010-9101 25010-9101 25010-9101
6 Lower Tank Body 1 25010-0001 25010-0001 25010-0001 25010-0001
7 Filter Element 1 WC108-56S2X WC108-57S2X WC108-58S2X WC108-70S2X
8 “O” Ring 1 WC9-3 WC9-3 WC9-3 WC9-3
9 Clamp 1 25010-9100 25010-9100 25010-9100 25010-9100
10 Base w/Pipe Plugs 1 WC104-78P WC104-78P WC104-78P WC104-78P
11 Pipe Plug 2 WC78-38T WC78-38T WC78-38T WC78-38T
12 Clamp Nut* 1 WC36-1 WC36-1 WC36-1 WC36-1
13 Air Bleed Tube 1 25010-0007 25010-0007 25010-0008 25010-0010
14 Air Bleed Filter 1 WC8-35 WC8-35 WC8-35 WC8-35
15 Clamp Knob 1 WC36-22 WC36-22 WC36-22 WC36-22
16 Plug 1 –– –– –– 36305-4032T
17 Upper Tank Body 1 –– –– –– 25005-0001
• Model Decal 1 32155-4040 32155-4041 32155-4042 32155-4066
• Warning Decal 1 32155-4049 32155-4049 32155-4049 32155-4049
• Instruction Decal 1 32155-4075 32155-4075 32155-4075 32155-4075
• Clamp Hazard Decal** 1 WC27-19 WC27-19 WC27-19 WC27-19
• Air Release Warning Decal** 2 WC27-23 WC27-23 WC27-23 WC27-23
• Decal: “DO NOT USE PIPE DOPE” 1 WC27-27 WC27-27 WC27-27 WC27-27
• Decal: “Top Clamp” 1 32165-4036 32165-4036 32165-4036 32165-4036
•Not Illustrated * Model PTM135 uses 2 ** Model PTM135 uses 3.
7
4
8
9
10
11
12
14
6
13
1
1A
2
3
2A
17
16
5
15
5
12
4
162 1193

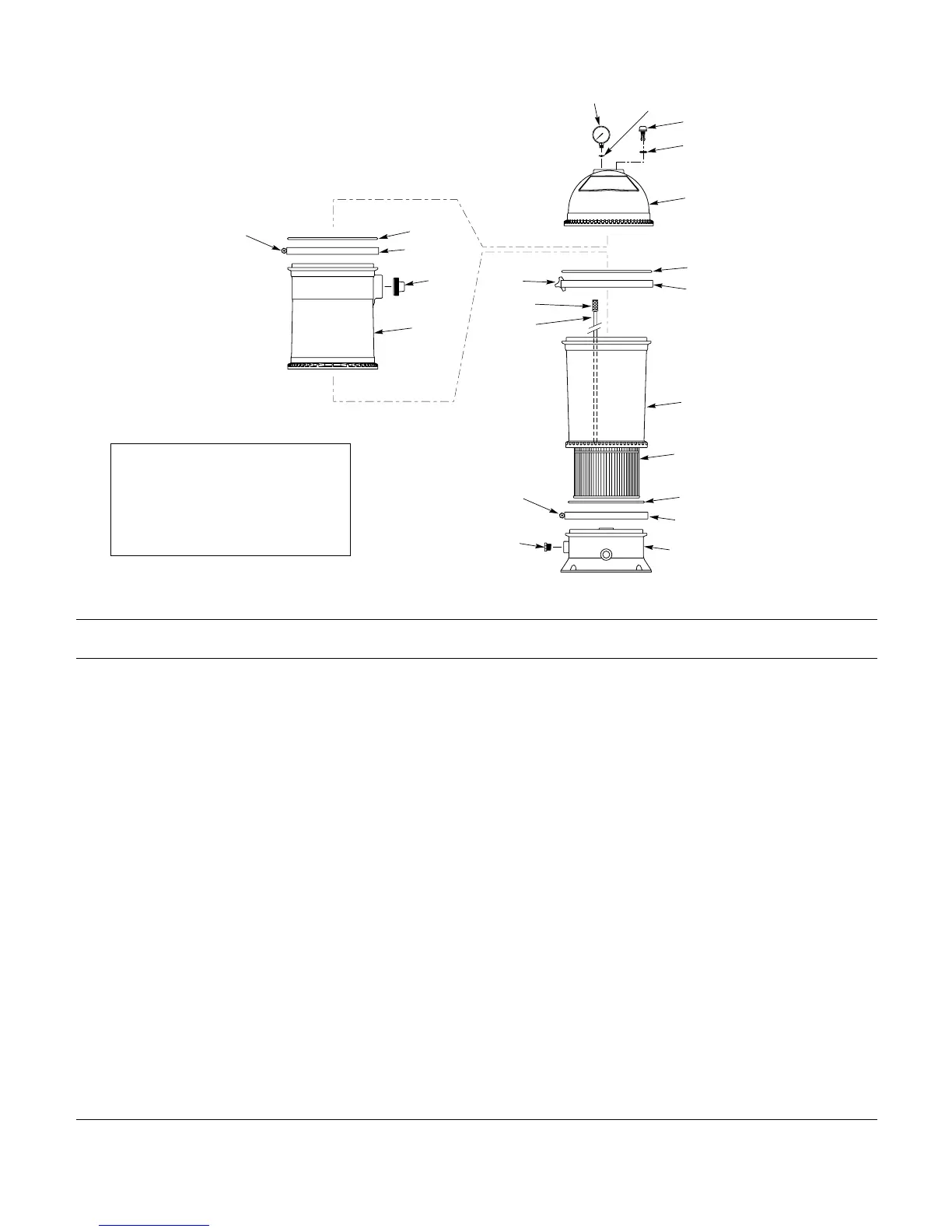

EXPLODED VIEW
NOTICE:
“O” Rings, key numbers 4 and 7,
are not interchangeable.
Clamps, key numbers 5 and 9,
are not interchangeable.
